Classification & Optimisation

ACTL3143 & ACTL5111 Deep Learning for Actuaries

Patrick Laub

Overview

In these slides, we’ll start by giving some demonstrations of training classification models that: 1) predict a binary outcome, then 2) predict a categorical outcome with > 2 options or levels.

Next, we’ll step into the maths of how these classification models make predictions, then go look at the high-level ideas of how to “train” them, then finally look at the maths of this training process.

Imports needed for these demos

import random
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns

from keras.models import Sequential
from keras.layers import Dense, Input
from keras.callbacks import EarlyStopping

from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import OneHotEncoder, StandardScaler
from sklearn.compose import make_column_transformer
from sklearn.impute import SimpleImputer
from sklearn.metrics import confusion_matrix, RocCurveDisplay, PrecisionRecallDisplay
from sklearn import set_config

set_config(transform_output="pandas")

Binary Classification

Lecture Outline

  • Binary Classification

  • Multiclass Classification

  • Dense Layers in Matrices

  • Optimisation

  • Loss and Derivatives

Stroke Prediction Data description

  1. id: unique identifier
  2. gender: “Male”, “Female” or “Other”
  3. age: age of the patient
  4. hypertension: 0 or 1 if the patient has hypertension
  5. heart_disease: 0 or 1 if the patient has any heart disease
  6. ever_married: “No” or “Yes”
  7. work_type: “children”, “Govt_jov”, “Never_worked”, “Private” or “Self-employed”
  1. Residence_type: “Rural” or “Urban”
  2. avg_glucose_level: average glucose level in blood
  3. bmi: body mass index
  4. smoking_status: “formerly smoked”, “never smoked”, “smokes” or “Unknown”
  5. stroke: 0 or 1 if the patient had a stroke

Source: Kaggle, Stroke Prediction Dataset.

Load up the (pre-)preprocessed data

PROCESSED_DATA_DIR = Path("stroke/processed")

X_train = pd.read_csv(PROCESSED_DATA_DIR / "x_train.csv")
X_val= pd.read_csv(PROCESSED_DATA_DIR / "x_val.csv")
X_test = pd.read_csv(PROCESSED_DATA_DIR / "x_test.csv")
y_train = pd.read_csv(PROCESSED_DATA_DIR / "y_train.csv")
y_val = pd.read_csv(PROCESSED_DATA_DIR / "y_val.csv")
y_test = pd.read_csv(PROCESSED_DATA_DIR / "y_test.csv")

X_train
gender_Female gender_Male ever_married_No ever_married_Yes Residence_type_Rural Residence_type_Urban work_type_Govt_job work_type_Never_worked work_type_Private work_type_Self-employed work_type_children smoking_status_Unknown smoking_status_formerly smoked smoking_status_never smoked smoking_status_smokes hypertension heart_disease age avg_glucose_level bmi
0 0.0 1.0 0.0 1.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 0 0 0.003896 -0.628661 0.005109
1 0.0 1.0 1.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0 0 -1.634096 -0.257346 -1.509505
2 0.0 1.0 1.0 0.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 0 0 -0.483075 -0.754323 -0.732780
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
3063 1.0 0.0 0.0 1.0 1.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 1 0 0.667946 -1.028773 0.561761
3064 1.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 0 0 -0.084644 -0.366428 0.548816
3065 0.0 1.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 0.0 0.0 0.0 0 0 -1.147126 -0.765668 -0.422090

3066 rows × 20 columns

Target variable

y_train
stroke
0 0
1 0
2 0
... ...
3063 0
3064 0
3065 0

3066 rows × 1 columns

classes, counts = np.unique(y_train.values.ravel(), return_counts=True)
print("Classes:", classes)
print("Counts:", counts)
Classes: [0 1]
Counts: [2909  157]

Setup a binary classification model

def create_model(seed=42):
    random.seed(seed)
    model = Sequential()
    model.add(Input(X_train.shape[1:]))
    model.add(Dense(32, "leaky_relu"))
    model.add(Dense(16, "leaky_relu"))
    model.add(Dense(1, "sigmoid"))
    return model
model = create_model()
model.summary()
Model: "sequential"

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃ Layer (type)                    ┃ Output Shape           ┃       Param # ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
│ dense (Dense)                   │ (None, 32)             │           672 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ dense_1 (Dense)                 │ (None, 16)             │           528 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ dense_2 (Dense)                 │ (None, 1)              │            17 │
└─────────────────────────────────┴────────────────────────┴───────────────┘

 Total params: 1,217 (4.75 KB)

 Trainable params: 1,217 (4.75 KB)

 Non-trainable params: 0 (0.00 B)

Fit the model

model = create_model()
model.compile("adam", "binary_crossentropy")
model.fit(X_train, y_train, epochs=5, verbose=2)
Epoch 1/5
96/96 - 0s - 2ms/step - loss: 0.2734
Epoch 2/5
96/96 - 0s - 2ms/step - loss: 0.1753
Epoch 3/5
96/96 - 0s - 2ms/step - loss: 0.1665
Epoch 4/5
96/96 - 0s - 2ms/step - loss: 0.1619
Epoch 5/5
96/96 - 0s - 2ms/step - loss: 0.1595
<keras.src.callbacks.history.History at 0x127102900>

Track accuracy as the model trains

model = create_model()
model.compile("adam", "binary_crossentropy", metrics=["accuracy"])
model.fit(X_train, y_train, epochs=5, verbose=2)
Epoch 1/5
96/96 - 0s - 2ms/step - accuracy: 0.9204 - loss: 0.2711
Epoch 2/5
96/96 - 0s - 2ms/step - accuracy: 0.9488 - loss: 0.1766
Epoch 3/5
96/96 - 0s - 2ms/step - accuracy: 0.9488 - loss: 0.1667
Epoch 4/5
96/96 - 0s - 2ms/step - accuracy: 0.9488 - loss: 0.1623
Epoch 5/5
96/96 - 0s - 2ms/step - accuracy: 0.9488 - loss: 0.1595
<keras.src.callbacks.history.History at 0x126e8afd0>

Run a long fit

model = create_model()
model.compile("adam", "binary_crossentropy", metrics=["accuracy"])
%time hist = model.fit(X_train, y_train, epochs=500, validation_data=(X_val, y_val), verbose=False)
CPU times: user 2min 3s, sys: 9.19 s, total: 2min 12s
Wall time: 2min 6s

Add early stopping

model = create_model()
model.compile("adam", "binary_crossentropy", metrics=["accuracy"])
es = EarlyStopping(restore_best_weights=True, patience=50, monitor="val_accuracy")
%time hist_es = model.fit(X_train, y_train, epochs=500, validation_data=(X_val, y_val), callbacks=[es], verbose=False)
print(f"Stopped after {len(hist_es.history['loss'])} epochs.")
CPU times: user 12.7 s, sys: 940 ms, total: 13.6 s
Wall time: 13 s
Stopped after 51 epochs.

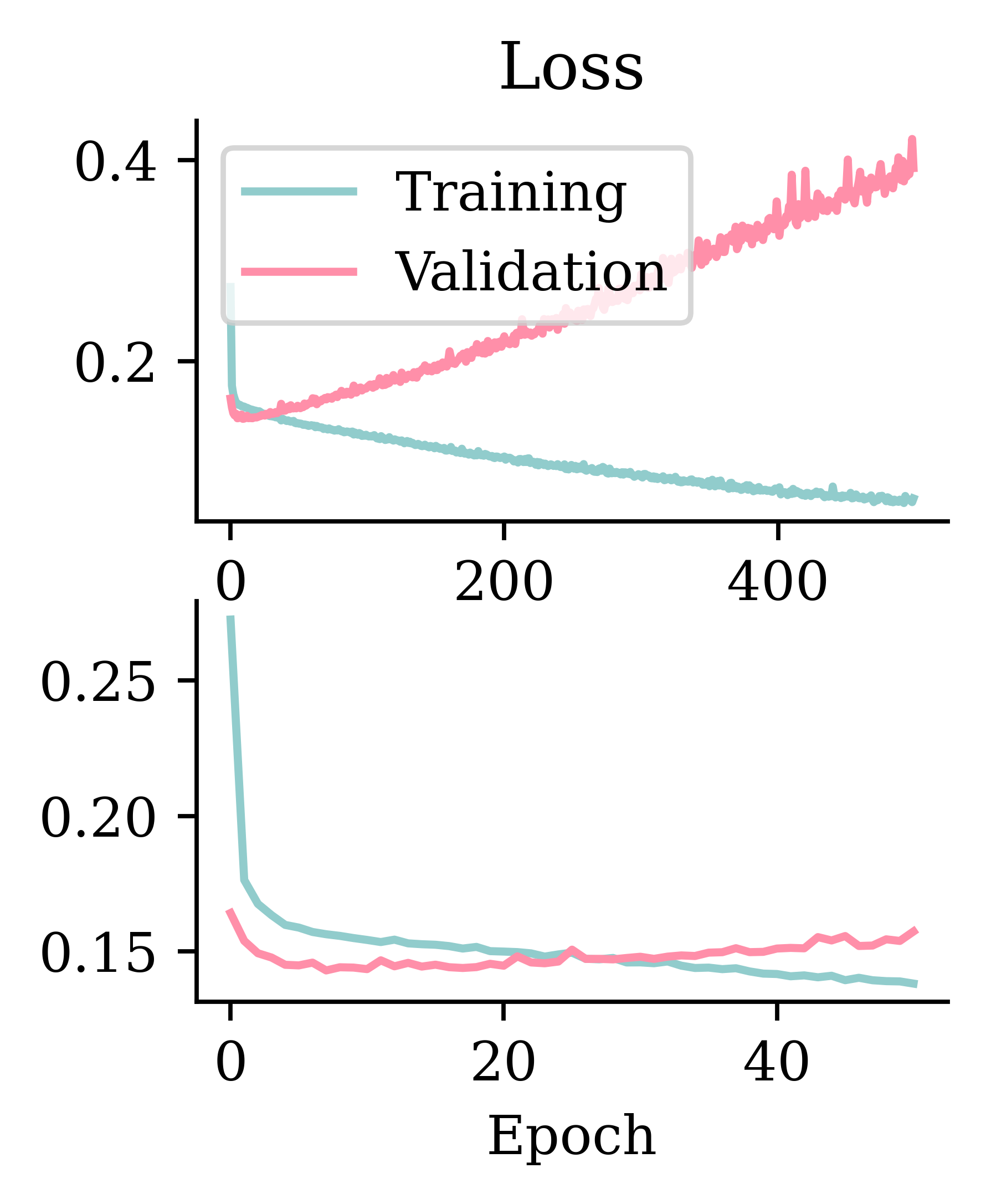

Fitting metrics

Code
matplotlib.pyplot.rcParams["figure.figsize"] = (2.5, 2.95)
plt.subplot(2, 1, 1)
plt.plot(hist.history["loss"])
plt.plot(hist.history["val_loss"])
plt.title("Loss")
plt.legend(["Training", "Validation"])

plt.subplot(2, 1, 2)
plt.plot(hist_es.history["loss"])
plt.plot(hist_es.history["val_loss"])
plt.xlabel("Epoch");

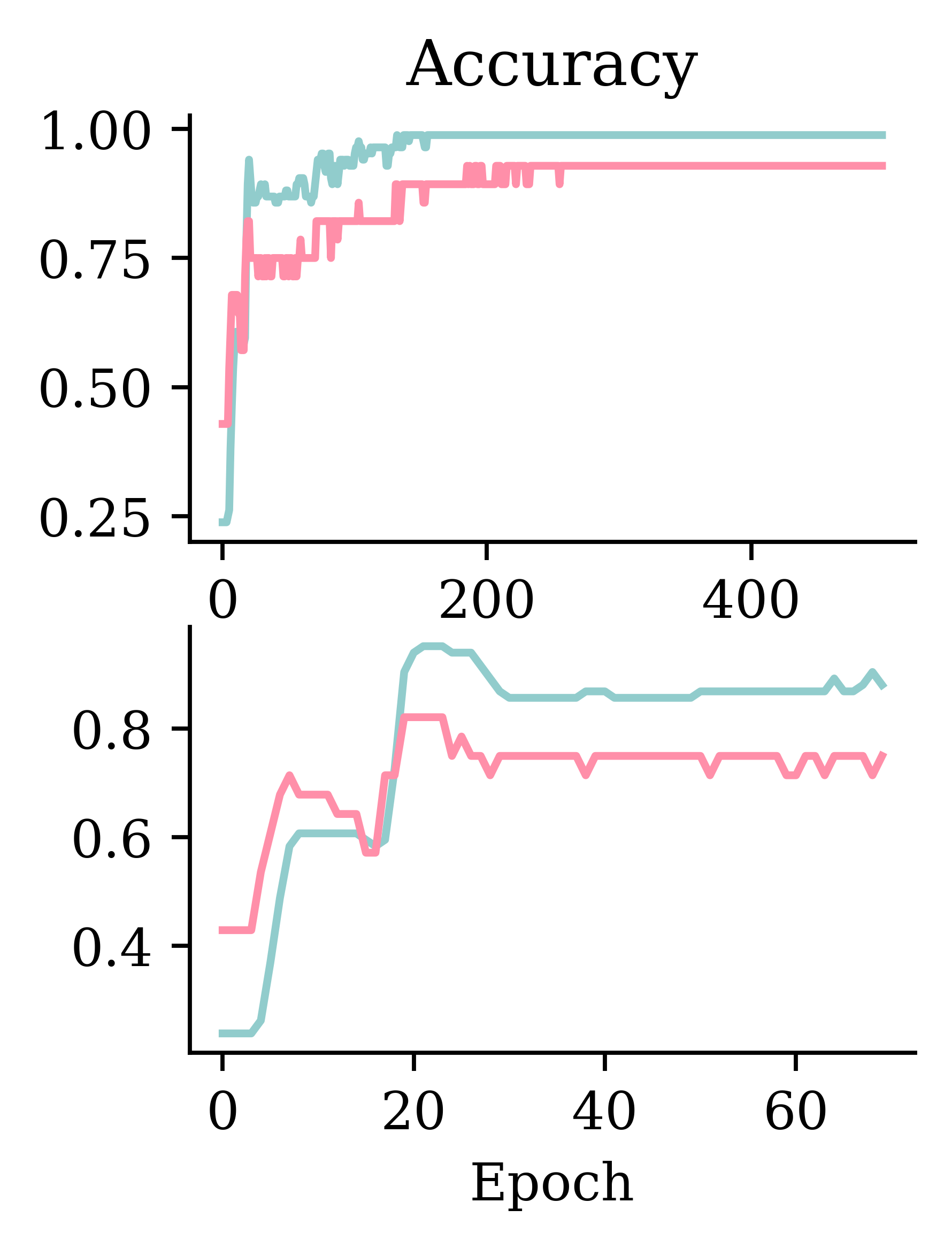

Code

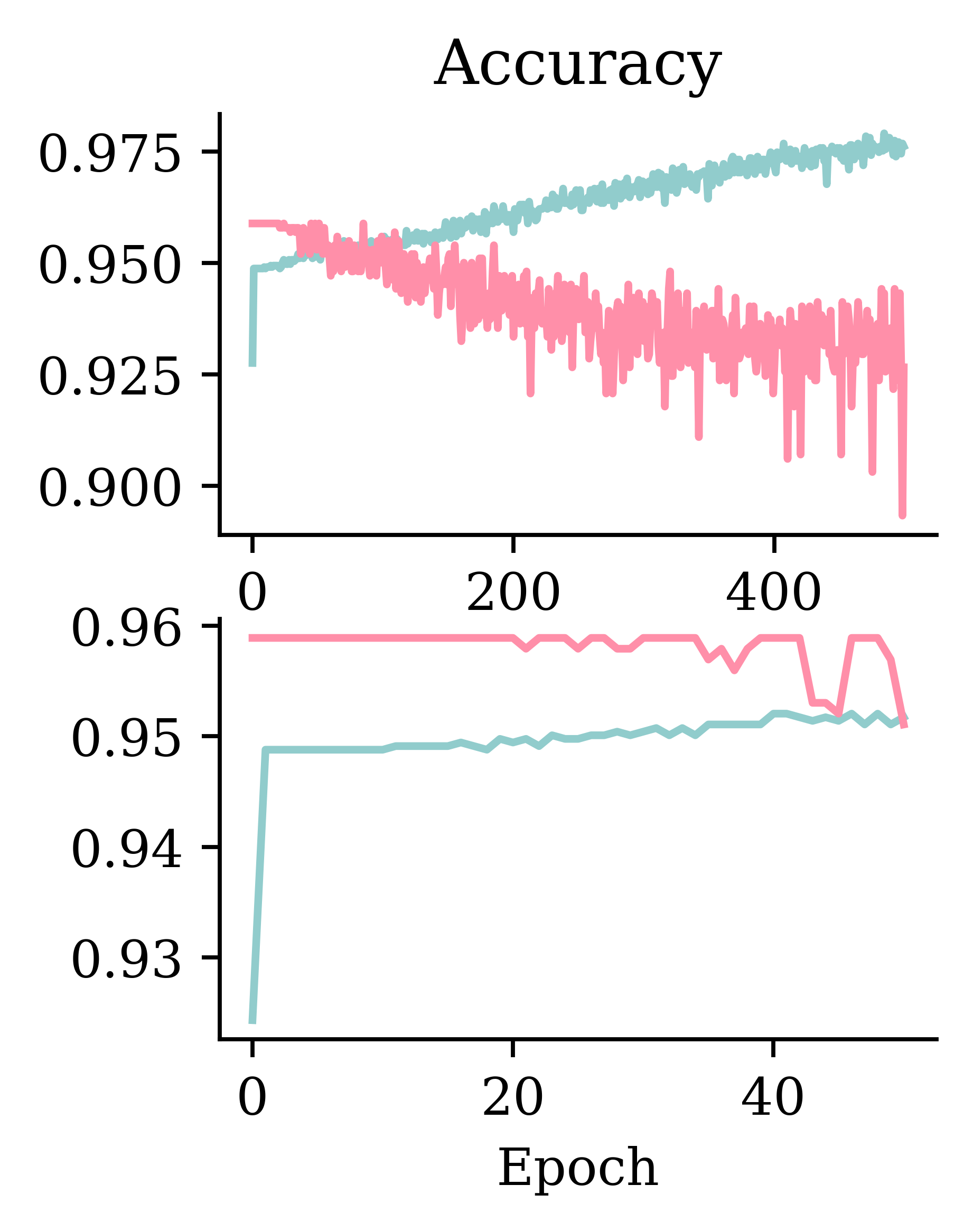

matplotlib.pyplot.rcParams["figure.figsize"] = (2.5, 3.25)
plt.subplot(2, 1, 1)
plt.plot(hist.history["accuracy"])
plt.plot(hist.history["val_accuracy"])
plt.title("Accuracy")

plt.subplot(2, 1, 2)
plt.plot(hist_es.history["accuracy"])
plt.plot(hist_es.history["val_accuracy"])
plt.xlabel("Epoch");

Add metrics, compile, and fit

model = create_model()

pr_auc = keras.metrics.AUC(curve="PR", name="pr_auc")
model.compile(optimizer="adam", loss="binary_crossentropy",
    metrics=[pr_auc, "accuracy", "auc"])

es = EarlyStopping(patience=50, restore_best_weights=True,
    monitor="val_pr_auc", verbose=1)
model.fit(X_train, y_train, callbacks=[es], epochs=1_000, verbose=0,
  validation_data=(X_val, y_val));
Epoch 81: early stopping
Restoring model weights from the end of the best epoch: 31.
model.evaluate(X_val, y_val, verbose=0)
[0.14898666739463806,
 0.12857568264007568,
 0.9569471478462219,
 0.8119411468505859]

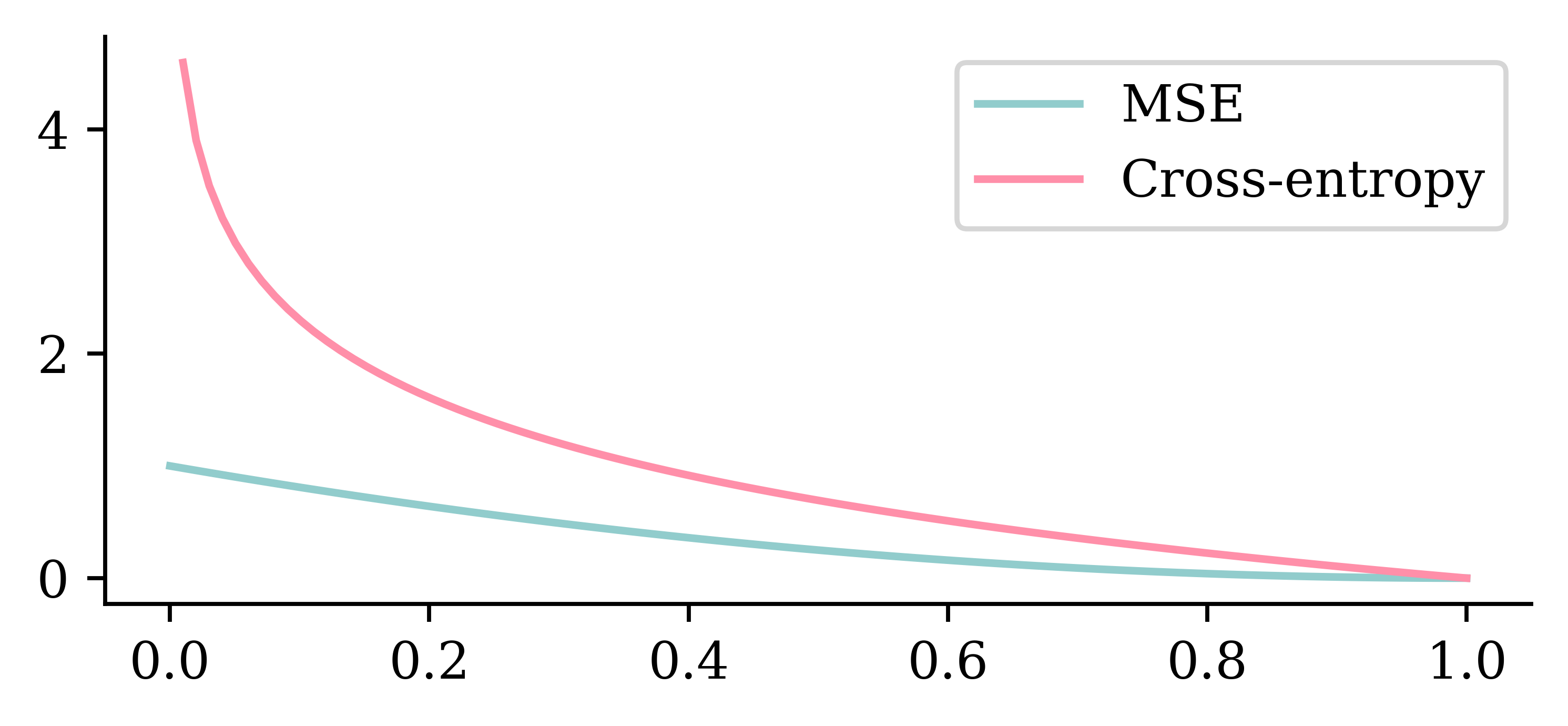

Why use cross-entropy loss?

p = np.linspace(0, 1, 100)
plt.plot(p, (1 - p) ** 2)
plt.plot(p, -np.log(p))
plt.legend(["MSE", "Cross-entropy"]);

Overweight the minority class

model = create_model()

pr_auc = keras.metrics.AUC(curve="PR", name="pr_auc")
model.compile(optimizer="adam", loss="binary_crossentropy",
    metrics=[pr_auc, "accuracy", "auc"])

es = EarlyStopping(patience=50, restore_best_weights=True,
    monitor="val_pr_auc", verbose=1)
model.fit(X_train, y_train.to_numpy(), callbacks=[es], epochs=1_000, verbose=0,
  validation_data=(X_val, y_val), class_weight={0: 1, 1: 10});
Epoch 64: early stopping
Restoring model weights from the end of the best epoch: 14.
model.evaluate(X_val, y_val, verbose=0)
[0.3523019552230835,
 0.13380154967308044,
 0.7896282076835632,
 0.8259596824645996]
model.evaluate(X_test, y_test, verbose=0)
[0.36996063590049744,
 0.15842117369174957,
 0.7954990267753601,
 0.8060390949249268]

Classification Metrics

y_pred = model.predict(X_test, verbose=0)

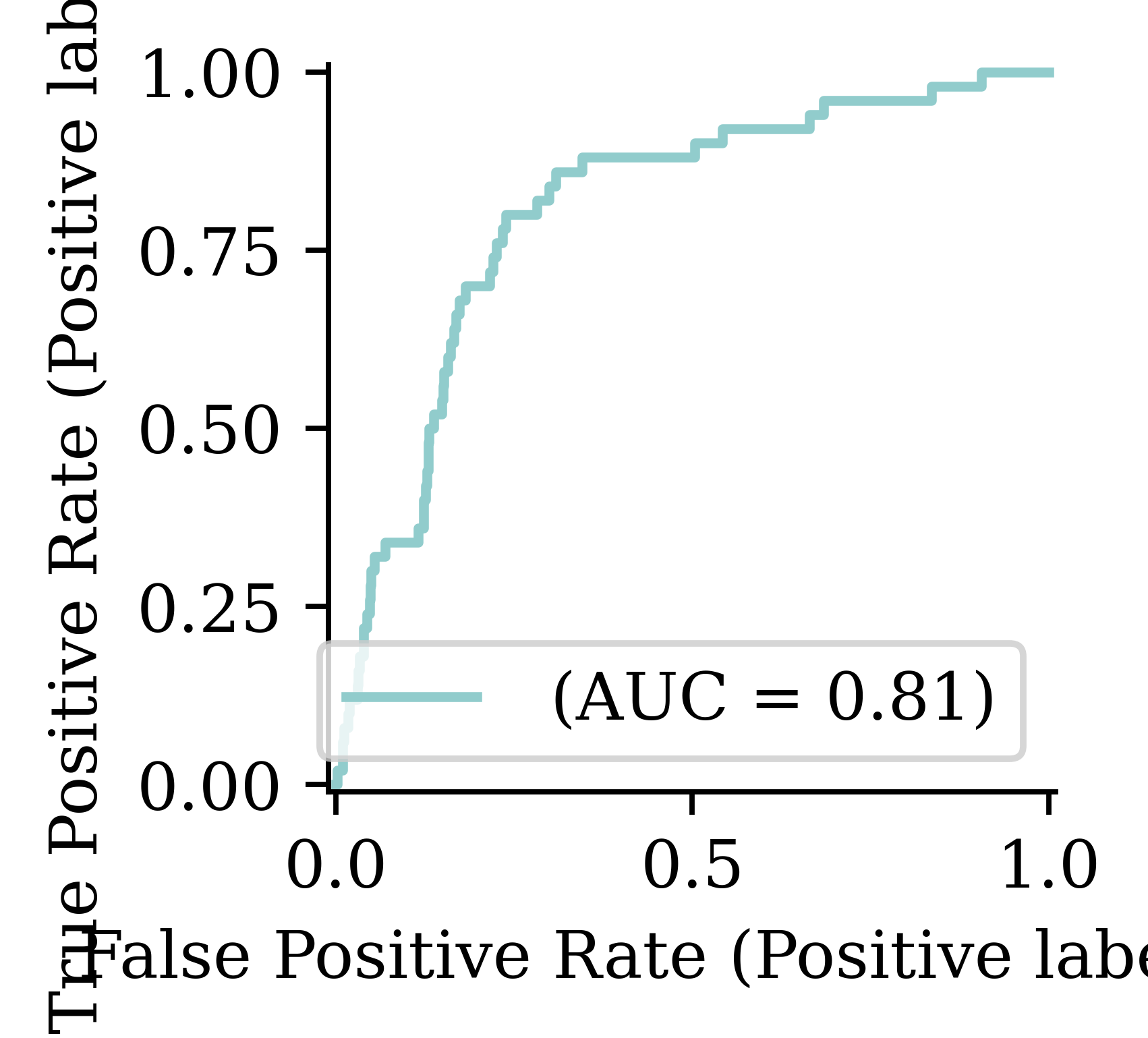

RocCurveDisplay.from_predictions(y_test, y_pred, name="");

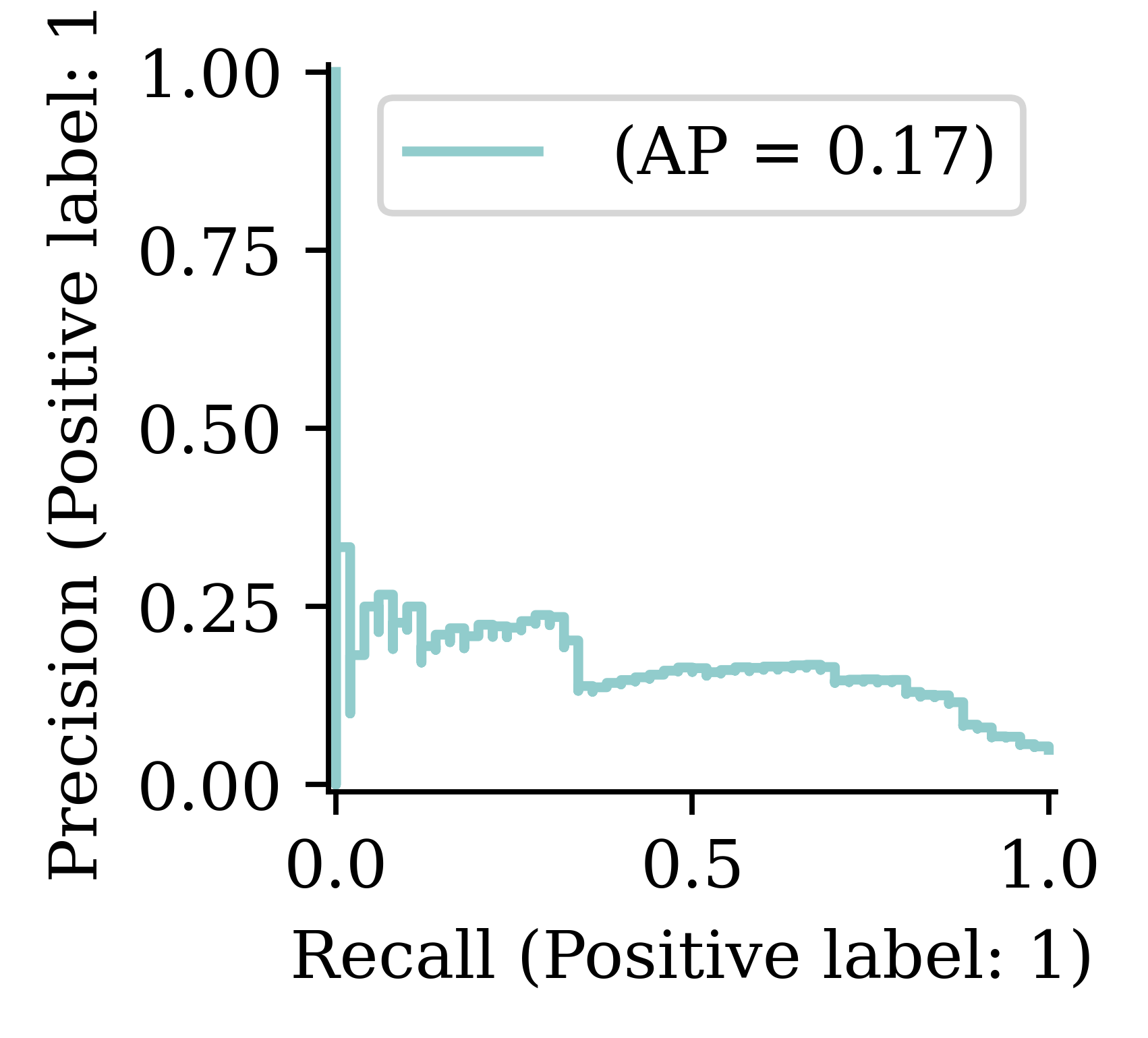

PrecisionRecallDisplay.from_predictions(y_test, y_pred, name=""); plt.legend(loc="upper right");

y_pred_stroke = y_pred > 0.5
confusion_matrix(y_test, y_pred_stroke)
array([[778, 194],
       [ 15,  35]])
y_pred_stroke = y_pred > 0.3
confusion_matrix(y_test, y_pred_stroke)
array([[647, 325],
       [  7,  43]])

Multiclass Classification

Lecture Outline

  • Binary Classification

  • Multiclass Classification

  • Dense Layers in Matrices

  • Optimisation

  • Loss and Derivatives

Iris dataset

iris = load_iris()
names = ["SepalLength", "SepalWidth", "PetalLength", "PetalWidth"]
features = pd.DataFrame(iris.data, columns=names)
features
SepalLength SepalWidth PetalLength PetalWidth
0 5.1 3.5 1.4 0.2
1 4.9 3.0 1.4 0.2
... ... ... ... ...
148 6.2 3.4 5.4 2.3
149 5.9 3.0 5.1 1.8

150 rows × 4 columns

Target variable

iris.target_names
array(['setosa', 'versicolor', 'virginica'], dtype='<U10')
iris.target[:8]
array([0, 0, 0, 0, 0, 0, 0, 0])
target = iris.target
target = target.reshape(-1, 1)
target[:8]
array([[0],
       [0],
       [0],
       [0],
       [0],
       [0],
       [0],
       [0]])
classes, counts = np.unique(
        target,
        return_counts=True
)
print(classes)
print(counts)
[0 1 2]
[50 50 50]
iris.target_names[
  target[[0, 30, 60]]
]
array([['setosa'],
       ['setosa'],
       ['versicolor']], dtype='<U10')

Split the data into train and test

X_train, X_test, y_train, y_test = train_test_split(features, target, random_state=24)
X_train
SepalLength SepalWidth PetalLength PetalWidth
53 5.5 2.3 4.0 1.3
58 6.6 2.9 4.6 1.3
95 5.7 3.0 4.2 1.2
... ... ... ... ...
145 6.7 3.0 5.2 2.3
87 6.3 2.3 4.4 1.3
131 7.9 3.8 6.4 2.0

112 rows × 4 columns

X_test.shape, y_test.shape
((38, 4), (38, 1))

A basic classifier network

A basic network for classifying into three categories.

Source: Marcus Lautier (2022).

Create a classifier model

NUM_FEATURES = len(features.columns)
NUM_CATS = len(np.unique(target))

print("Number of features:", NUM_FEATURES)
print("Number of categories:", NUM_CATS)
Number of features: 4
Number of categories: 3

Make a function to return a Keras model:

def build_model(seed=42):
    random.seed(seed)
    return Sequential([
        Dense(30, activation="relu"),
        Dense(NUM_CATS, activation="softmax")
    ])

Fit the model

model = build_model()
model.compile("adam", "sparse_categorical_crossentropy")

model.fit(X_train, y_train, epochs=5, verbose=2);
Epoch 1/5
4/4 - 0s - 2ms/step - loss: 1.3920
Epoch 2/5
4/4 - 0s - 2ms/step - loss: 1.2912
Epoch 3/5
4/4 - 0s - 2ms/step - loss: 1.2196
Epoch 4/5
4/4 - 0s - 2ms/step - loss: 1.1576
Epoch 5/5
4/4 - 0s - 2ms/step - loss: 1.1084

Track accuracy as the model trains

model = build_model()
model.compile("adam", "sparse_categorical_crossentropy", metrics=["accuracy"])
model.fit(X_train, y_train, epochs=5, verbose=2);
Epoch 1/5
4/4 - 0s - 2ms/step - accuracy: 0.2857 - loss: 1.3930
Epoch 2/5
4/4 - 0s - 2ms/step - accuracy: 0.2857 - loss: 1.2970
Epoch 3/5
4/4 - 0s - 2ms/step - accuracy: 0.2857 - loss: 1.2203
Epoch 4/5
4/4 - 0s - 2ms/step - accuracy: 0.2946 - loss: 1.1596
Epoch 5/5
4/4 - 0s - 2ms/step - accuracy: 0.3393 - loss: 1.1067

Run a long fit

model = build_model()
model.compile("adam", "sparse_categorical_crossentropy", \
        metrics=["accuracy"])
%time hist = model.fit(X_train, y_train, epochs=500, \
        validation_split=0.25, verbose=False)
CPU times: user 3.84 s, sys: 466 ms, total: 4.31 s
Wall time: 4 s

Evaluation now returns both loss and accuracy.

model.evaluate(X_test, y_test, verbose=False)
[0.08639740198850632, 0.9736841917037964]

Add early stopping

model_es = build_model()
model_es.compile("adam", "sparse_categorical_crossentropy", \
        metrics=["accuracy"])

es = EarlyStopping(restore_best_weights=True, patience=50,
        monitor="val_accuracy")
%time hist_es = model_es.fit(X_train, y_train, epochs=500, \
        validation_split=0.25, callbacks=[es], verbose=False);

print(f"Stopped after {len(hist_es.history['loss'])} epochs.")
CPU times: user 533 ms, sys: 65.6 ms, total: 599 ms
Wall time: 555 ms
Stopped after 70 epochs.

Evaluation on test set:

model_es.evaluate(X_test, y_test, verbose=False)
[0.8077937960624695, 0.9210526347160339]

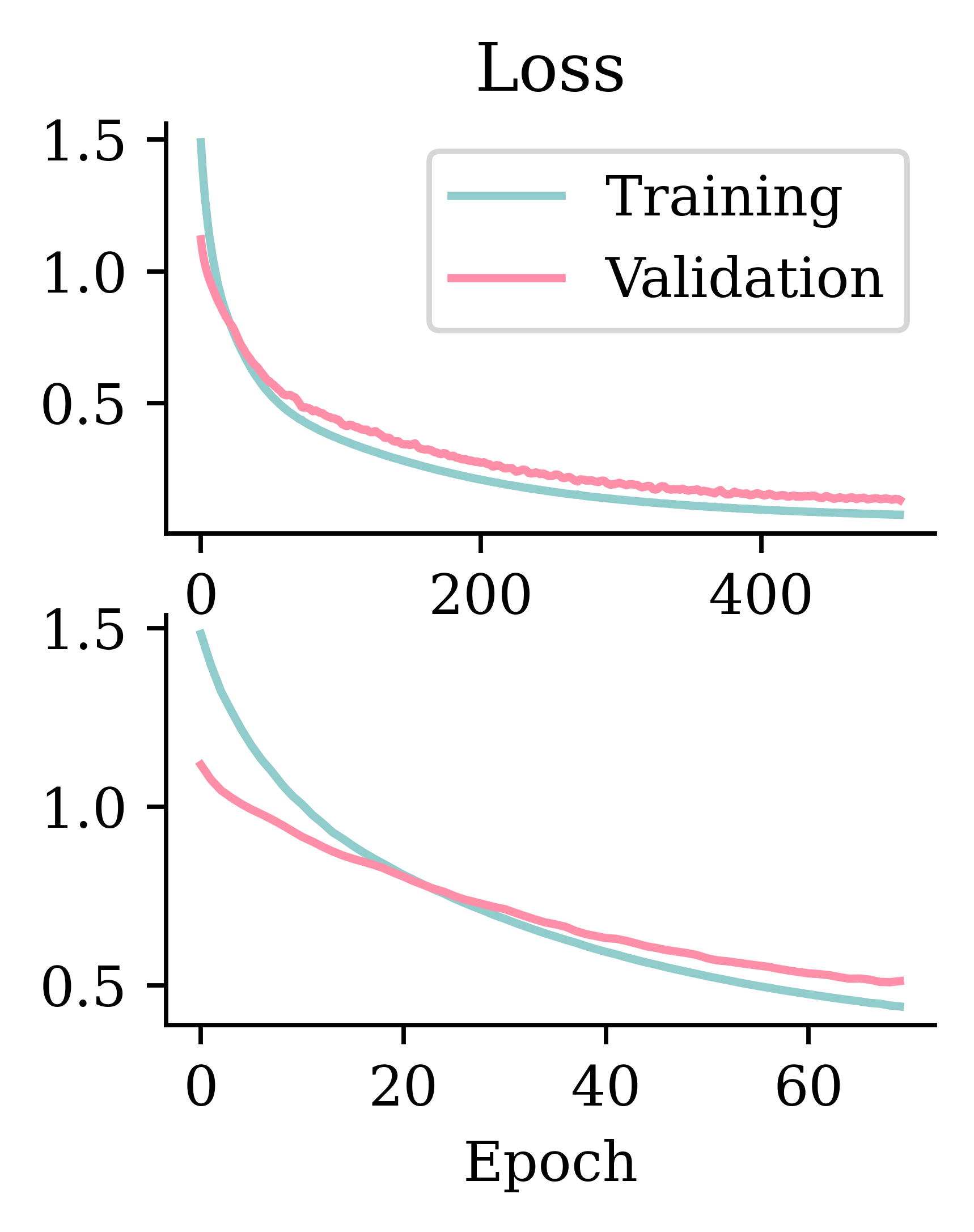

Fitting metrics

Code
matplotlib.pyplot.rcParams["figure.figsize"] = (2.5, 2.95)
plt.subplot(2, 1, 1)
plt.plot(hist.history["loss"])
plt.plot(hist.history["val_loss"])
plt.title("Loss")
plt.legend(["Training", "Validation"])

plt.subplot(2, 1, 2)
plt.plot(hist_es.history["loss"])
plt.plot(hist_es.history["val_loss"])
plt.xlabel("Epoch");

Code
matplotlib.pyplot.rcParams["figure.figsize"] = (2.5, 3.25)
plt.subplot(2, 1, 1)
plt.plot(hist.history["accuracy"])
plt.plot(hist.history["val_accuracy"])
plt.title("Accuracy")

plt.subplot(2, 1, 2)
plt.plot(hist_es.history["accuracy"])
plt.plot(hist_es.history["val_accuracy"])
plt.xlabel("Epoch");

What is the softmax activation?

It creates a “probability” vector: \text{Softmax}(\boldsymbol{x})_i = \frac{\mathrm{e}^{x_i}}{\sum_j \mathrm{e}^{x_j}} \,.

In NumPy:

out = np.array([5, -1, 6])
(np.exp(out) / np.exp(out).sum()).round(3)
array([0.27, 0.  , 0.73])

In Keras:

out = keras.ops.convert_to_tensor([[5.0, -1.0, 6.0]])
keras.ops.round(keras.ops.softmax(out), 3)
tensor([[0.2690, 0.0010, 0.7310]])

Prediction using classifiers

y_test[:4]
array([[2],
       [2],
       [1],
       [1]])
y_pred = model.predict(X_test.head(4), verbose=0)
y_pred
array([[2.02e-06, 7.64e-02, 9.24e-01],
       [1.86e-07, 1.62e-03, 9.98e-01],
       [1.44e-02, 9.76e-01, 1.00e-02],
       [2.80e-03, 8.50e-01, 1.48e-01]], dtype=float32)
# Add 'keepdims=True' to get a column vector.
np.argmax(y_pred, axis=1)
array([2, 2, 1, 1])
iris.target_names[np.argmax(y_pred, axis=1)]
array(['virginica', 'virginica', 'versicolor', 'versicolor'], dtype='<U10')

Summary: Classification models in Keras

If the number of classes is c, then:

Target Output Layer Loss Function
Binary
(c=2)		 1 neuron with sigmoid activation Binary Cross-Entropy
Multi-class
(c > 2)		 c neurons with softmax activation Categorical Cross-Entropy

Summary: Optionally output logits

If the number of classes is c, then:

Target Output Layer Loss Function
Binary
(c=2)		 1 neuron with linear activation Binary Cross-Entropy (from_logits=True)
Multi-class
(c > 2)		 c neurons with linear activation Categorical Cross-Entropy (from_logits=True)

Summary: Code examples

Binary

model = Sequential([
  # Skipping the earlier layers
  Dense(1, activation="sigmoid")
])
model.compile(loss="binary_crossentropy")

Multi-class

model = Sequential([
  # Skipping the earlier layers
  Dense(n_classes, activation="softmax")
])
model.compile(loss="sparse_categorical_crossentropy")

Binary (logits)

model = Sequential([
  # Skipping the earlier layers
  Dense(1, activation="linear")
])
loss = BinaryCrossentropy(from_logits=True)
model.compile(loss=loss)

Multi-class (logits)

model = Sequential([
  # Skipping the earlier layers
  Dense(n_classes, activation="linear")
])
loss = SparseCategoricalCrossentropy(from_logits=True)
model.compile(loss=loss)

Both BinaryCrossentropy and SparseCategoricalCrossentropy live in keras.losses.

Dense Layers in Matrices

Lecture Outline

  • Binary Classification

  • Multiclass Classification

  • Dense Layers in Matrices

  • Optimisation

  • Loss and Derivatives

Logistic regression

Observations: \mathbf{x}_{i,\bullet} \in \mathbb{R}^{2}.

Target: y_i \in \{0, 1\}.

Predict: \hat{y}_i = \mathbb{P}(Y_i = 1).


The model

For \mathbf{x}_{i,\bullet} = (x_{i,1}, x_{i,2}): z_i = x_{i,1} w_1 + x_{i,2} w_2 + b

\hat{y}_i = \sigma(z_i) = \frac{1}{1 + \mathrm{e}^{-z_i}} .

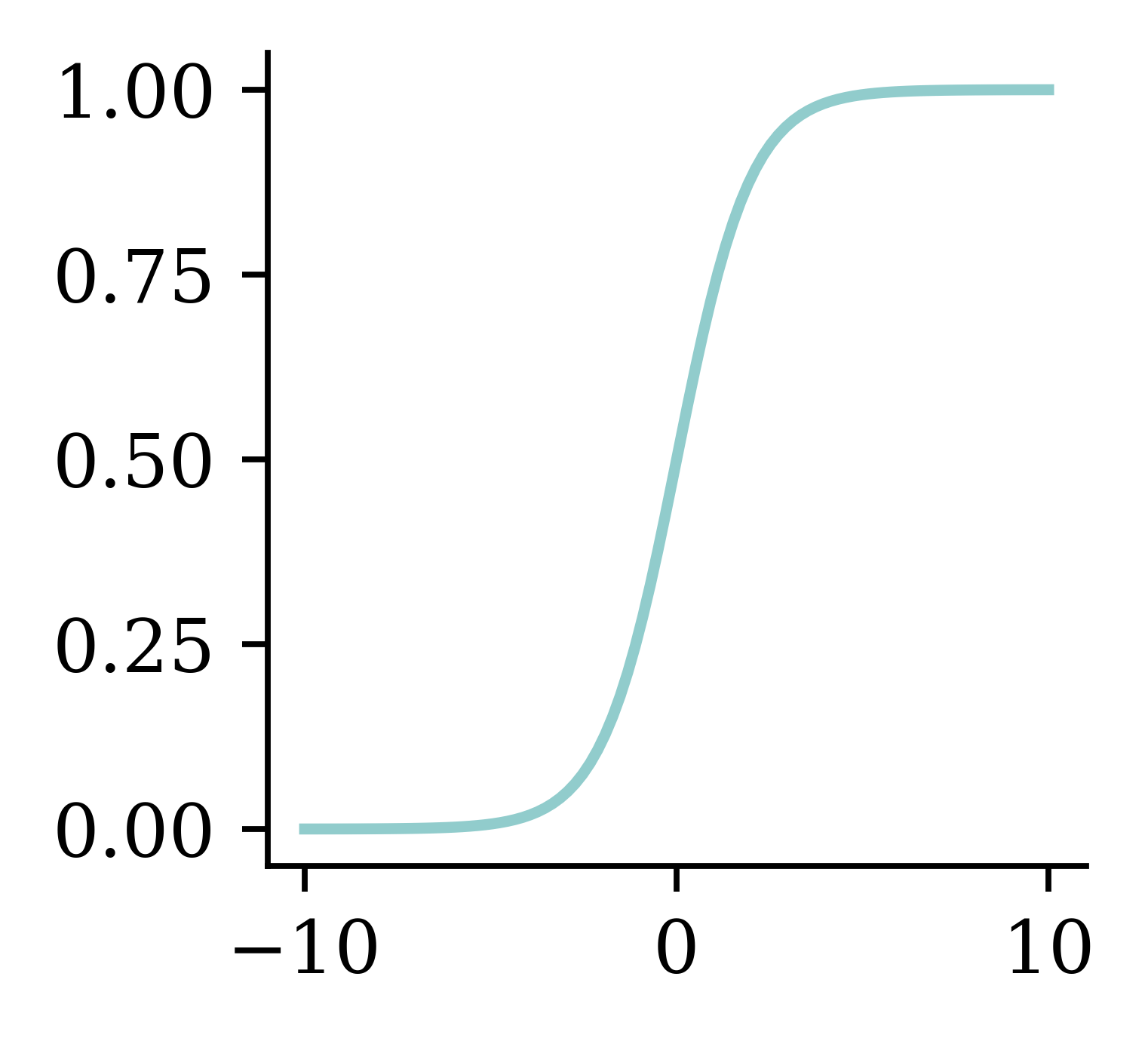

x = np.linspace(-10, 10, 100)
y = 1/(1 + np.exp(-x))
plt.plot(x, y);

Multiple observations

data = pd.DataFrame({"x_1": [1, 3, 5], "x_2": [2, 4, 6], "y": [0, 1, 1]})
data
x_1 x_2 y
0 1 2 0
1 3 4 1
2 5 6 1

Let w_1 = 1, w_2 = 2 and b = -10.

w_1 = 1; w_2 = 2; b = -10
data["x_1"] * w_1 + data["x_2"] * w_2 + b
0   -5
1    1
2    7
dtype: int64

Matrix notation

Have \mathbf{X} \in \mathbb{R}^{3 \times 2}.

X_df = data[["x_1", "x_2"]]
X = X_df.to_numpy()
X
array([[1, 2],
       [3, 4],
       [5, 6]])

Let \mathbf{w} = (w_1, w_2)^\top \in \mathbb{R}^{2 \times 1}.

w = np.array([[1], [2]])
w
array([[1],
       [2]])

\mathbf{z} = \mathbf{X} \mathbf{w} + b , \quad \mathbf{a} = \sigma(\mathbf{z})

z = X.dot(w) + b
z
array([[-5],
       [ 1],
       [ 7]])
1 / (1 + np.exp(-z))
array([[0.01],
       [0.73],
       [1.  ]])

Using a softmax output

Observations: \mathbf{x}_{i,\bullet} \in \mathbb{R}^{2}. Predict: \hat{y}_{i,j} = \mathbb{P}(Y_i = j).

Target: \mathbf{y}_{i,\bullet} \in \{(1, 0), (0, 1)\}.

The model: For \mathbf{x}_{i,\bullet} = (x_{i,1}, x_{i,2}) \begin{aligned} z_{i,1} &= x_{i,1} w_{1,1} + x_{i,2} w_{2,1} + b_1 , \\ z_{i,2} &= x_{i,1} w_{1,2} + x_{i,2} w_{2,2} + b_2 . \end{aligned}

\begin{aligned} \hat{y}_{i,1} &= \text{Softmax}_1(\mathbf{z}_i) = \frac{\mathrm{e}^{z_{i,1}}}{\mathrm{e}^{z_{i,1}} + \mathrm{e}^{z_{i,2}}} , \\ \hat{y}_{i,2} &= \text{Softmax}_2(\mathbf{z}_i) = \frac{\mathrm{e}^{z_{i,2}}}{\mathrm{e}^{z_{i,1}} + \mathrm{e}^{z_{i,2}}} . \end{aligned}

Multiple observations

data
x_1 x_2 y_1 y_2
0 1 2 1 0
1 3 4 0 1
2 5 6 0 1

Choose:

w_{1,1} = 1, w_{2,1} = 2,

w_{1,2} = 3, w_{2,2} = 4, and

b_1 = -10, b_2 = -20.

w_11 = 1; w_21 = 2; b_1 = -10
w_12 = 3; w_22 = 4; b_2 = -20
data["x_1"] * w_11 + data["x_2"] * w_21 + b_1
0   -5
1    1
2    7
dtype: int64

Matrix notation

Have \mathbf{X} \in \mathbb{R}^{3 \times 2}.

X
array([[1, 2],
       [3, 4],
       [5, 6]])

\mathbf{W}\in \mathbb{R}^{2\times2}, \mathbf{b}\in \mathbb{R}^{2}

W = np.array([[1, 3], [2, 4]])
b = np.array([-10, -20])
display(W); b
array([[1, 3],
       [2, 4]])
array([-10, -20])

\mathbf{Z} = \mathbf{X} \mathbf{W} + \mathbf{b} , \quad \mathbf{A} = \text{Softmax}(\mathbf{Z}) .

Z = X @ W + b
Z
array([[-5, -9],
       [ 1,  5],
       [ 7, 19]])
np.exp(Z) / np.sum(np.exp(Z),
  axis=1, keepdims=True)
array([[9.82e-01, 1.80e-02],
       [1.80e-02, 9.82e-01],
       [6.14e-06, 1.00e+00]])

Optimisation

Lecture Outline

  • Binary Classification

  • Multiclass Classification

  • Dense Layers in Matrices

  • Optimisation

  • Loss and Derivatives

Gradient-based learning

In-class demo

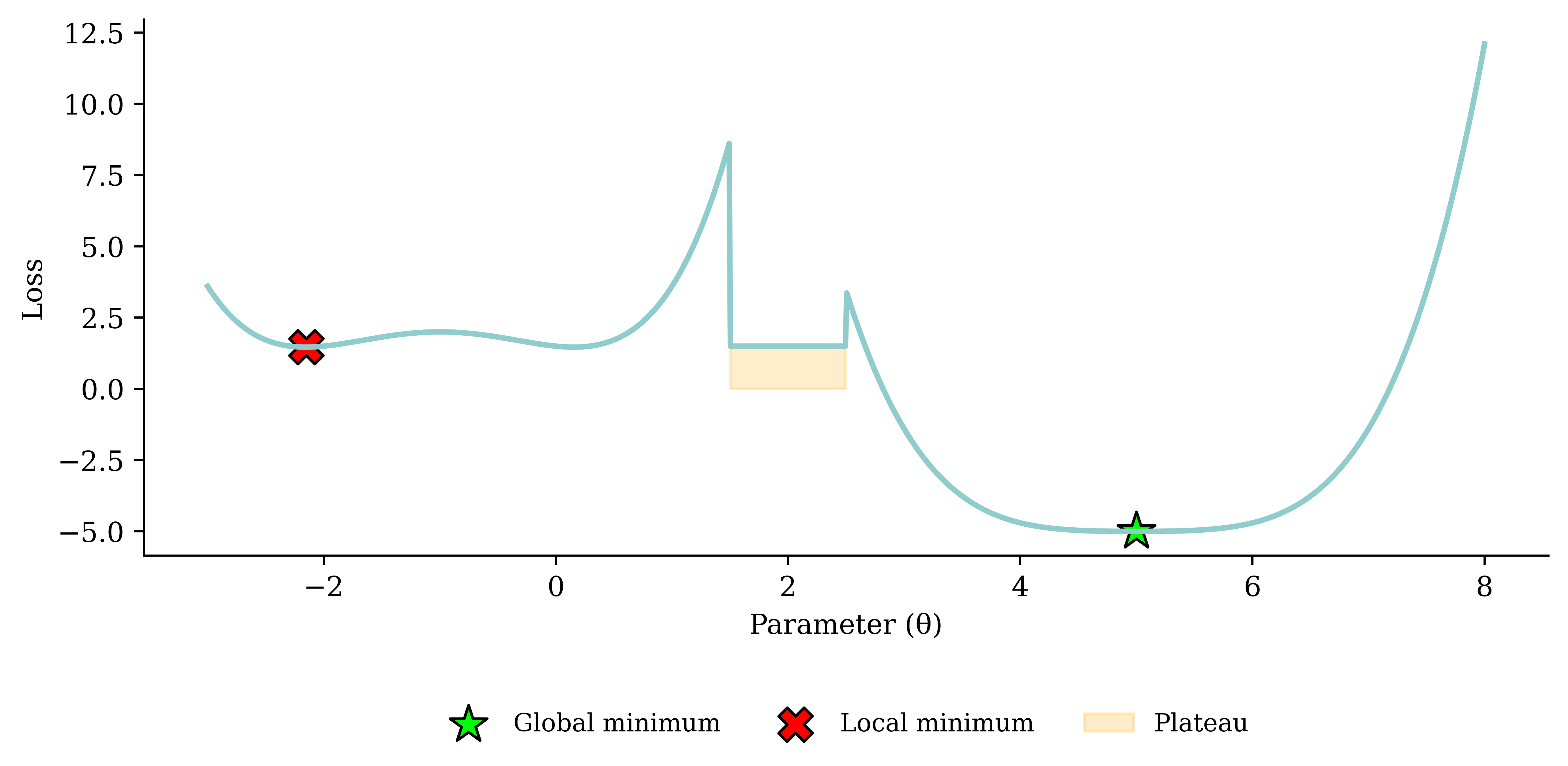

Gradient descent pitfalls

Go over all the training data


Called batch gradient descent.


for i in range(num_epochs):
    gradient = evaluate_gradient(loss_function, data, weights)
    weights = weights - learning_rate * gradient

Pick a random training example


Called stochastic gradient descent.


for i in range(num_epochs):
    rnd.shuffle(data)
    for example in data:
        gradient = evaluate_gradient(loss_function, example, weights)
        weights = weights - learning_rate * gradient

Take a group of training examples


Called mini-batch gradient descent.


for i in range(num_epochs):
    rnd.shuffle(data)
    for b in range(num_batches):
        batch = data[b * batch_size : (b + 1) * batch_size]
        gradient = evaluate_gradient(loss_function, batch, weights)
        weights = weights - learning_rate * gradient

Mini-batch gradient descent

Why?

  1. Because we have to (data is too big to shove it all in a single batch)
  2. Because it is faster (lots of quick noisy steps takes longer than a few slow super accurate steps)
  3. The noise helps us jump out of local minima

Noisy gradient means we might jump out of a local minimum.

Learning rates

Gradient descent with different learning rates

Source: Melissa Renard (2025), adapted from Jeremy Jordan (2018), Setting the learning rate of your neural network.

Learning rates #2

Changing the learning rates for a robot arm.

Source: Matt Henderson (2021), X post

Learning rate schedule

Learning curves for various learning rates

In training the learning rate may be tweaked manually.

Source: Melissa Renard (2025), adapted from Deep Learning for Computer Vision - Stanford Spring 2025

Loss and Derivatives

Lecture Outline

  • Binary Classification

  • Multiclass Classification

  • Dense Layers in Matrices

  • Optimisation

  • Loss and Derivatives

Example: linear regression

\hat{y}(x) = w x + b

For some observation \{ x_i, y_i \}, the squared error loss is

\text{Loss}_i = (\hat{y}(x_i) - y_i)^2

For a batch of the first n observations the MSE loss is

\text{Loss}_{1:n} = \frac{1}{n} \sum_{i=1}^n (\hat{y}(x_i) - y_i)^2

Derivatives

Since \hat{y}(x) = w x + b,

\frac{\partial \hat{y}(x)}{\partial w} = x \text{ and } \frac{\partial \hat{y}(x)}{\partial b} = 1 .

As \text{Loss}_i = (\hat{y}(x_i) - y_i)^2, we know \frac{\partial \text{Loss}_i}{\partial \hat{y}(x_i) } = 2 (\hat{y}(x_i) - y_i) .

Chain rule

\frac{\partial \text{Loss}_i}{\partial \hat{y}(x_i) } = 2 (\hat{y}(x_i) - y_i), \,\, \frac{\partial \hat{y}(x)}{\partial w} = x , \, \text{ and } \, \frac{\partial \hat{y}(x)}{\partial b} = 1 .

Putting this together, we have

\frac{\partial \text{Loss}_i}{\partial w} = \frac{\partial \text{Loss}_i}{\partial \hat{y}(x_i) } \times \frac{\partial \hat{y}(x_i)}{\partial w} = 2 (\hat{y}(x_i) - y_i) \, x_i

and \frac{\partial \text{Loss}_i}{\partial b} = \frac{\partial \text{Loss}_i}{\partial \hat{y}(x_i) } \times \frac{\partial \hat{y}(x_i)}{\partial b} = 2 (\hat{y}(x_i) - y_i) .

We need non-zero derivatives

This is why can’t use accuracy as the loss function for classification.

Also why we can have the dead ReLU problem.

Stochastic gradient descent (SGD)

Start with \boldsymbol{\theta}_0 = (w, b)^\top = (0, 0)^\top.

Randomly pick i=5, say x_i = 5 and y_i = 5.

\hat{y}(x_i) = 0 \times 5 + 0 = 0 \Rightarrow \text{Loss}_i = (0 - 5)^2 = 25.

The partial derivatives are \begin{aligned} \frac{\partial \text{Loss}_i}{\partial w} &= 2 (\hat{y}(x_i) - y_i) \, x_i = 2 \cdot (0 - 5) \cdot 5 = -50, \text{ and} \\ \frac{\partial \text{Loss}_i}{\partial b} &= 2 (0 - 5) = - 10. \end{aligned} The gradient is \nabla \text{Loss}_i = (-50, -10)^\top.

SGD, first iteration

Start with \boldsymbol{\theta}_0 = (w, b)^\top = (0, 0)^\top.

Randomly pick i=5, say x_i = 5 and y_i = 5.

The gradient is \nabla \text{Loss}_i = (-50, -10)^\top.

Use learning rate \eta = 0.01 to update \begin{aligned} \boldsymbol{\theta}_1 &= \boldsymbol{\theta}_0 - \eta \nabla \text{Loss}_i \\ &= \begin{pmatrix} 0 \\ 0 \end{pmatrix} - 0.01 \begin{pmatrix} -50 \\ -10 \end{pmatrix} \\ &= \begin{pmatrix} 0 \\ 0 \end{pmatrix} + \begin{pmatrix} 0.5 \\ 0.1 \end{pmatrix} = \begin{pmatrix} 0.5 \\ 0.1 \end{pmatrix}. \end{aligned}

SGD, second iteration

Start with \boldsymbol{\theta}_1 = (w, b)^\top = (0.5, 0.1)^\top.

Randomly pick i=9, say x_i = 9 and y_i = 17.

The gradient is \nabla \text{Loss}_i = (-223.2, -24.8)^\top.

Use learning rate \eta = 0.01 to update \begin{aligned} \boldsymbol{\theta}_2 &= \boldsymbol{\theta}_1 - \eta \nabla \text{Loss}_i \\ &= \begin{pmatrix} 0.5 \\ 0.1 \end{pmatrix} - 0.01 \begin{pmatrix} -223.2 \\ -24.8 \end{pmatrix} \\ &= \begin{pmatrix} 0.5 \\ 0.1 \end{pmatrix} + \begin{pmatrix} 2.232 \\ 0.248 \end{pmatrix} = \begin{pmatrix} 2.732 \\ 0.348 \end{pmatrix}. \end{aligned}

Batch gradient descent (BGD)

For the first n observations \text{Loss}_{1:n} = \frac{1}{n} \sum_{i=1}^n \text{Loss}_i so

\begin{aligned} \frac{\partial \text{Loss}_{1:n}}{\partial w} &= \frac{1}{n} \sum_{i=1}^n \frac{\partial \text{Loss}_{i}}{\partial w} = \frac{1}{n} \sum_{i=1}^n \frac{\partial \text{Loss}_{i}}{\hat{y}(x_i)} \frac{\partial \hat{y}(x_i)}{\partial w} \\ &= \frac{1}{n} \sum_{i=1}^n 2 (\hat{y}(x_i) - y_i) \, x_i . \end{aligned}

\begin{aligned} \frac{\partial \text{Loss}_{1:n}}{\partial b} &= \frac{1}{n} \sum_{i=1}^n \frac{\partial \text{Loss}_{i}}{\partial b} = \frac{1}{n} \sum_{i=1}^n \frac{\partial \text{Loss}_{i}}{\hat{y}(x_i)} \frac{\partial \hat{y}(x_i)}{\partial b} \\ &= \frac{1}{n} \sum_{i=1}^n 2 (\hat{y}(x_i) - y_i) . \end{aligned}

BGD, first iteration (\boldsymbol{\theta}_0 = \boldsymbol{0})

x y y_hat loss dL/dw dL/db
0 1 0.99 0 0.98 -1.98 -1.98
1 2 3.00 0 9.02 -12.02 -6.01
2 3 5.01 0 25.15 -30.09 -10.03

So \nabla \text{Loss}_{1:3} is

nabla = np.array([df["dL/dw"].mean(), df["dL/db"].mean()])
nabla
array([-14.69,  -6.  ])

so with \eta = 0.1 then \boldsymbol{\theta}_1 becomes

theta_1 = theta_0 - 0.1 * nabla
theta_1
array([1.47, 0.6 ])

BGD, second iteration

x y y_hat loss dL/dw dL/db
0 1 0.99 2.07 1.17 2.16 2.16
1 2 3.00 3.54 0.29 2.14 1.07
2 3 5.01 5.01 0.00 -0.04 -0.01

So \nabla \text{Loss}_{1:3} is

nabla = np.array([df["dL/dw"].mean(), df["dL/db"].mean()])
nabla
array([1.42, 1.07])

so with \eta = 0.1 then \boldsymbol{\theta}_2 becomes

theta_2 = theta_1 - 0.1 * nabla
theta_2
array([1.33, 0.49])

Package Versions

from watermark import watermark
print(watermark(python=True, packages="keras,matplotlib,numpy,pandas,seaborn,scipy,torch"))
Python implementation: CPython
Python version       : 3.14.5
IPython version      : 9.13.0

keras     : 3.14.1
matplotlib: 3.10.9
numpy     : 2.4.4
pandas    : 3.0.2
seaborn   : 0.13.2
scipy     : 1.17.1
torch     : 2.11.0

Glossary

  • accuracy
  • classification problem
  • confusion matrix
  • cross-entropy loss
  • metrics
  • sigmoid activation function
  • softmax activation
  • batch gradient descent
  • batches, batch size
  • global minimum, local minimum
  • gradient-based learning, hill-climbing
  • learning rate, learning rate schedule
  • plateau
  • stochastic gradient descent
  • mini-batch gradient descent
