Empirical Dynamic Modelling

Automatic Causal Inference and Forecasting

Dr Patrick Laub

Time Series and Forecasting Symposium

December 2, 2022

Introduction

Goal: automatic causal inference


df <- read.csv("chicago.csv")
head(df)
#>   Time Temperature Crime
#> 1    1       24.08  1605
#> 2    2       19.04  1119
#> 3    3       28.04  1127
#> 4    4       30.02  1154
#> 5    5       35.96  1251
#> 6    6       33.08  1276

library(fastEDM)

crimeCCMCausesTemp <- easy_edm("Crime", "Temperature", data=df)
#> ✖ No evidence of CCM causation from Crime to Temperature found.

tempCCMCausesCrime <- easy_edm("Temperature", "Crime", data=df)
#> ✔ Some evidence of CCM causation from Temperature to Crime found.

Jinjing Li
University of Canberra

George Sugihara
University of California San Diego

Michael J. Zyphur
University of Queensland

Patrick J. Laub
UNSW


Acknowledgments

Discovery Project DP200100219 and Future Fellowship FT140100629.

A different view of causality


Imagine x_t, y_t, z_t are interesting time series…

If the data is generated according to the nonlinear system:

\begin{aligned} x_{t+1} &= \sigma (y_t - x_t) \\ y_{t+1} &= x_t (\rho - z_t) - y_t \\ z_{t+1} &= x_t y_t - \beta z_t \end{aligned}

then y \Rightarrow x, both x, z \Rightarrow y, and both x, y \Rightarrow z.

Linear/nonlinear dynamical systems


Say \mathbf{x}_t = (x_t, y_t, z_t), then if:

\mathbf{x}_{t+1} = \mathbf{A} \mathbf{x}_{t}

we have a linear system.

\mathbf{x}_{t+1} = f(\mathbf{x}_{t})

we have a nonlinear system.

Using a term like nonlinear science is like referring to the bulk of zoology as the study of non-elephant animals. (Stanisław Ulam)

We don’t fit a model for f, non-parametrically use the data. Hence the name empirical dynamic modelling.

Noise or unobserved variables?

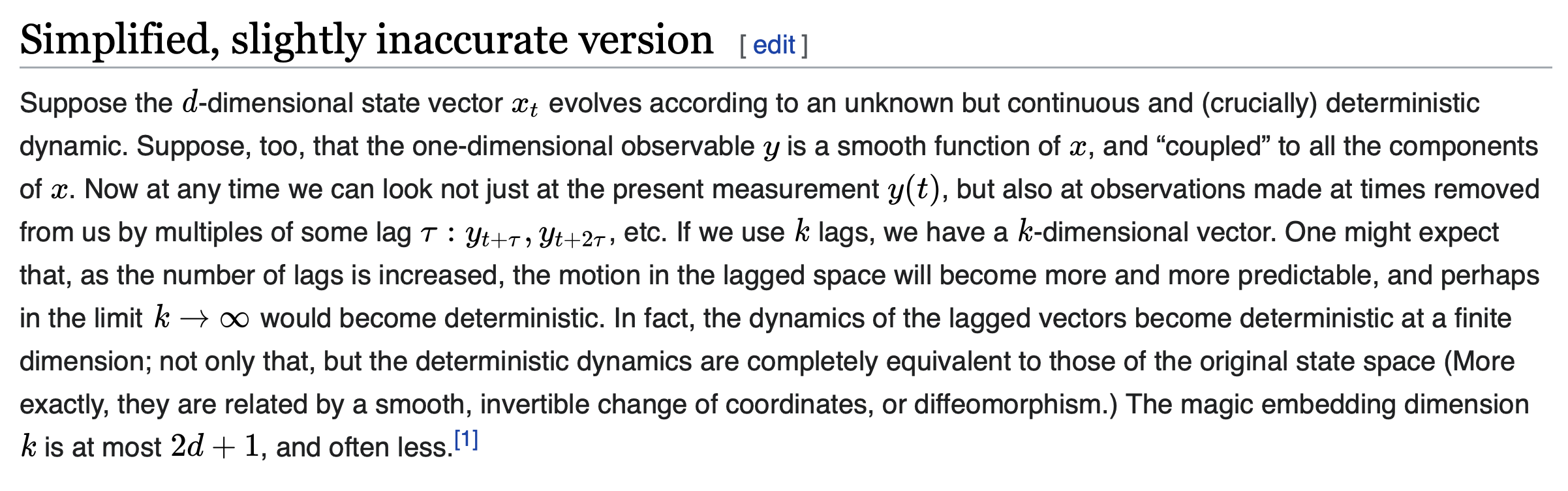

Takens’ theorem to the rescue, though…

Takens’ theorem is a deep mathematical result with far-reaching implications. Unfortunately, to really understand it, it requires a background in topology. (Munch et al. 2020)

Source: Munch et al. (2020), Frequently asked questions about nonlinear dynamics and empirical dynamic modelling, ICES Journal of Marine Science.

Empirical Dynamic Modelling (EDM)

Create lagged embeddings


Given two time series, create E-length trajectories

\mathbf{x}_t = (\text{Temp}_t, \text{Temp}_{t-1}, \dots, \text{Temp}_{t-(E-1)}) \in \mathbb{R}^{E}

and targets

y_t = \text{Crime}_{t} .

Note

The \mathbf{x}_t’s are called points (on the shadow manifold).

Split the data

  • \mathcal{L} = \{ (\mathbf{x}_1, y_1) , \dots , (\mathbf{x}_{n} , y_{n}) \} is library set,
  • \mathcal{P} = \{ (\mathbf{x}_{n+1}, y_{n+1}) , \dots , (\mathbf{x}_{T}, y_{T}) \} is prediction set.


For point \mathbf{x}_{s} \in \mathcal{P}, pretend we don’t know y_s and try to predict it.

\forall \, \mathbf{x} \in \mathcal{L} \quad \text{ find } \quad d(\mathbf{x}_{s}, \mathbf{x})

This is computationally demanding.

Non-parametric prediction: simplex


For point \mathbf{x}_{s} \in \mathcal{P}, find k nearest neighbours in \mathcal{L}.

Say, e.g., k=2 and the neighbours are

\mathcal{NN}_k = \bigl( (\mathbf{x}_{3}, y_3), (\mathbf{x}_{5}, y_5) \bigr)

The simplex method predicts

\widehat{y}_s = w_1 y_3 + w_2 y_5 .

Non-parametric prediction: S-map


Sequential Locally Weighted Global Linear Maps (S-map)

Weight the points by distance w_i = \exp\bigl\{ - \theta d(\mathbf{x}_{s}, \mathbf{x}_i) \bigr\} .

Build a local linear system \widehat{y}_s = \mathbf{x}_s^\top \boldsymbol{\beta}_s .

For all s \in \mathcal{P}, compare \widehat{y}_s to true y_s, and calculate \rho.

Convergent cross mapping


  • If \text{Temp}_t causes \text{Crime}_t, then information about \text{Temp}_t is somehow embedded in \text{Crime}_t.

  • By observing \text{Crime}_t, we should be able to forecast \text{Temp}_t.

  • By observing more of \text{Crime}_t (more “training data”), our forecasts of \text{Temp}_t should be more accurate.


Example: Chicago crime and temperature.

Software

Stata package

R package


Thanks to Rishi Dhushiyandan for his hard work on easy_edm.


Python package

Modern engineering

  • Open code (9,745 LOC) on MIT License,
  • unit & integration tests (5,342 LOC),
  • documentation (5,042 LOC),
  • Git (1,198 commits),
  • Github Actions (11 tasks),
  • vectorised, microbenchmarking, ASAN, linting,
  • all C++ compilers, WASM, all OSs.

Get involved!


😊 Give it a try, feedback would be very welcome.


😍 If you’re talented in causal inference or programming (Stata/Mata, R, Javascript, C++, Python), we’d love contributions!
