Distributional Regression

ACTL3143 & ACTL5111 Deep Learning for Actuaries

Introduction

Why actuaries avoid neural networks

They’re not inherently interpretable, so we just have to look at inputs and outputs from the black box.

Neural network models typically just output a prediction without any sense of its confidence.

Therefore we cannot trust the neural network models, which is a dealbreaker.

Now let’s focus on actuarial problems.

Car insurance

Claim size prediction

👤 Age	🚗 Age	🏎️ Type
25	3	🚙 Sedan
40	5	🚐 SUV
19	1	🏎️ Sports Car
60	10	🚘 Hatchback

\longrightarrow

Cost
💵 $1,200
💵 $2,500
💵 $3,800
💵 $800

What’s wrong? Not enough rows? Not enough columns?

These claim size predictions are not genuine future predictions — the next claim that a 40-year-old with a 5-year-old SUV makes will probably not be $2,500. That’s only a best guess.

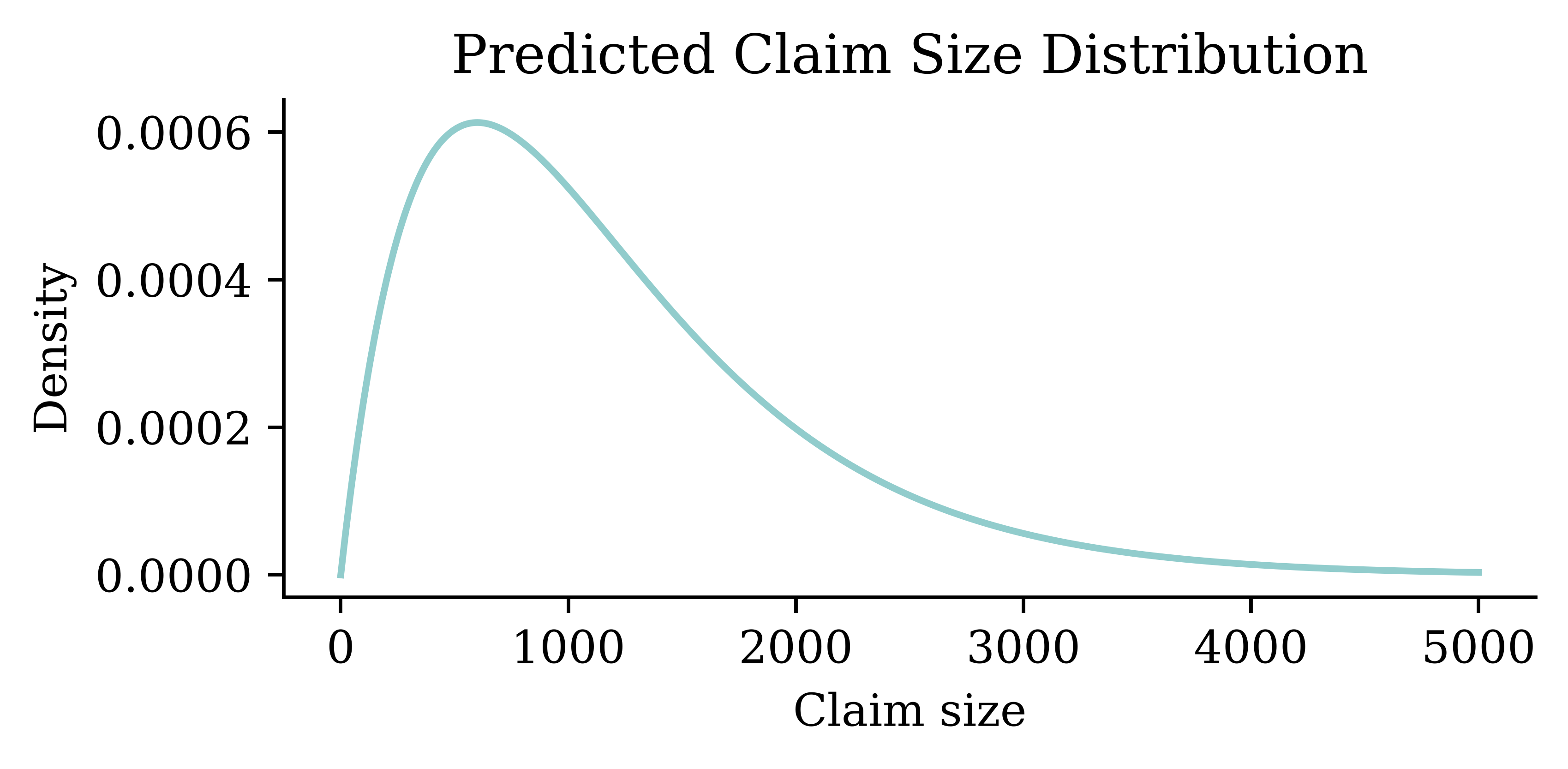

Distributional regression

Customer 1 = (25, 3, 🚙)

What we are trying to predict is fundamentally unpredictable. Rather than making a 100% confident prediction on a customer’s next claim, the distributional regression model returns a range of possible claim sizes, namely, a distribution of predicted claim sizes for a given customer.

Based on the distribution output, actuaries can obtain risk measures such as expected claim size, variance, Value at Risk, etc.

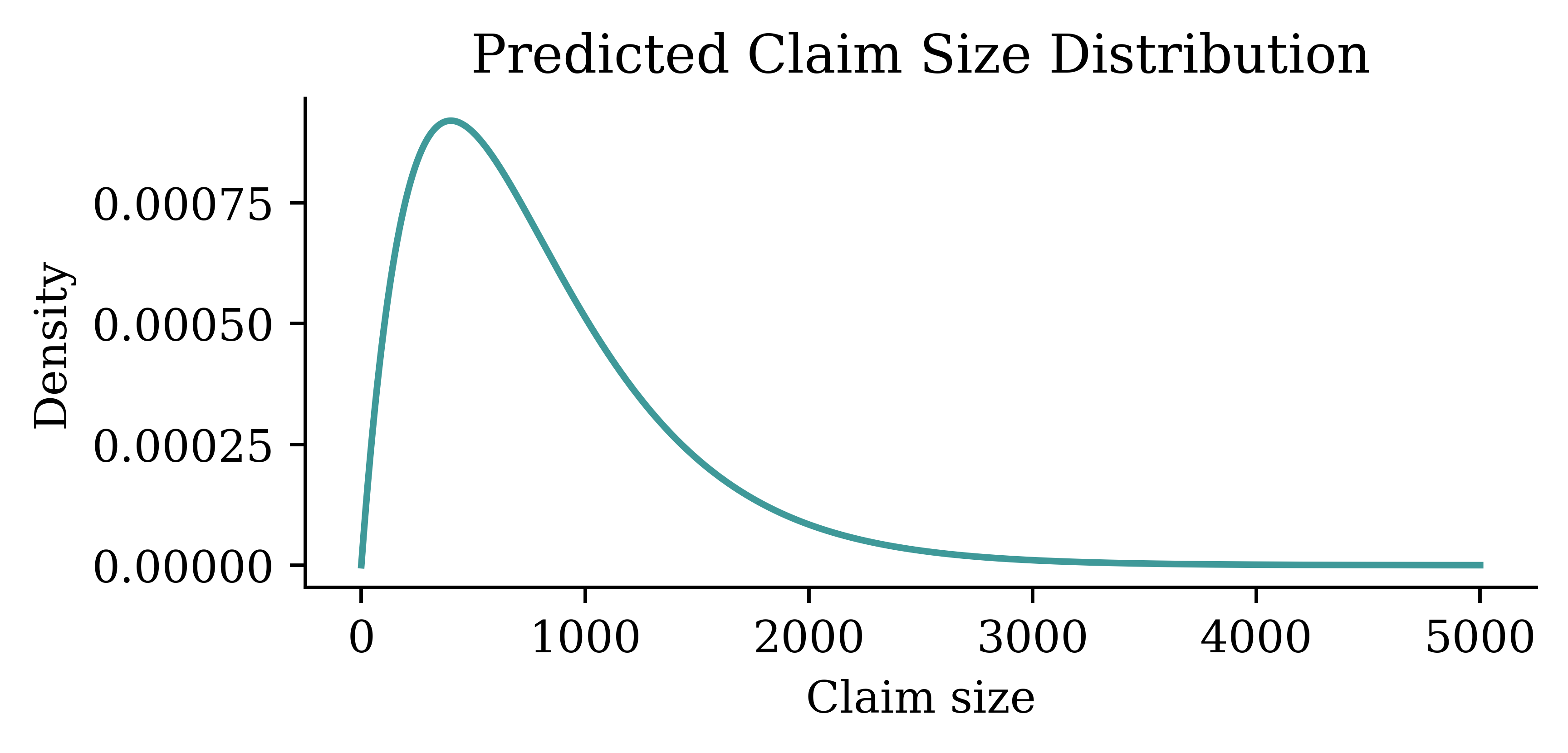

Distributional regression

Customer 2 = (40, 5, 🚐)

Distributional regression

Customer 3 = (19, 1, 🏎️)

Distributional regression

Customer 4 = (60, 10, 🚘)

Distributional regression

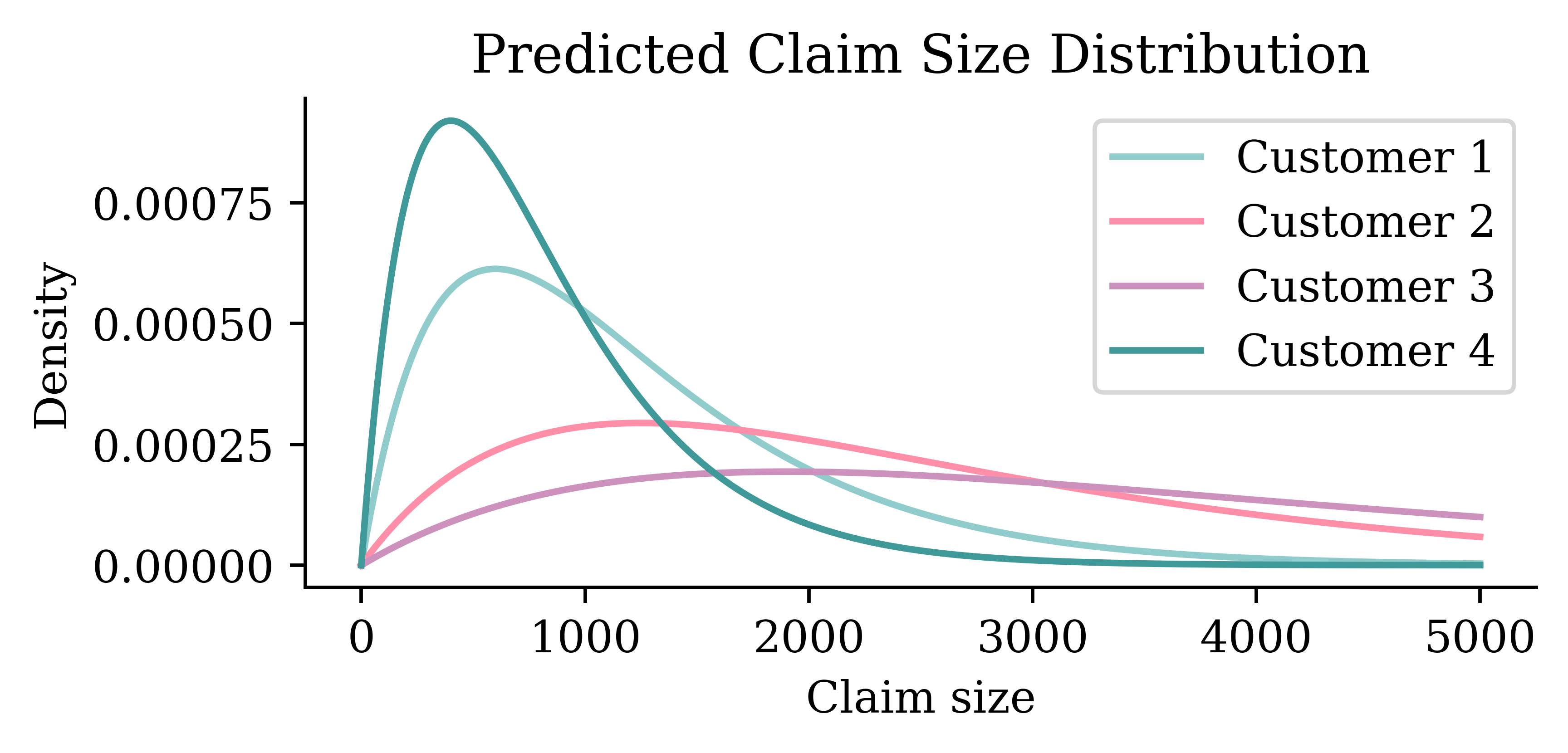

All customers

One model, many distributions

Feed in a batch of customers and the model returns a predicted claim-size distribution for each one.

The same network is applied to every row of the batch, and for each customer it returns a full predicted claim-size distribution rather than a single number.

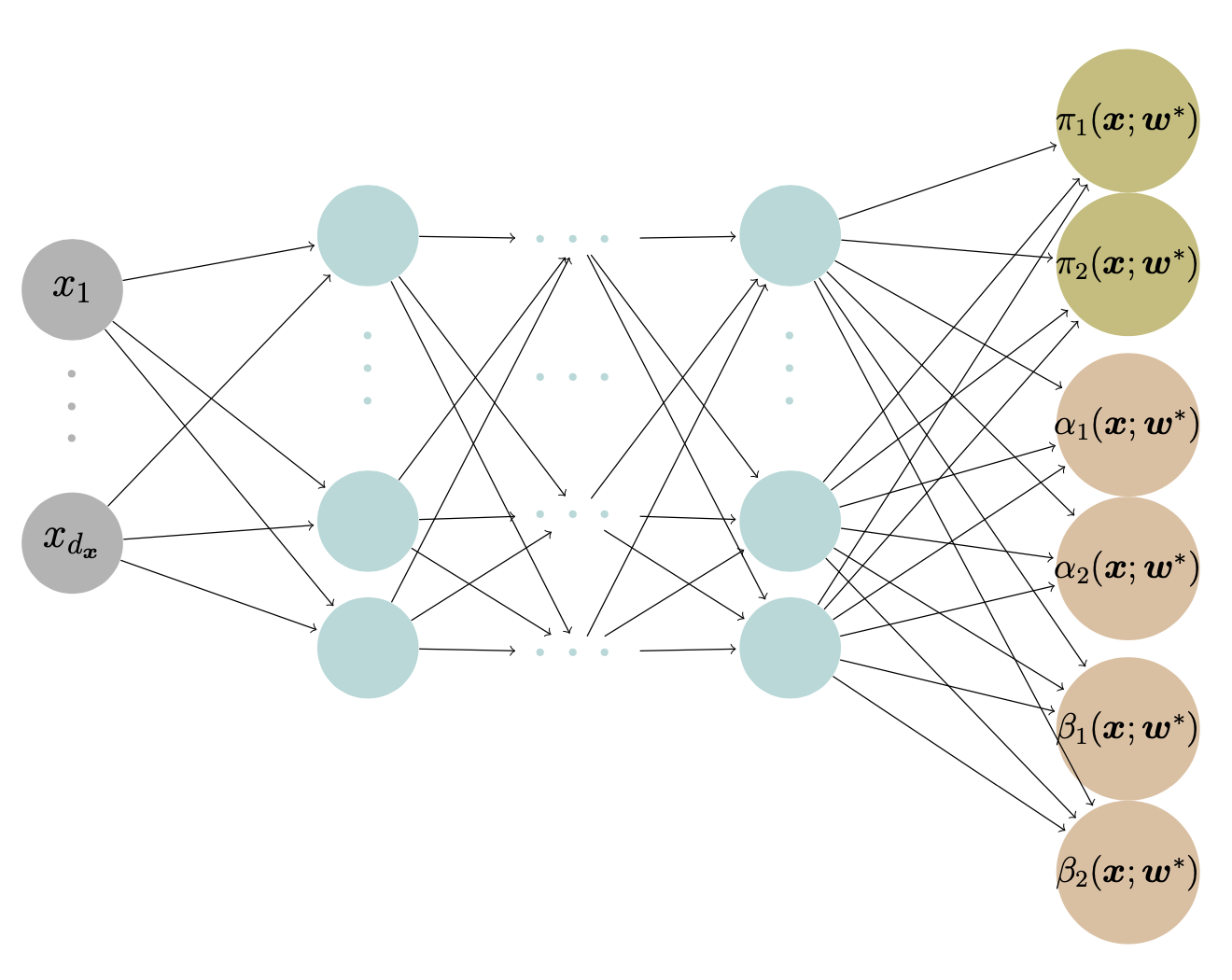

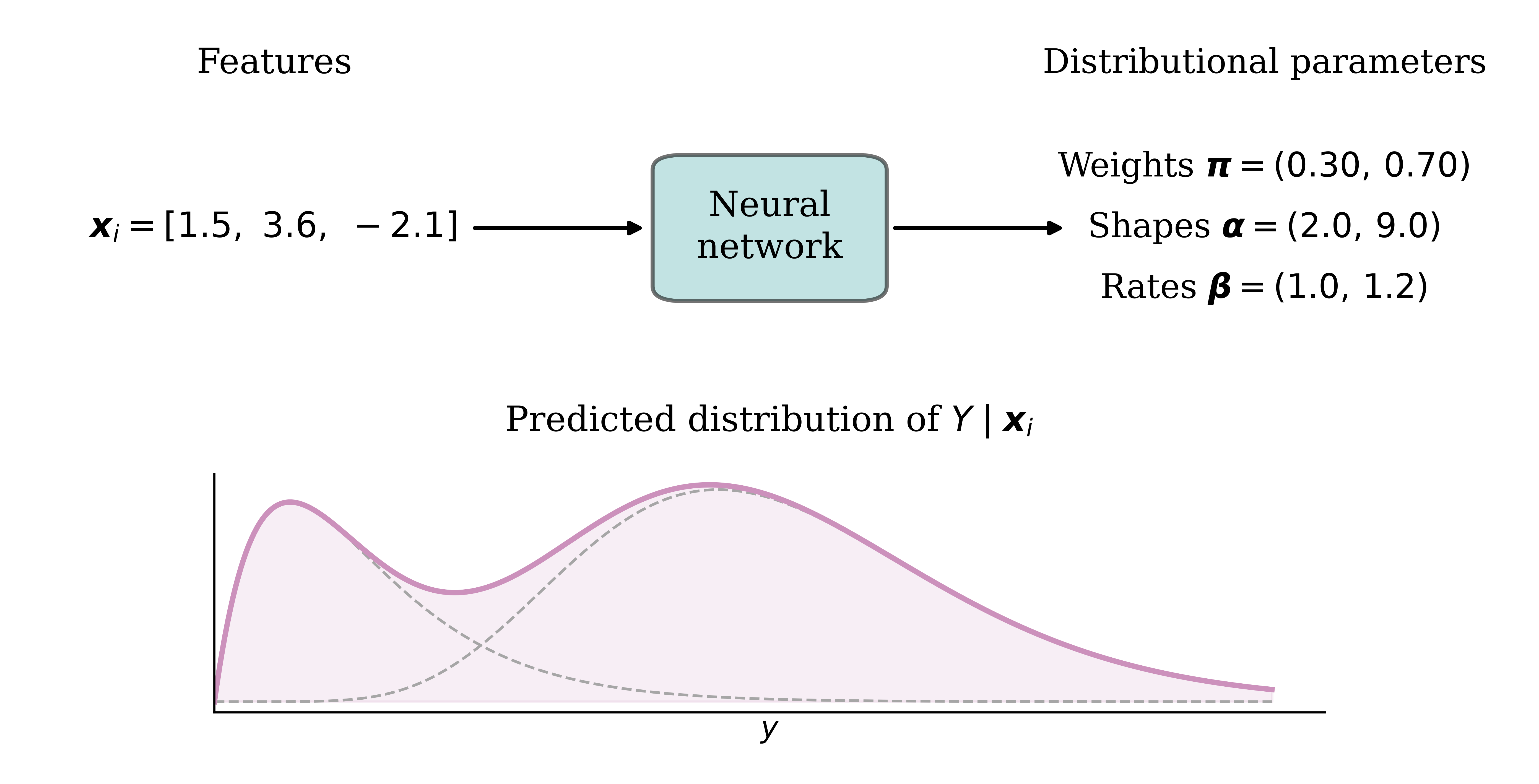

Predicting distribution parameters

In practice the network doesn’t emit a whole curve — it emits the parameters of a chosen distribution family, which then define the distribution.

Here the network maps each input \mathbf{x}_i to a parameter vector \theta_i = (\alpha_i, \beta_i). Those parameters are then plugged into the assumed family (a gamma here) to give the predicted distribution for customer i.

Anatomy of a predicted distribution

From a single predicted distribution we can read off the mean, the variance, and high quantiles (e.g. Value-at-Risk).

A predicted distribution need not be a tidy unimodal shape. This multimodal example still yields a well-defined mean and variance, and the high quantiles (here the 90%, 95% and 99% points) are exactly the risk measures actuaries care about, e.g. Value-at-Risk.

Traditional vs distributional regression

Same inputs, same model — the difference is what comes out.

While traditional models give a single prediction (expected value), distributional regression models give a distribution of predictions.

Baseline: a generalised linear model

A gamma GLM with a log link function:

\begin{aligned} Y | \mathbf{X} &\sim \mathrm{Gamma}(\ldots, \ldots) \\ \mathbb{E}[Y | \mathbf{X}] &= \exp\Bigl\{ \beta_0 + \beta_1 \cdot \text{Age} + \beta_2 \cdot \text{Car Age} + \beta_3 \cdot \text{Type} \Bigr\} \end{aligned}

A simple model, easy to train and interpret, but…

ImportantGLMs can be

1. Bad at regression
2. Bad at distributional regression

GLMs can be bad at regression because they are restricted to having to take a linear combination of the covariates.

GLMs can be bad at distributional regression because they are restricted to a limited number of probability distributions (Gamma, Poisson, etc.).

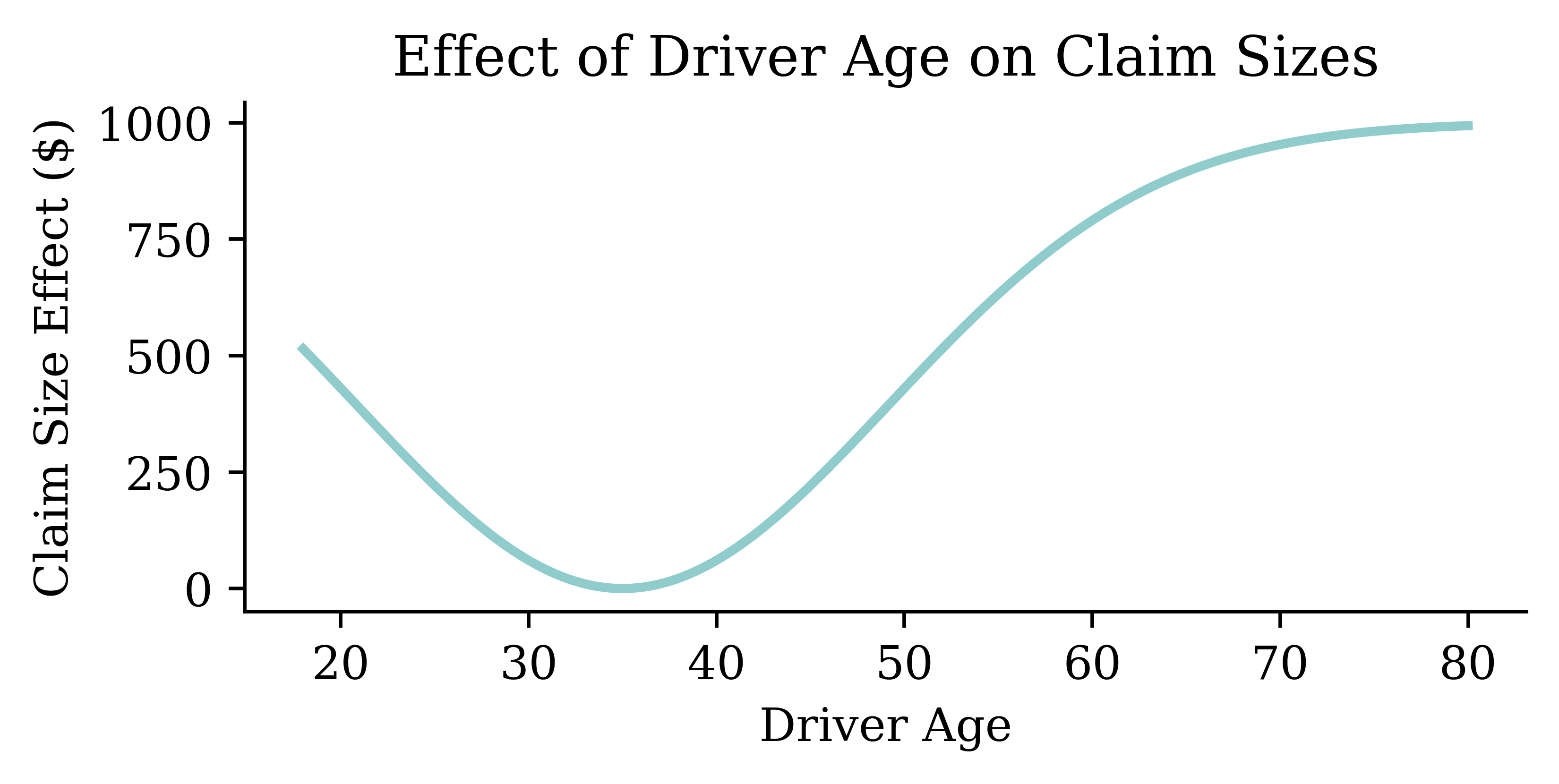

Example 1: Non-monotonicity

The relationship between the input and output is not always linear. We need to find a way to reflect these non-linear relationships. While you can manually perform feature engineering before placing them in the GLM, this quickly becomes time-consuming. This doesn’t compare to the automated and complex feature engineering that neural networks can do.

GLMs cannot (easily) do this \longrightarrow Use a neural network

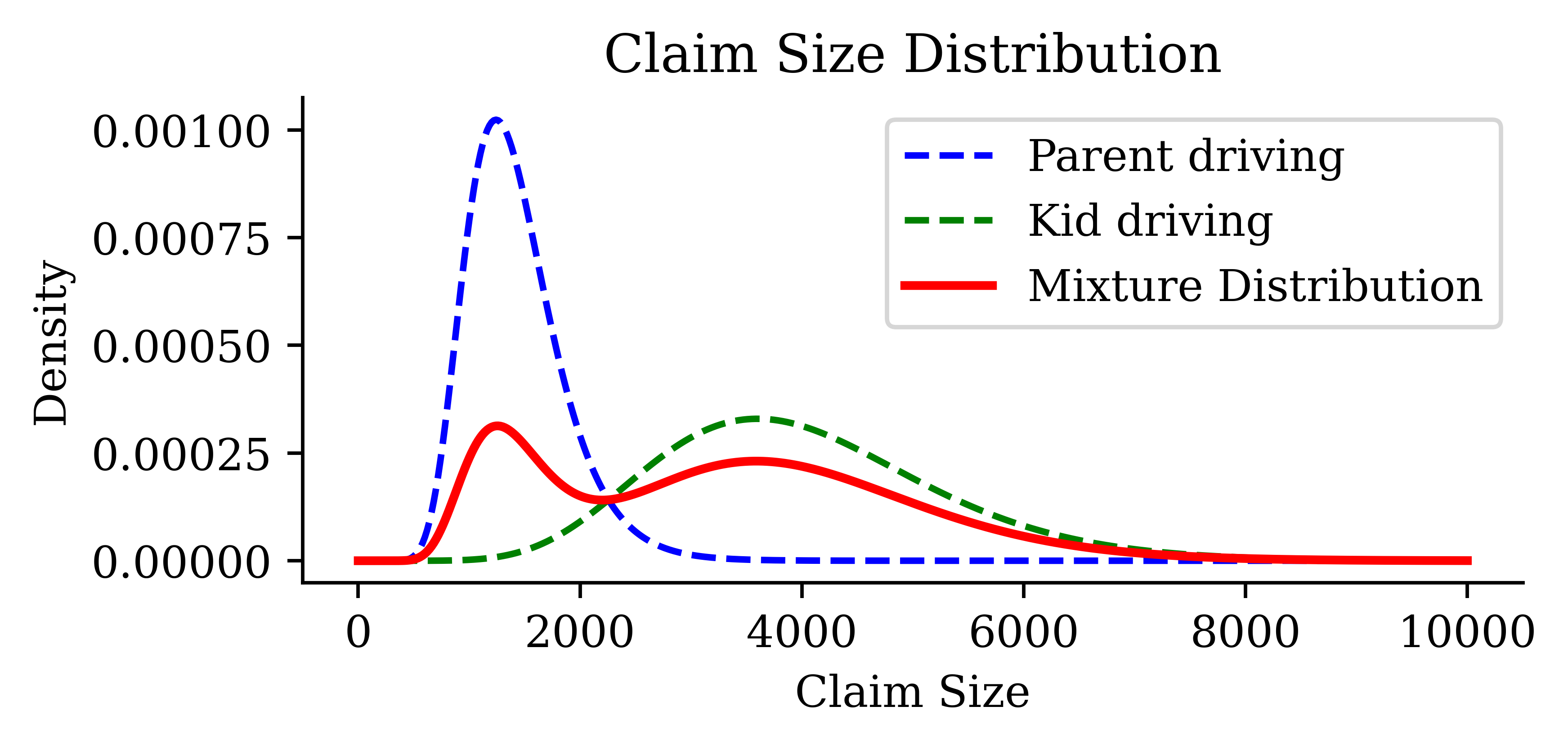

Example 2: Multimodality

The distribution of the output cannot always be easily represented with the limited distributions available for GLMs. For example, if the distribution of the claim size is multimodal… Gamma/Weibull/Pareto distributions cannot capture this.

NoteMixture distribution

A mixture distribution is, simply put, a mixture of two or more distributions. If f_1(\cdot) is the distribution of claim sizes when a parent is driving and f_2(\cdot) is the distribution when a kid is driving, then the distribution of all claim sizes is:

f(x) = wf_1(x) + (1-w)f_2(x)

The weight parameter w would be chosen based on the expected proportion of the time that a parent/kid is driving.

Key idea

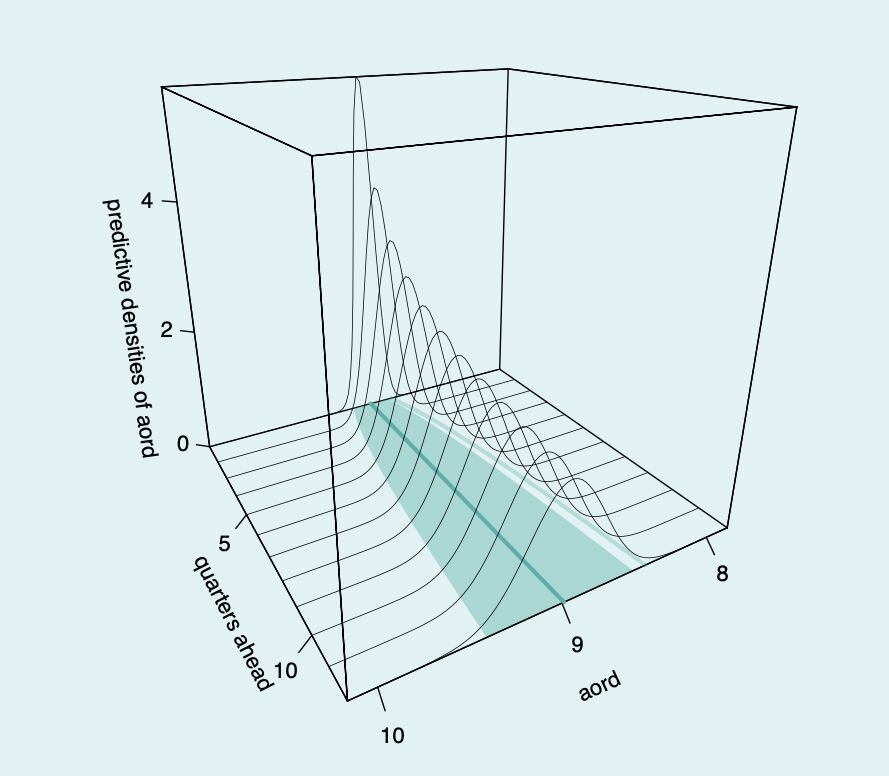

An example of distributional forecasting over the All Ordinaries Index

• Earlier machine learning models focused on point estimates.
• However, in many applications, we need to understand the distribution of the response variable.
• Each prediction becomes a distribution over the possible outcomes

In this example, the distribution of predictions is much more concentrated around the mean for earlier predictions. As we look further into the future, naturally our confidence decreases and the variance of predictions increases.

Source: Tomasz Woźniak (2024), LinkedIn Post, accessed on July 15 2024.

We will focus on regression not classification

Classifiers already give us a probability, which is a big step up compared to regression models.

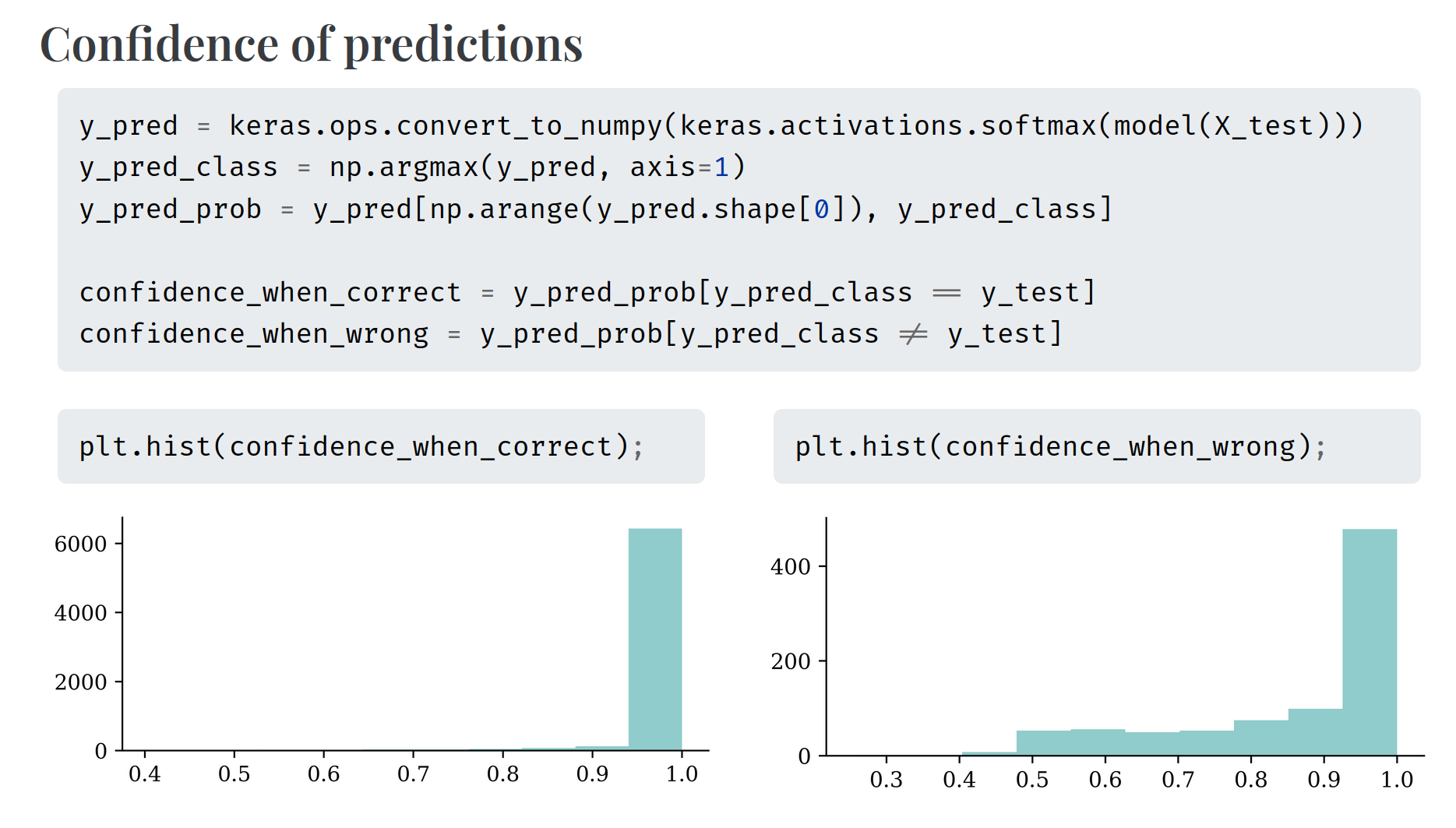

However, neural networks’ “probabilities” can be overconfident.

We already saw a case of this.

See Guo et al. (2017).

Traditional Regression

Package imports

import random
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import keras
from keras.models import Sequential, Model
from keras.layers import Input, Dense, Concatenate, Dropout
from keras.callbacks import EarlyStopping
from keras.initializers import Constant
from keras.regularizers import L1, L2

from sklearn.model_selection import train_test_split
from sklearn.compose import make_column_transformer
from sklearn.pipeline import make_pipeline
from sklearn.preprocessing import StandardScaler, OrdinalEncoder
from sklearn.linear_model import LinearRegression
from sklearn.datasets import fetch_california_housing
from sklearn import set_config
set_config(transform_output="pandas")

import scipy.stats as stats
import statsmodels.api as sm
from torch.distributions import Gamma, MixtureSameFamily, Categorical

Notation

• scalars are denoted by lowercase letters, e.g., y,
• vectors are denoted by bold lowercase letters, e.g., \boldsymbol{y} = (y_1, \ldots, y_n) ,
• random variables are denoted by capital letters, e.g., Y
• random vectors are denoted by bold capital letters, e.g., \boldsymbol{X} = (X_1, \ldots, X_p) ,
• matrices are denoted by bold uppercase non-italics letters, e.g., \mathbf{X} = \begin{pmatrix} x_{11} & \cdots & x_{1p} \\ \vdots & \ddots & \vdots \\ x_{n1} & \cdots & x_{np} \end{pmatrix} .

Regression notation

• n is the number of observations, p is the number of features,
• the true coefficients are \boldsymbol{\beta} = (\beta_0, \beta_1, \ldots, \beta_p),
• \beta_0 is the intercept, \beta_1, \ldots, \beta_p are the coefficients,
• \boldsymbol{\beta}^* is the estimated coefficient vector,
• \boldsymbol{x}_i = (1, x_{i1}, x_{i2}, \ldots, x_{ip}) is the feature vector for the ith observation,
• y_i is the response variable for the ith observation,
• \hat{y}_i is the predicted value for the ith observation,

Distributional assumptions become loss functions

Each example below follows the same maximum-likelihood recipe:

1. Choose a distribution and write its density or mass function.

   Y_i|\boldsymbol{X}=\boldsymbol{x}_i \sim F(\theta_i), \qquad f(y_i; \theta_i)

2. Multiply the probabilities to form the likelihood.

   L(\boldsymbol{\beta}) = \prod_{i=1}^n f(y_i; \theta_i)

3. Take logs to get the log-likelihood and negate it to get negative log likelihood.

   \ell(\boldsymbol{\beta}) = \sum_{i=1}^n \log f(y_i; \theta_i) \quad \Rightarrow \text{NLL}(\boldsymbol{\beta}) = -\ell(\boldsymbol{\beta})

4. Drop constants and rescale to get the model loss.

   \text{loss}(\boldsymbol{y}, \hat{\boldsymbol{y}})

Traditional regression

Multiple linear regression assumes the data-generating process is

Y_i = \beta_0 + \beta_1 x_{i1} + \beta_2 x_{i2} + \ldots + \beta_p x_{ip} + \varepsilon

where \varepsilon \sim \mathcal{N}(0, \sigma^2).

We estimate the coefficients \beta_0, \beta_1, \ldots, \beta_p by minimising the sum of squared residuals or mean squared error

\text{RSS} := \sum_{i=1}^n (y_i - \hat{y}_i)^2 , \quad \text{MSE} := \frac{1}{n} \sum_{i=1}^n (y_i - \hat{y}_i)^2 ,

where \hat{y}_i is the predicted value for the ith observation.

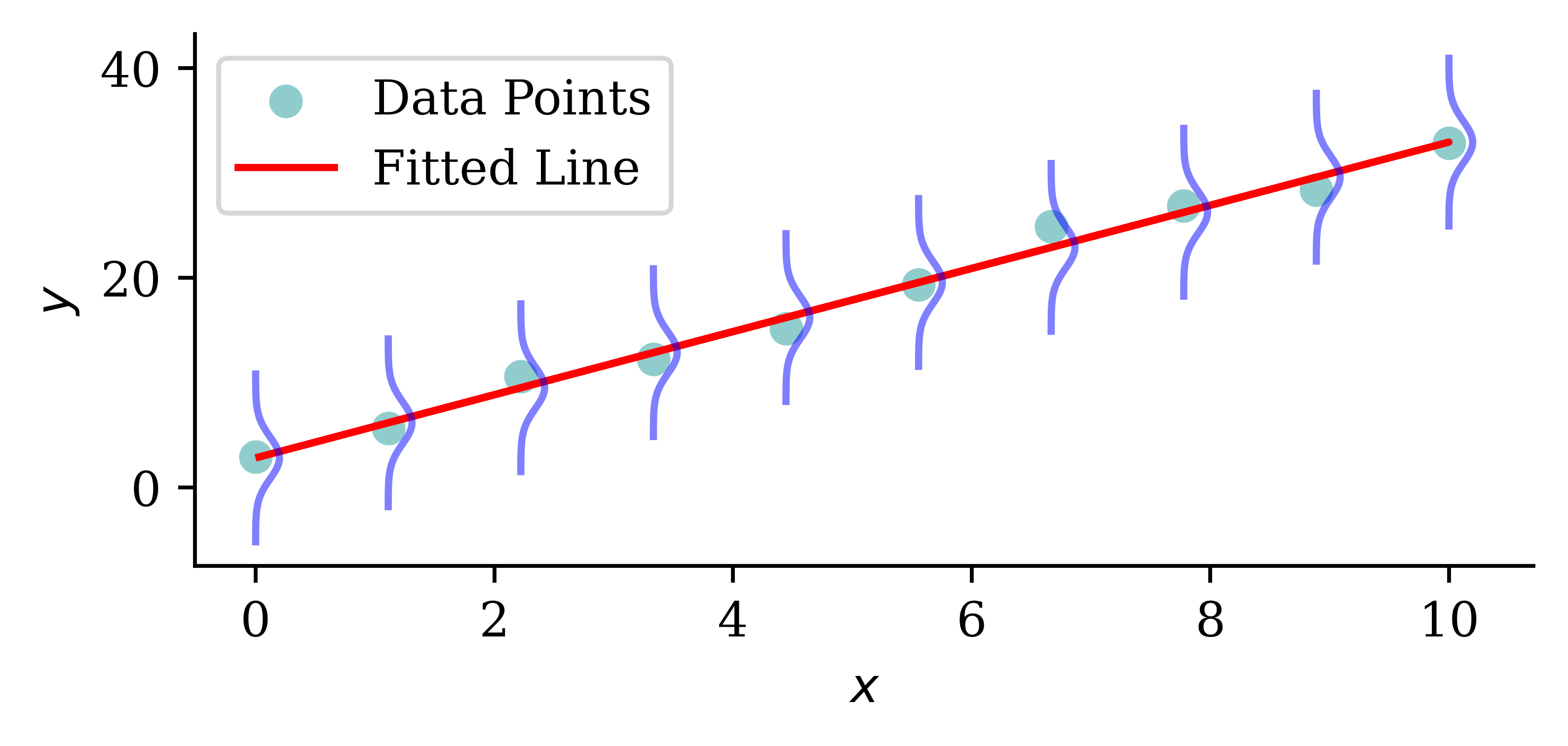

Visualising the distribution of each Y

# Generate sample data for linear regression
np.random.seed(0)
X_toy = np.linspace(0, 10, 10)
np.random.shuffle(X_toy)

beta_0 = 2
beta_1 = 3
y_toy = beta_0 + beta_1 * X_toy + np.random.normal(scale=2, size=X_toy.shape)
sigma_toy = 2  # Assuming a standard deviation for the normal distribution

# Fit a simple linear regression model
coefficients = np.polyfit(X_toy, y_toy, 1)
predicted_y = np.polyval(coefficients, X_toy)

# Plot the data points and the fitted line
plt.scatter(X_toy, y_toy, label='Data Points')
plt.plot(X_toy, predicted_y, color='red', label='Fitted Line')

# Draw the normal distribution bell curve sideways at each data point
for i in range(len(X_toy)):
    mu = predicted_y[i]
    y_values = np.linspace(mu - 4*sigma_toy, mu + 4*sigma_toy, 100)
    x_values = stats.norm.pdf(y_values, mu, sigma_toy) + X_toy[i]
    plt.plot(x_values, y_values, color='blue', alpha=0.5)

plt.xlabel('$x$')
plt.ylabel('$y$')
plt.legend()

The error terms \varepsilon \sim \mathcal{N}(0, \sigma^2) are represented by the purple distribution curves along the fitted line.

The probabilistic view

From a probability point of view, we are fitting a distributional model. Since \varepsilon is random, then Y is also partially random.

Y_i \sim \mathcal{N}(\mu_i, \sigma^2)

where \mu_i = \beta_0 + \beta_1 x_{i1} + \ldots + \beta_p x_{ip}, and the \sigma^2 is known.

The \mathcal{N}(\mu, \sigma^2) normal distribution has p.d.f.

f(y) = \frac{1}{\sqrt{2\pi\sigma^2}} \exp\left(-\frac{(y - \mu)^2}{2\sigma^2}\right) .

The likelihood function is

L(\boldsymbol{\beta}) = \prod_{i=1}^n \frac{1}{\sqrt{2\pi\sigma^2}} \exp\left(-\frac{(y_i - \mu_i)^2}{2\sigma^2}\right) \Rightarrow \ell(\boldsymbol{\beta}) = -\frac{n}{2}\log(2\pi) - \frac{n}{2}\log(\sigma^2) - \frac{1}{2\sigma^2}\sum_{i=1}^n (y_i - \mu_i)^2 .

Perform maximum likelihood estimation to find \boldsymbol{\beta}.

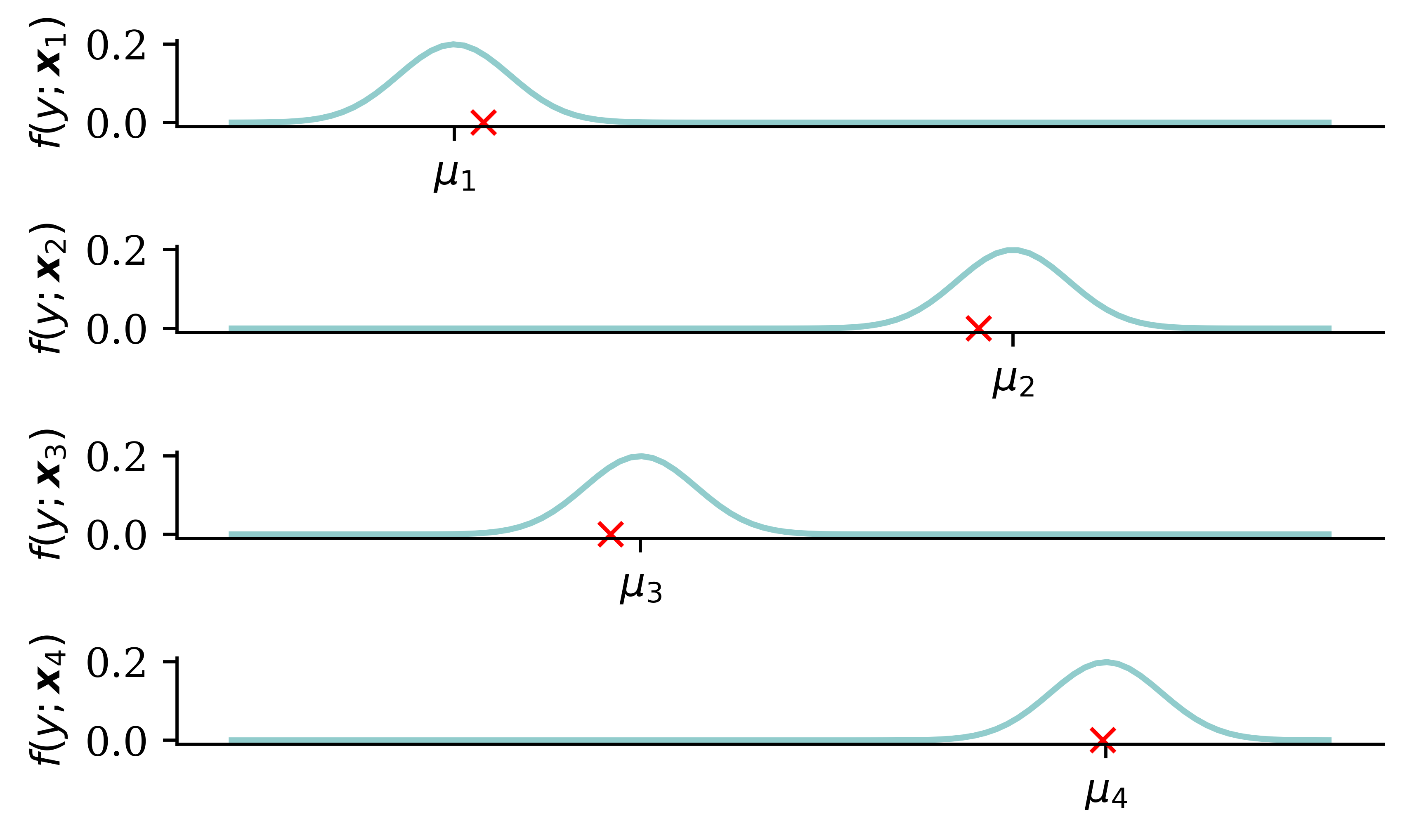

The predicted distributions

y_pred = np.polyval(coefficients, X_toy[:4])

fig, axes = plt.subplots(4, 1, figsize=(5.0, 3.0))

x_min = y_pred[:4].min() - 4*sigma_toy
x_max = y_pred[:4].max() + 4*sigma_toy
x_grid = np.linspace(x_min, x_max, 100)

# Plot each normal distribution with different means vertically
for i, ax in enumerate(axes):
    mu = y_pred[i]
    y_grid = stats.norm.pdf(x_grid, mu, sigma_toy)
    ax.plot(x_grid, y_grid)
    ax.set_ylabel(f'$f(y ; \\boldsymbol{{x}}_{{{i+1}}})$')
    ax.set_xticks([y_pred[i]], labels=[r'$\mu_{' + str(i+1) + r'}$'])
    ax.plot(y_toy[i], 0, 'rx', clip_on=False)

plt.tight_layout();

\sigma^2 is known, fixed and the same for all observations. For each observation, the shape of the distribution doesn’t change, only the location.

The machine learning view

The negative log-likelihood \text{NLL}(\boldsymbol{\beta}) := -\ell(\boldsymbol{\beta}) is to be minimised:

\text{NLL}(\boldsymbol{\beta}) = \frac{n}{2}\log(2\pi) + \frac{n}{2}\log(\sigma^2) + \frac{1}{2\sigma^2}\sum_{i=1}^n (y_i - \mu_i)^2 .

As \sigma^2 is fixed, minimising NLL is equivalent to minimising MSE:

\begin{aligned} \boldsymbol{\beta}^* &= \underset{\boldsymbol{\beta}}{\operatorname{arg\,min}}\,\, \text{NLL}(\boldsymbol{\beta}) \\ &= \underset{\boldsymbol{\beta}}{\operatorname{arg\,min}}\,\, \frac{n}{2}\log(2\pi) + \frac{n}{2}\log(\sigma^2) + \frac{1}{2\sigma^2}\sum_{i=1}^n (y_i - \mu_i)^2 \\ &= \underset{\boldsymbol{\beta}}{\operatorname{arg\,min}}\,\, \frac{1}{n} \sum_{i=1}^n \Bigl( y_i - \hat{y}_i(\boldsymbol{x}_i; \boldsymbol{\beta}) \Bigr)^2 \\ &= \underset{\boldsymbol{\beta}}{\operatorname{arg\,min}}\,\, \text{MSE}\bigl( \boldsymbol{y}, \hat{\boldsymbol{y}}(\mathbf{X}; \boldsymbol{\beta}) \bigr). \end{aligned}

Generalised Linear Model (GLM)

The GLM is often characterised by the mean prediction:

\mu(\boldsymbol{x}; \boldsymbol{\beta}) = g^{-1} \left(\left\langle \boldsymbol{\beta}, \boldsymbol{x} \right\rangle\right)

where g is the link function.

Common GLM distributions for the response variable include:

• Normal distribution with identity link (just MLR)
• Bernoulli distribution with logit link (logistic regression)
• Poisson distribution with log link (Poisson regression)
• Gamma distribution with log link

Logistic regression

A Bernoulli distribution with parameter p has p.m.f.

f(y)\ =\ \begin{cases} p & \text{if } y = 1 \\ 1 - p & \text{if } y = 0 \end{cases} \ =\ p^y (1 - p)^{1 - y}.

Our model is Y|\boldsymbol{X}=\boldsymbol{x} follows a Bernoulli distribution with parameter

\mu(\boldsymbol{x}; \boldsymbol{\beta}) = \frac{1}{1 + \exp\left(-\left\langle \boldsymbol{\beta}, \boldsymbol{x} \right\rangle\right)} = \mathbb{P}(Y=1|\boldsymbol{X}=\boldsymbol{x}).

The likelihood function, using \mu_i := \mu(\boldsymbol{x}_i; \boldsymbol{\beta}), is

L(\boldsymbol{\beta}) \ =\ \prod_{i=1}^n \begin{cases} \mu_i & \text{if } y_i = 1 \\ 1 - \mu_i & \text{if } y_i = 0 \end{cases} \ =\ \prod_{i=1}^n \mu_i^{y_i} (1 - \mu_i)^{1 - y_i} .

Binary cross-entropy loss

L(\boldsymbol{\beta}) = \prod_{i=1}^n \mu_i^{y_i} (1 - \mu_i)^{1 - y_i} \Rightarrow \ell(\boldsymbol{\beta}) = \sum_{i=1}^n \Bigl( y_i \log(\mu_i) + (1 - y_i) \log(1 - \mu_i) \Bigr).

The negative log-likelihood is

\text{NLL}(\boldsymbol{\beta}) = -\sum_{i=1}^n \Bigl( y_i \log(\mu_i) + (1 - y_i) \log(1 - \mu_i) \Bigr).

The binary cross-entropy loss is basically identical: \text{BCE}(\boldsymbol{y}, \boldsymbol{\mu}) = - \frac{1}{n} \sum_{i=1}^n \Bigl( y_i \log(\mu_i) + (1 - y_i) \log(1 - \mu_i) \Bigr).

Poisson regression

A Poisson distribution with rate \lambda has p.m.f. f(y) = \frac{\lambda^y \exp(-\lambda)}{y!}.

Our model is Y|\boldsymbol{X}=\boldsymbol{x} is Poisson distributed with parameter

\mu(\boldsymbol{x}; \boldsymbol{\beta}) = \exp\left(\left\langle \boldsymbol{\beta}, \boldsymbol{x} \right\rangle\right) .

The likelihood function is

L(\boldsymbol{\beta}) = \prod_{i=1}^n \frac{ \mu_i^{y_i} \exp(-\mu_i) }{y_i!} \Rightarrow \ell(\boldsymbol{\beta}) = \sum_{i=1}^n \Bigl( -\mu_i + y_i \log(\mu_i) - \log(y_i!) \Bigr).

Poisson loss

The negative log-likelihood is

\text{NLL}(\boldsymbol{\beta}) = \sum_{i=1}^n \Bigl( \mu_i - y_i \log(\mu_i) + \log(y_i!) \Bigr) .

The Poisson loss is

\text{Poisson}(\boldsymbol{y}, \boldsymbol{\mu}) = \frac{1}{n} \sum_{i=1}^n \Bigl( \mu_i - y_i \log(\mu_i) \Bigr).

Gamma regression

A Gamma distribution with mean \mu and dispersion \phi has p.d.f. f(y; \mu, \phi) = \frac{(\mu \phi)^{-\frac{1}{\phi}}}{\Gamma\left(\frac{1}{\phi}\right)} y^{\frac{1}{\phi} - 1} \mathrm{e}^{-\frac{y}{\mu \phi}}

Our model is Y|\boldsymbol{X}=\boldsymbol{x} is Gamma distributed with a dispersion of \phi and a mean of \mu(\boldsymbol{x}; \boldsymbol{\beta}) = \exp\left(\left\langle \boldsymbol{\beta}, \boldsymbol{x} \right\rangle\right).

The likelihood function is L(\boldsymbol{\beta}) = \prod_{i=1}^n \frac{(\mu_i \phi)^{-\frac{1}{\phi}}}{\Gamma\left(\frac{1}{\phi}\right)} y_i^{\frac{1}{\phi} - 1} \exp\left(-\frac{y_i}{\mu_i \phi}\right)

\Rightarrow \ell(\boldsymbol{\beta}) = \sum_{i=1}^n \left[ -\frac{1}{\phi} \log(\mu_i \phi) - \log \Gamma\left(\frac{1}{\phi}\right) + \left(\frac{1}{\phi} - 1\right) \log(y_i) - \frac{y_i}{\mu_i \phi} \right].

Gamma loss

The negative log-likelihood is

\text{NLL}(\boldsymbol{\beta}) = \sum_{i=1}^n \left[ \frac{1}{\phi} \log(\mu_i \phi) + \log \Gamma\left(\frac{1}{\phi}\right) - \left(\frac{1}{\phi} - 1\right) \log(y_i) + \frac{y_i}{\mu_i \phi} \right].

Since \phi is a nuisance parameter \text{NLL}(\boldsymbol{\beta}) = \sum_{i=1}^n \left[ \frac{1}{\phi} \log(\mu_i) + \frac{y_i}{\mu_i \phi} \right] + \text{const} \propto \sum_{i=1}^n \left[ \log(\mu_i) + \frac{y_i}{\mu_i} \right].

Note

As \log(\mu_i) = \log(y_i) - \log(y_i / \mu_i), we could write an alternative version \text{NLL}(\boldsymbol{\beta}) \propto \sum_{i=1}^n \left[ \log(y_i) - \log\Bigl(\frac{y_i}{\mu_i}\Bigr) + \frac{y_i}{\mu_i} \right] \propto \sum_{i=1}^n \left[ \frac{y_i}{\mu_i} - \log\Bigl(\frac{y_i}{\mu_i}\Bigr) \right].

All of these examples show the overlap between the world of probability and the world of statistical machine learning. They are both trying to solve the same problem, and in fact use the same methods to solve those problems.

Why do actuaries use GLMs?

• GLMs are interpretable.
• GLMs are flexible (can handle different types of response variables).
• We get the full distribution of the response variable, not just the mean.

This last point is particularly important for analysing worst-case scenarios.

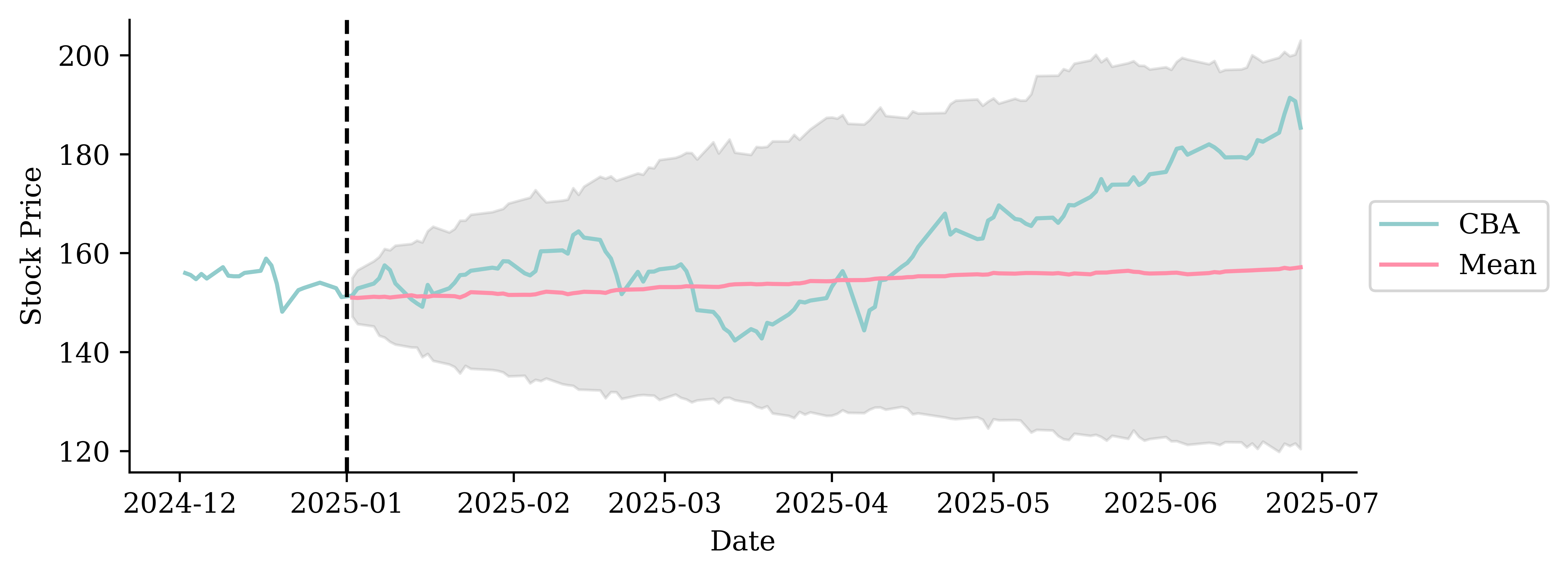

Stochastic Forecasts

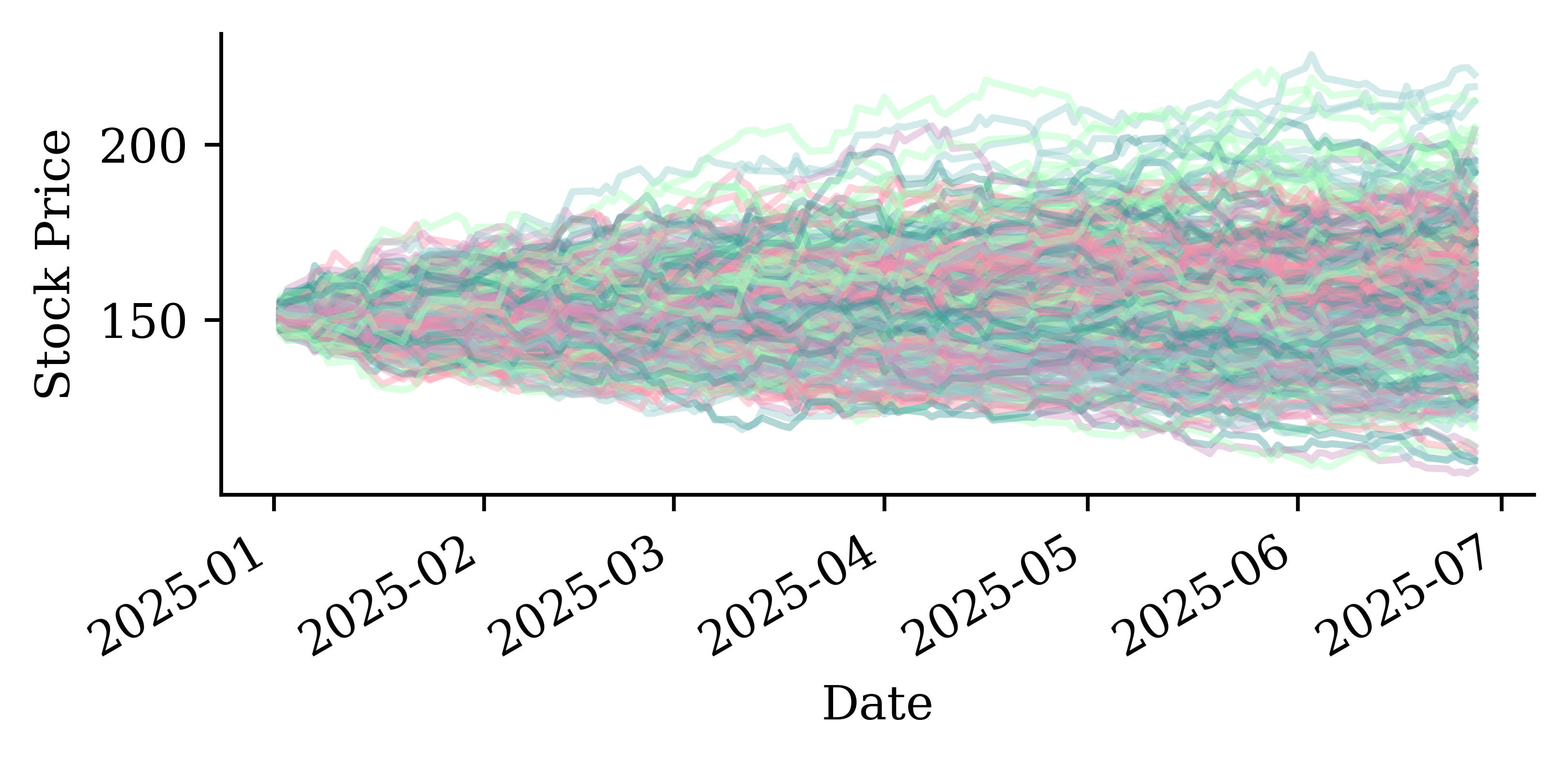

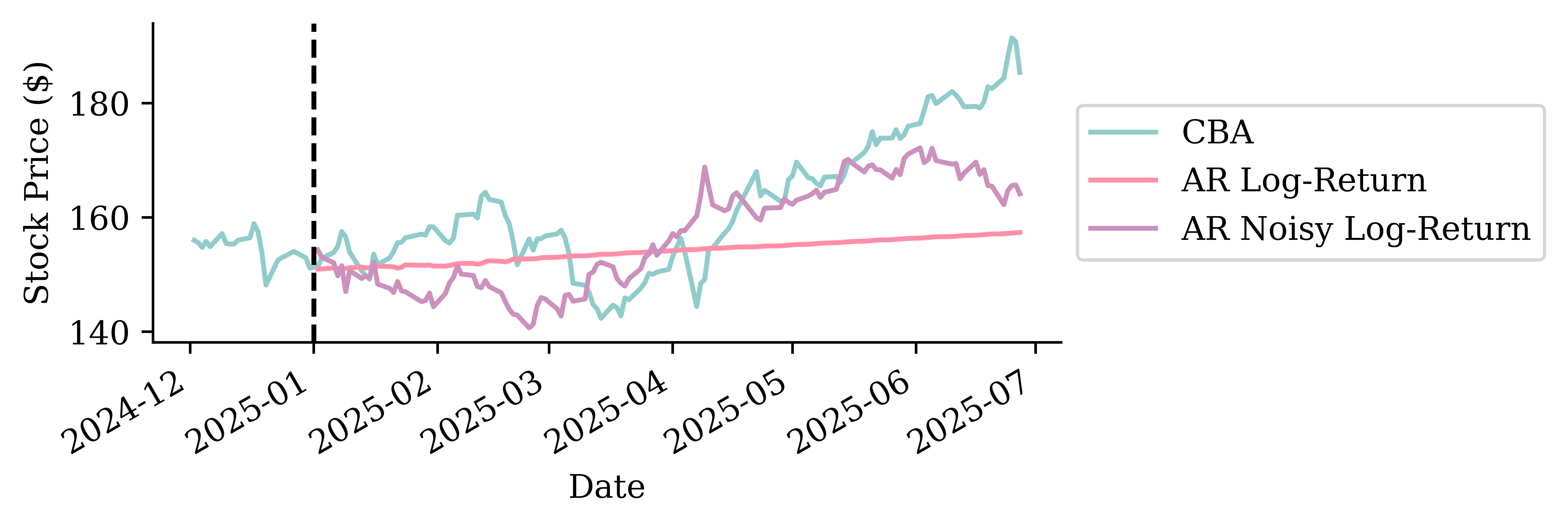

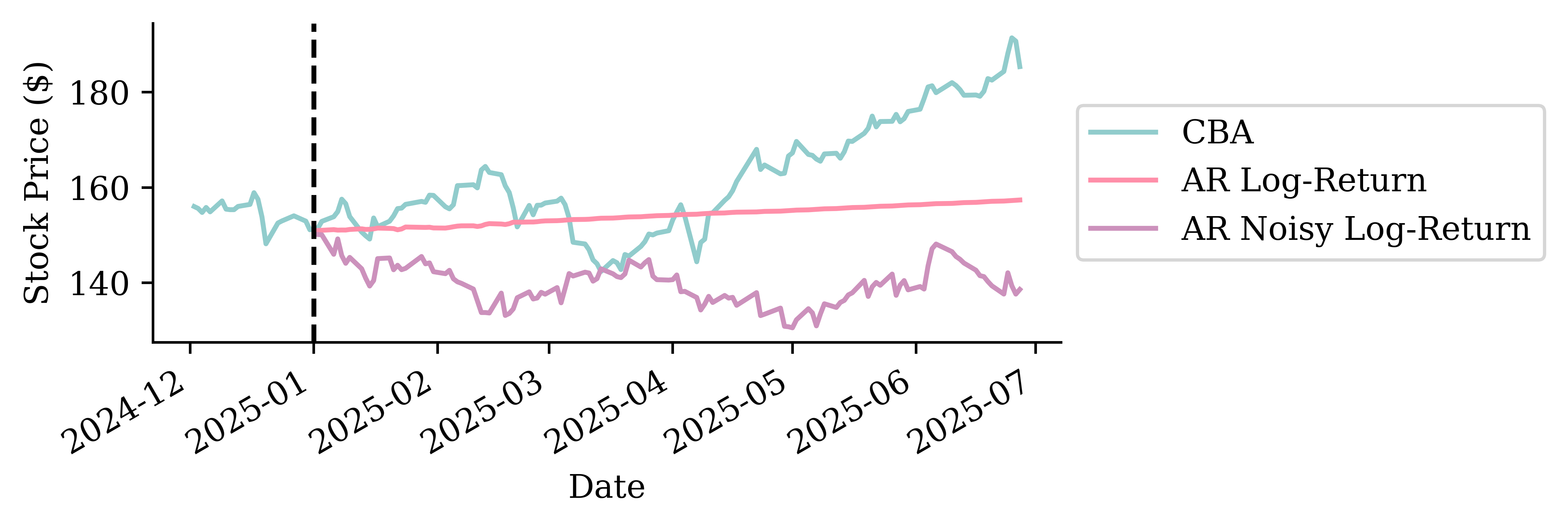

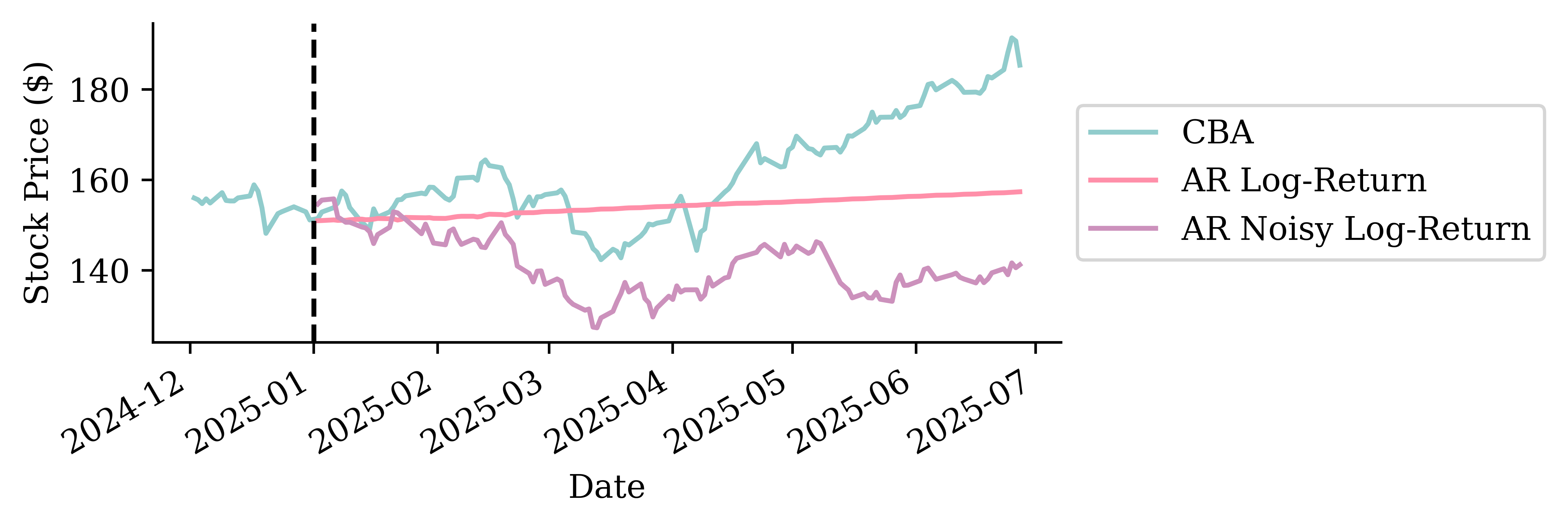

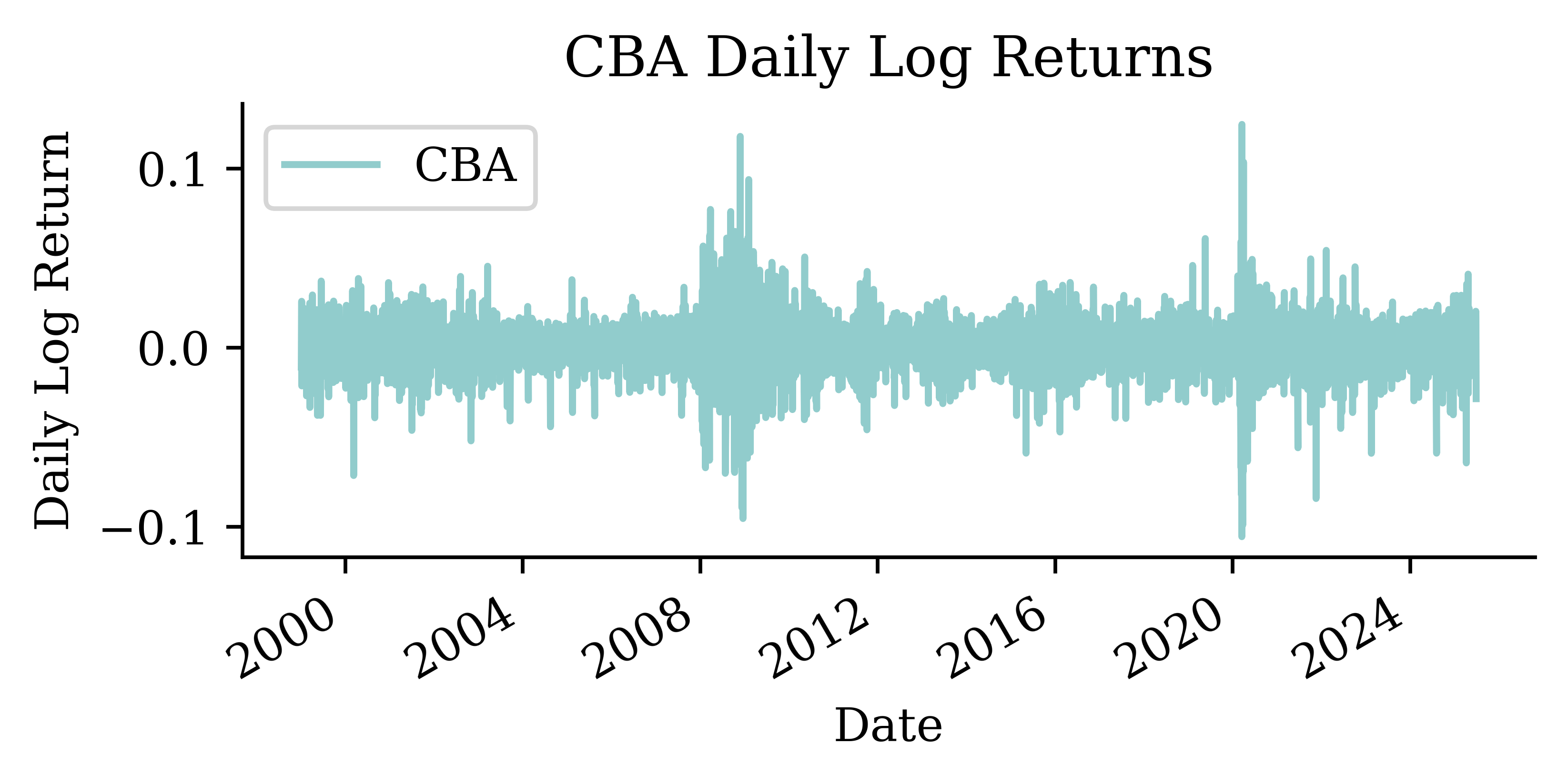

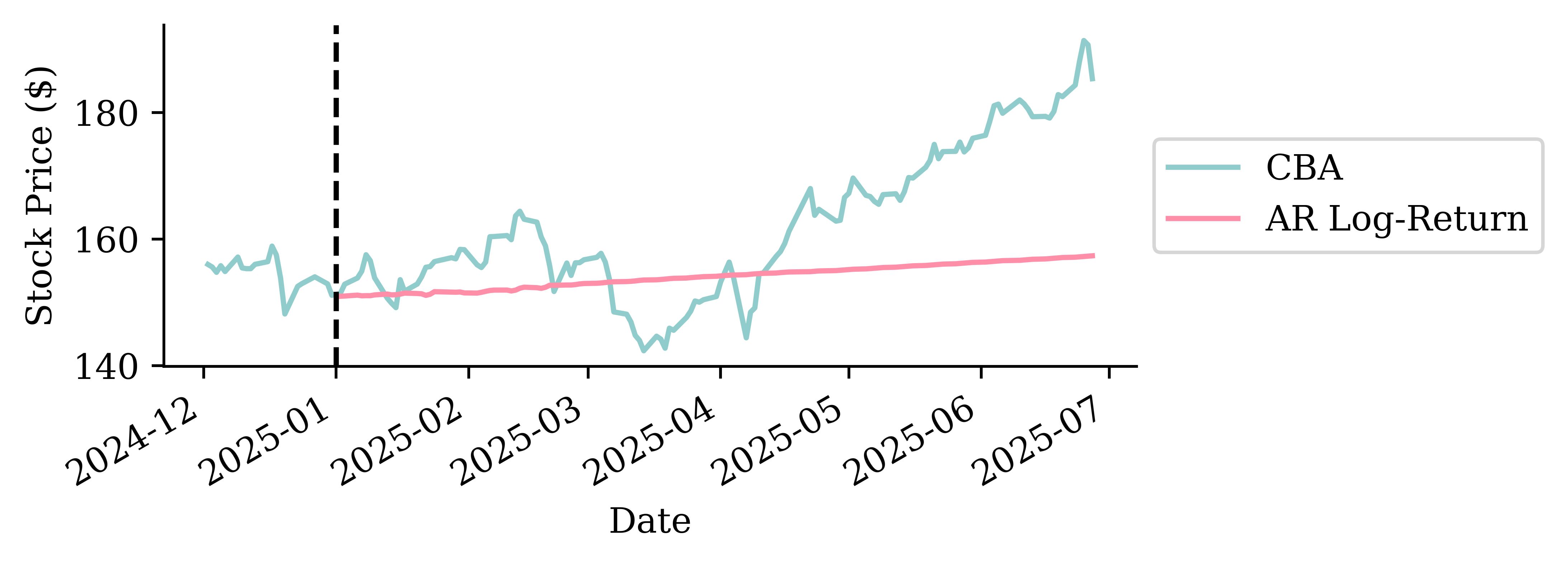

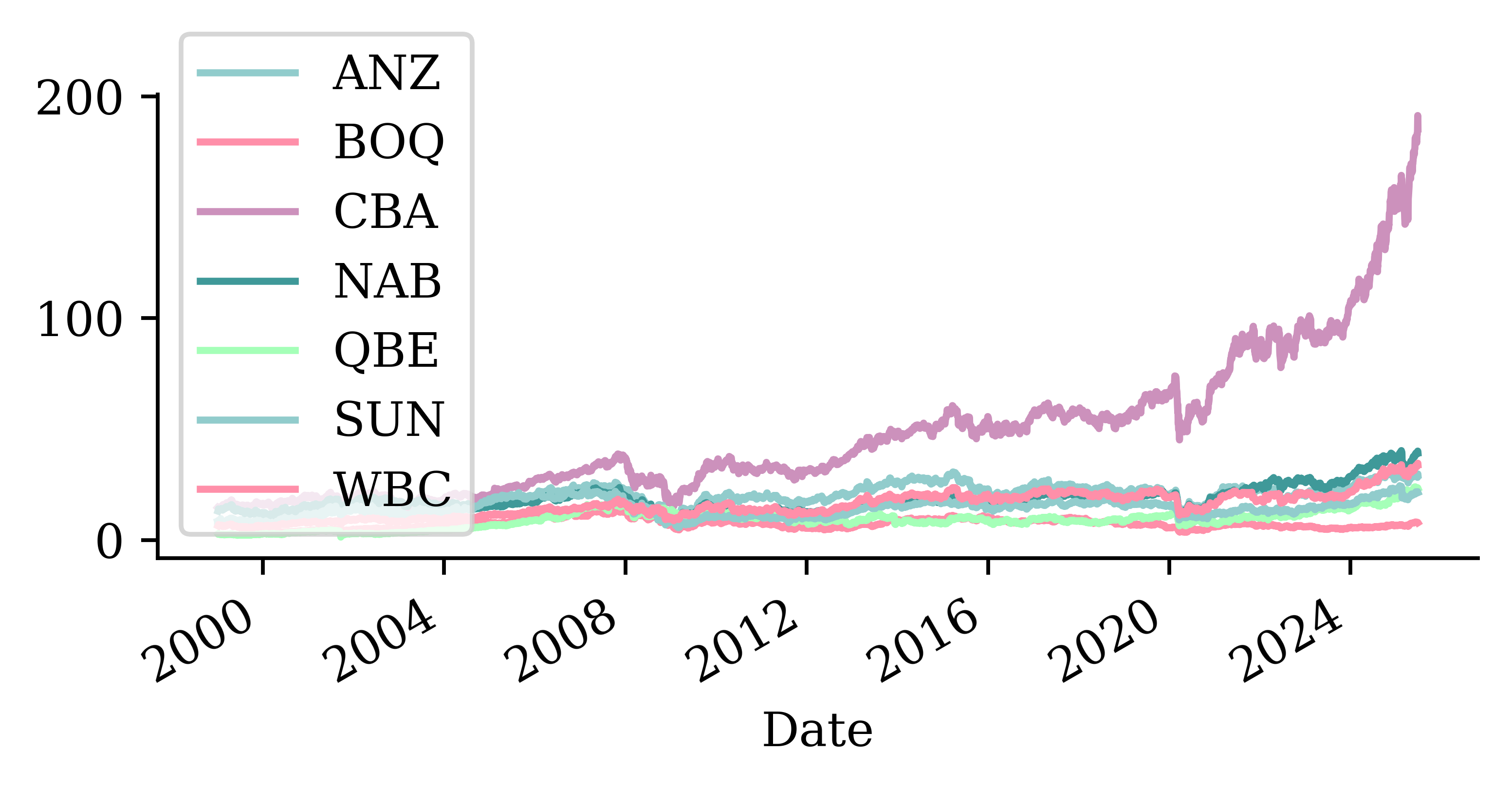

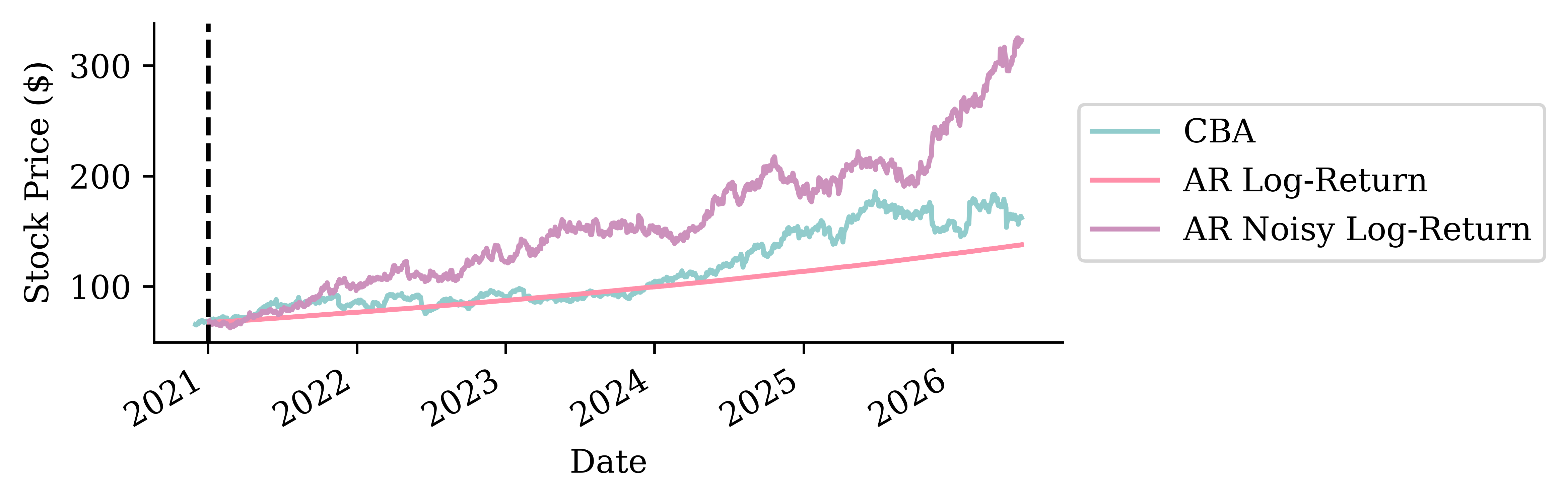

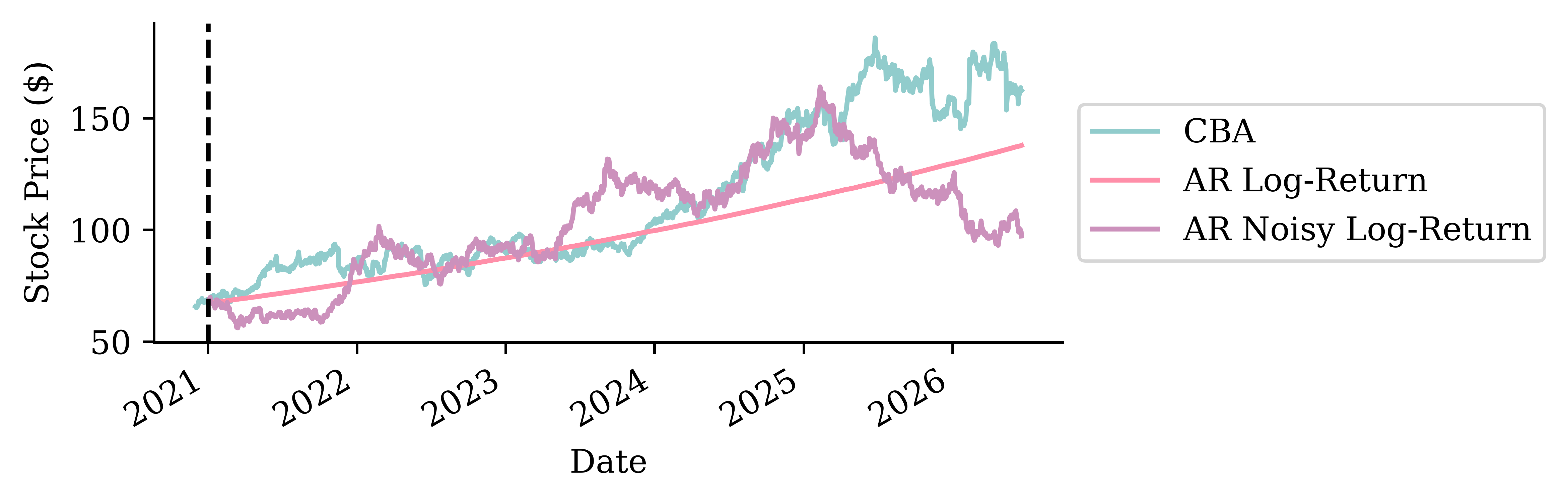

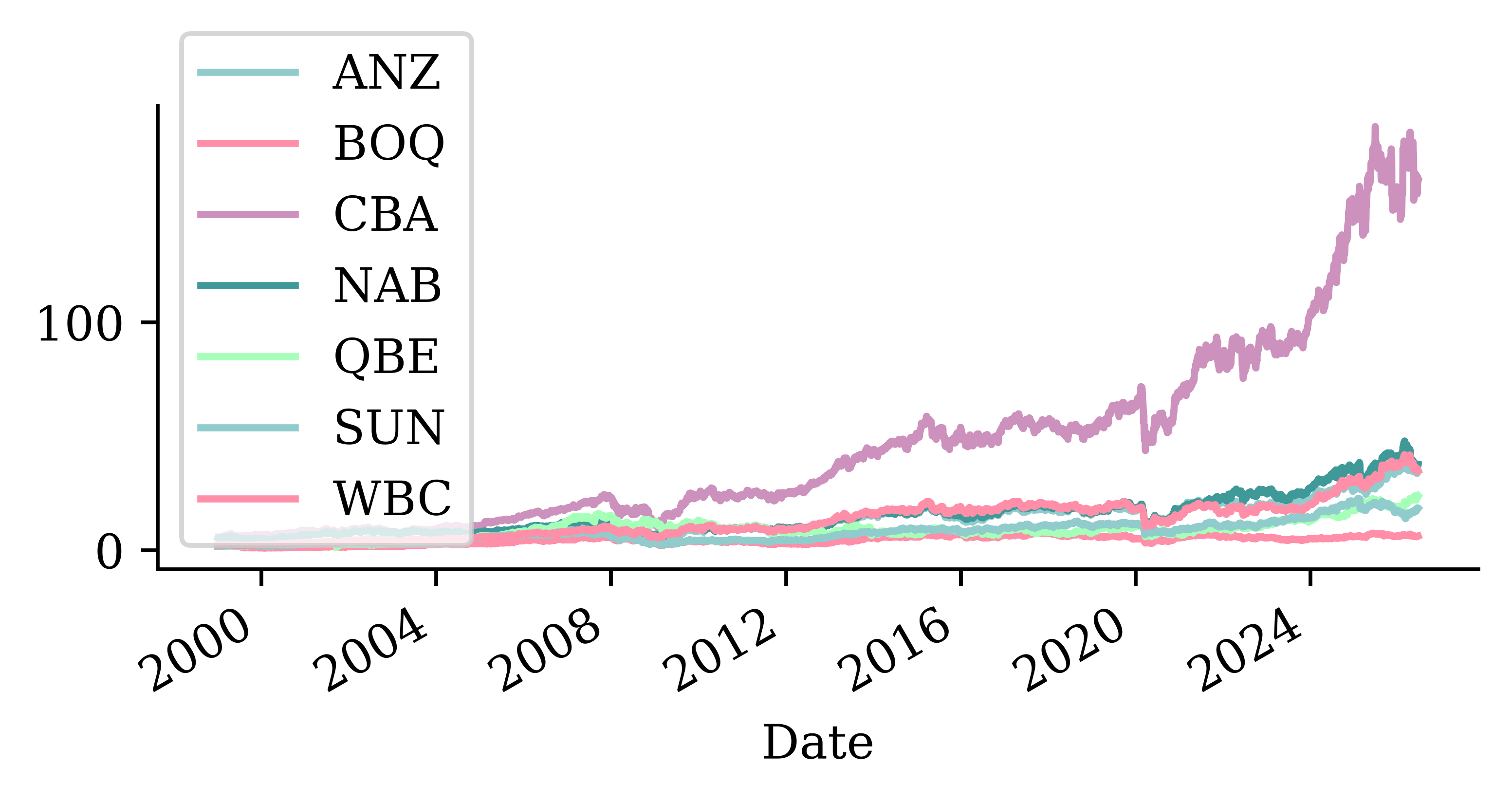

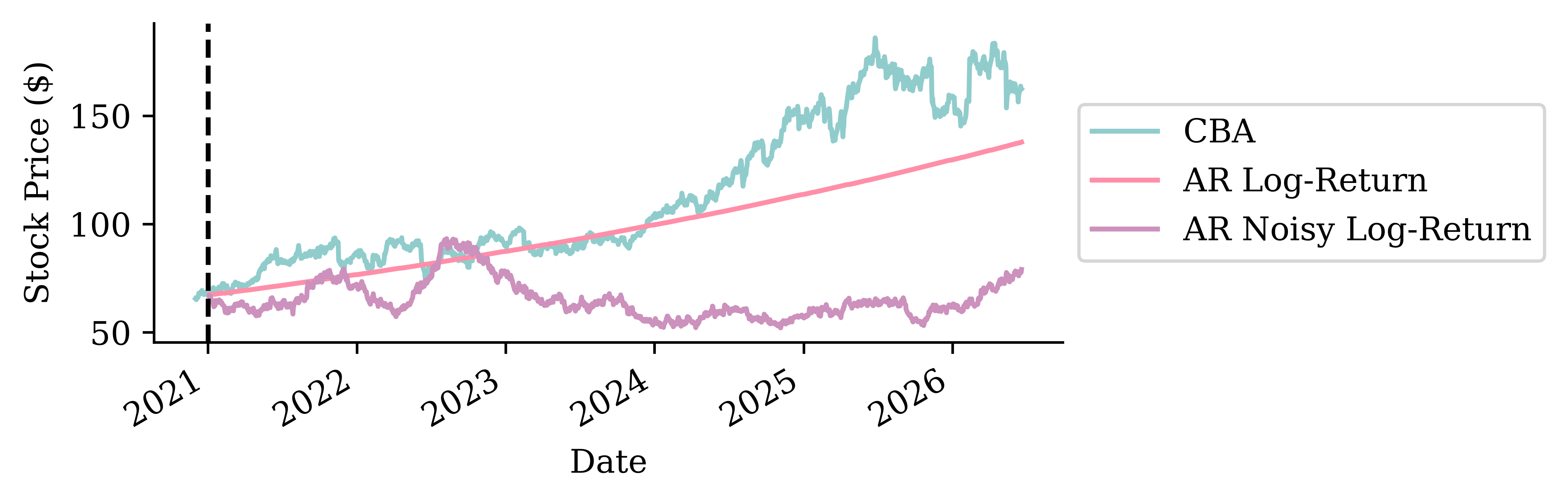

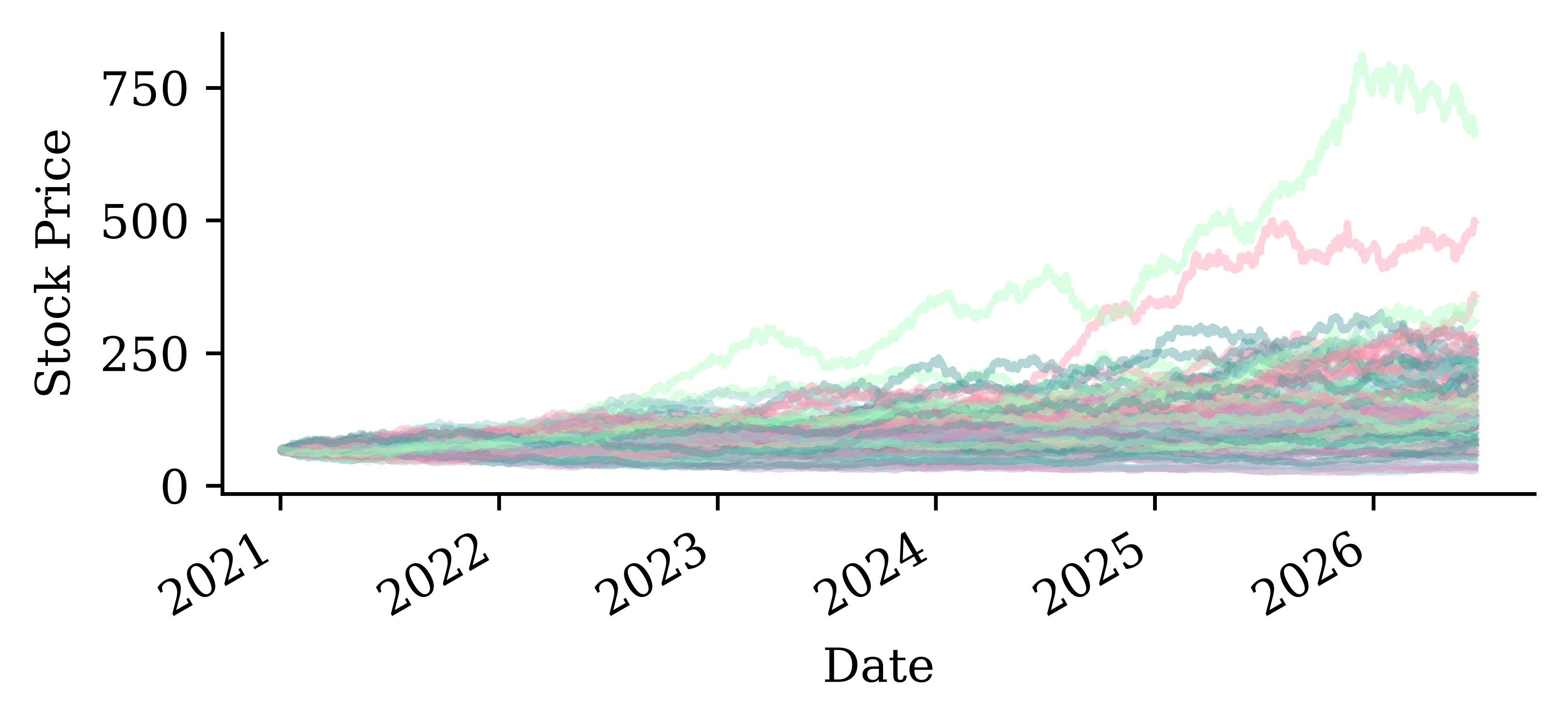

Stock price forecasting

def lagged_timeseries(df, target, window):
    lagged = pd.DataFrame()
    for i in range(window, 0, -1):
        lagged[f"T-{i}"] = df[target].shift(i)
    lagged["T"] = df[target].values
    return lagged


stocks = pd.read_csv("data/interim/aus_fin_stocks.csv")
stocks["Date"] = pd.to_datetime(stocks["Date"])
stocks = stocks.set_index("Date")
_ = stocks.pop("ASX200")
stock = stocks[["CBA"]]
stock = stock.ffill()

# Compute daily log returns
stock_log = np.log(stock / stock.shift(1)).dropna()

# Helper functions for converting log returns to prices
def log_to_price(log_returns, initial_price):
    cumulative_log_returns = log_returns.cumsum()
    return initial_price * np.exp(cumulative_log_returns)

def get_last_price(stock_df, cutoff_date):
    last_known_date = stock_df.loc[:cutoff_date].index[-1]
    return stock_df.loc[last_known_date, "CBA"]

# Create lagged features from log returns
df_lags = lagged_timeseries(stock_log, "CBA", 40)

# Split the data in time (same cutoffs as the Time Series lecture)
X_train = df_lags.loc[:"2014"]
X_val = df_lags.loc["2015":"2020"]
X_test = df_lags.loc["2021":]

# Remove any with NAs and split into X and y
X_train = X_train.dropna()
X_val = X_val.dropna()
X_test = X_test.dropna()

y_train = X_train.pop("T")
y_val = X_val.pop("T")
y_test = X_test.pop("T")

lr = LinearRegression()
lr.fit(X_train, y_train);

stocks.plot();

stock_log.plot()
plt.ylabel("Daily Log Return")
plt.title("CBA Daily Log Returns");

Noisy auto-regressive forecast

Remember the auto-regressive forecast: based on the stock’s log return history up to yesterday, predict today’s stock price.

What about tomorrow’s stock price? \longrightarrow Assume today’s prediction actually occurred, and use that to predict tomorrow’s price.

This time, add noise to the forecasts.

def noisy_autoregressive_forecast(model, X_val, sigma):
    """Roll a one-step model forward, feeding each (noisy) prediction back in."""
    window = np.asarray(X_val.iloc[0], dtype="float32").copy()
    preds = []
    for _ in range(len(X_val)):
        X_next = pd.DataFrame(window.reshape(1, -1), columns=X_val.columns)
        next_value = model.predict(X_next).flatten()[0]
1        next_value += np.random.normal(0, sigma)
        preds.append(next_value)
        window = np.append(window[1:], next_value)  # drop oldest, add prediction
    return pd.Series(preds, index=X_val.index, name="Multi Step")

1

Add random normal noise with a specified variance to the prediction.

In this model, we assume that: \hat y_{t+1} \sim \mathcal N (\mu_i, \sigma^2)

This is equivalent to \hat y_{t+1} = \mu_i + \varepsilon, \quad \varepsilon \sim \mathcal{N}(0,\sigma^2)

which is what we see in the code.

Original forecast

lr_forecast = noisy_autoregressive_forecast(lr, X_test, 0)
last_price = get_last_price(stock, cutoff_date="2020-12")
price_forecast = log_to_price(lr_forecast, last_price)

stock.loc[price_forecast.index, "AR Log-Return"] = price_forecast

def plot_forecasts(stock):
    stock.loc["2020-12":].plot()
    plt.axvline("2021", color="black", linestyle="--")
    plt.ylabel("Stock Price ($)")
    plt.legend(loc="center left", bbox_to_anchor=(1, 0.5))

plot_forecasts(stock)

residuals = y_val - lr.predict(X_val)
sigma = np.std(residuals)

With noise

np.random.seed(1)
lr_noisy_forecast = noisy_autoregressive_forecast(lr, X_test, sigma)
price_noisy = log_to_price(lr_noisy_forecast, last_price)

stock.loc[price_noisy.index, "AR Noisy Log-Return"] = price_noisy
plot_forecasts(stock)

This noisy forecast seems much more realistic than the non-noisy AR forecast.

With noise

np.random.seed(2)
lr_noisy_forecast = noisy_autoregressive_forecast(lr, X_test, sigma)
price_noisy = log_to_price(lr_noisy_forecast, last_price)

stock.loc[price_noisy.index, "AR Noisy Log-Return"] = price_noisy
plot_forecasts(stock)

With noise

np.random.seed(3)
lr_noisy_forecast = noisy_autoregressive_forecast(lr, X_test, sigma)
price_noisy = log_to_price(lr_noisy_forecast, last_price)

stock.loc[price_noisy.index, "AR Noisy Log-Return"] = price_noisy
plot_forecasts(stock)

Many noisy forecasts

num_forecasts = 100
forecasts = []
for i in range(num_forecasts):
    sim = log_to_price(noisy_autoregressive_forecast(lr, X_test, sigma), last_price)
    forecasts.append(sim)
noisy_forecasts = pd.concat(forecasts, axis=1)
noisy_forecasts.index = X_test.index

noisy_forecasts.plot(legend=False, alpha=0.4)
plt.ylabel("Stock Price");

This plot contains 100 simulated forecasts of the stock price over time. We see that the variance in the predictions increases with time. This makes sense as we are accumulating the random components over time.

95% “prediction intervals”

# Calculate quantiles for the forecasts
lower_quantile = noisy_forecasts.quantile(0.025, axis=1)
upper_quantile = noisy_forecasts.quantile(0.975, axis=1)
mean_forecast = noisy_forecasts.mean(axis=1)

# Plot the mean forecast
plt.figure(figsize=(8, 3))

plt.plot(stock.loc["2020-12":].index, stock.loc["2020-12":]["CBA"], label="CBA")

plt.plot(mean_forecast, label="Mean")

# Plot the quantile-based shaded area
plt.fill_between(mean_forecast.index,
                 lower_quantile,
                 upper_quantile,
                 color="grey", alpha=0.2)

# Plot settings
plt.axvline(pd.Timestamp("2021-01-01"), color="black", linestyle="--")
plt.legend(loc="center left", bbox_to_anchor=(1, 0.5))
plt.xlabel("Date")
plt.ylabel("Stock Price")
plt.tight_layout();

The band fans out as the horizon grows, because each day’s random shock accumulates: a year into the test period the 95% interval is already roughly $50–$120, and by the end (over five years out) it spans something like $50–$400. That is honest about how little we can say about a near-random-walk so far ahead — but notice the realised price stays inside the band the whole way.

Residuals

y_pred = lr.predict(X_train)
residuals = y_train - y_pred
residuals -= np.mean(residuals)
residuals /= np.std(residuals)
stats.shapiro(residuals)

ShapiroResult(statistic=np.float64(0.939218900099982), pvalue=np.float64(6.991031400920509e-38))

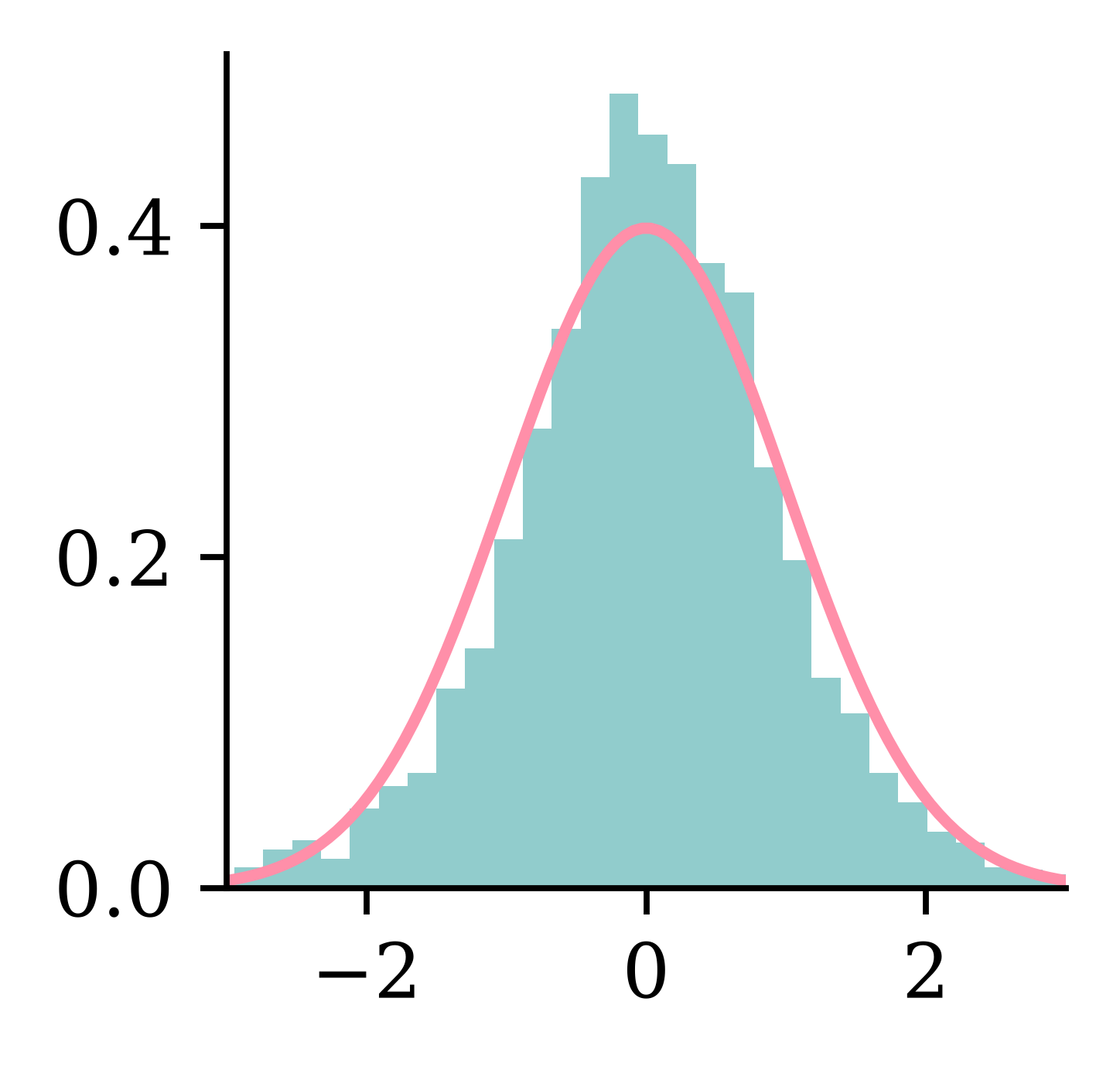

plt.hist(residuals, bins=60, density=True)
x = np.linspace(-3, 3, 100)
plt.xlim(-3, 3)
plt.plot(x, stats.norm.pdf(x, 0, 1));

How do we choose the value for sigma? Here, sigma is the standard deviation of the model’s one-step residuals on the validation set — data held out from fitting, so it gives an honest estimate of the prediction spread without touching the test set.

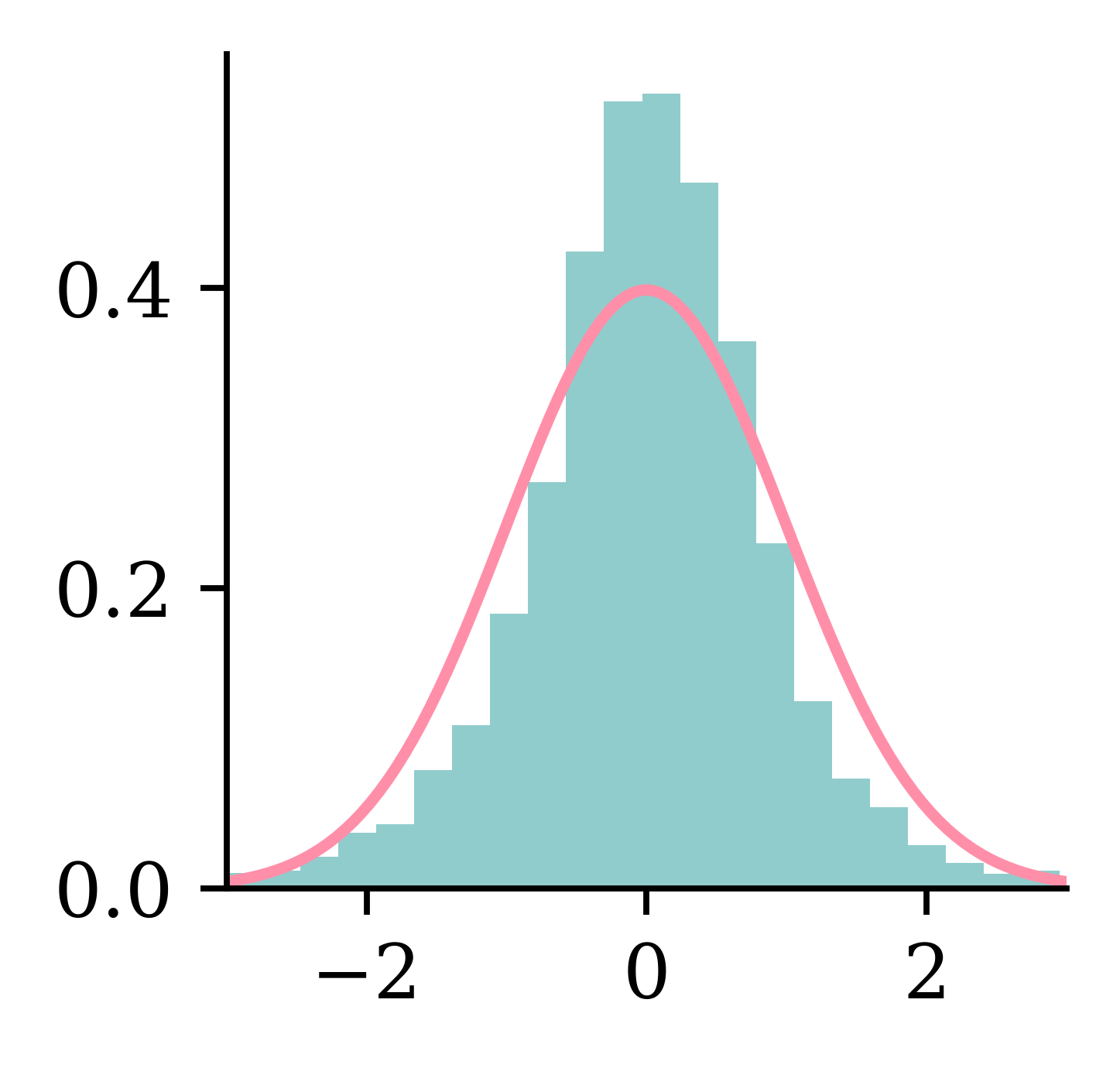

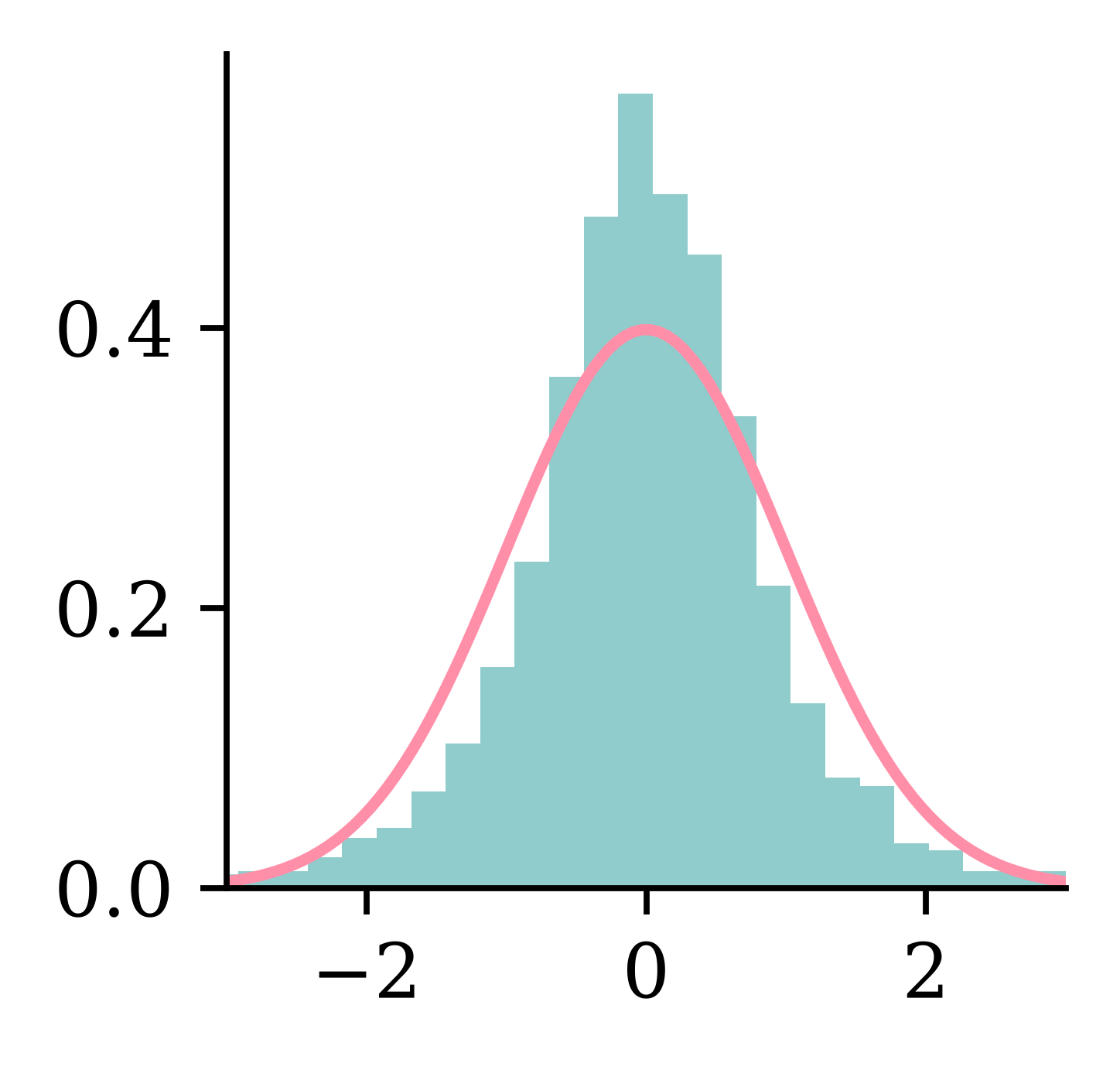

The plot above shows the histogram of the standardised residuals (on the training set) and the standard normal curve. Based on this plot and the Shapiro test, it appears that the residuals are not normally distributed.

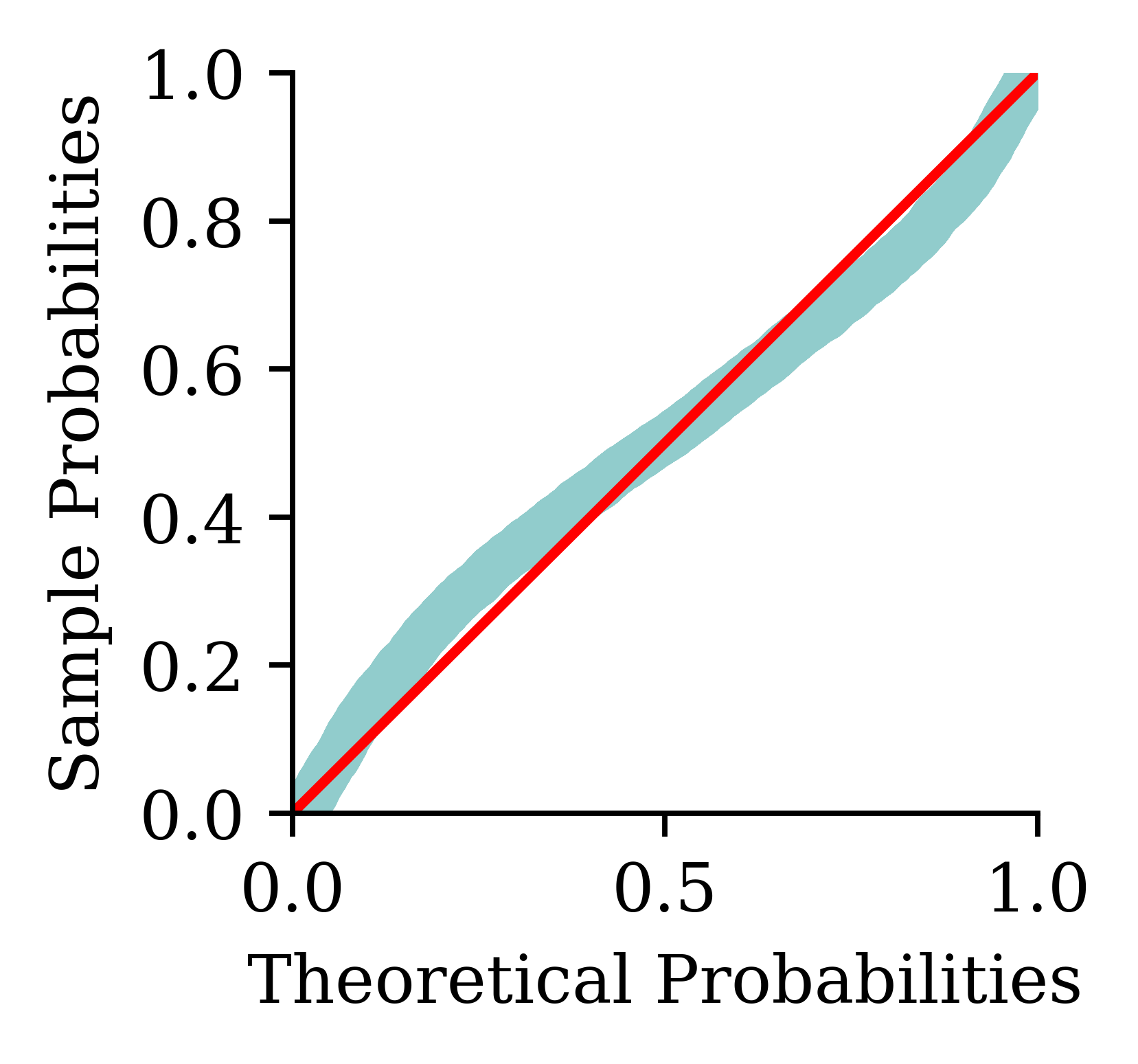

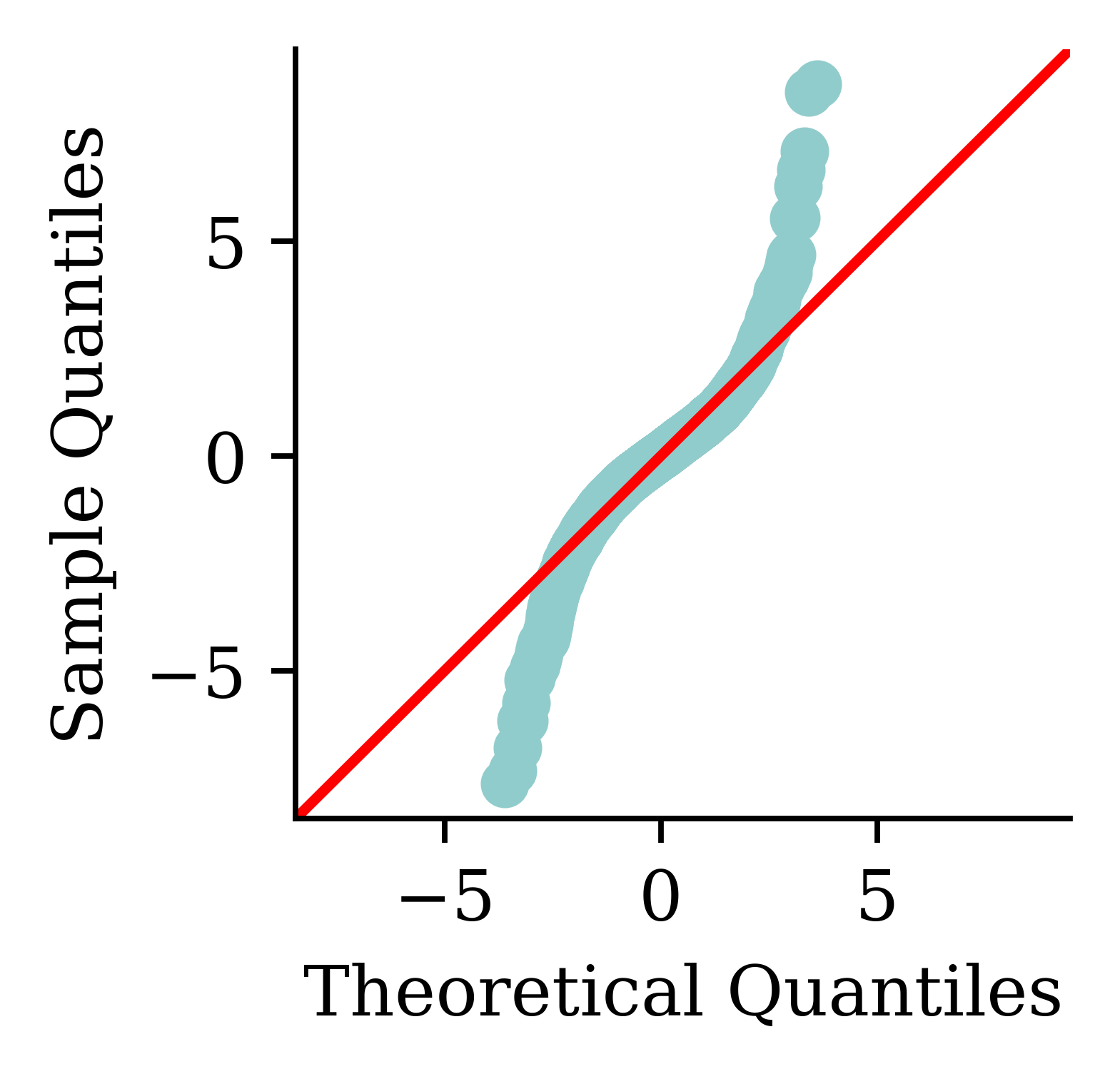

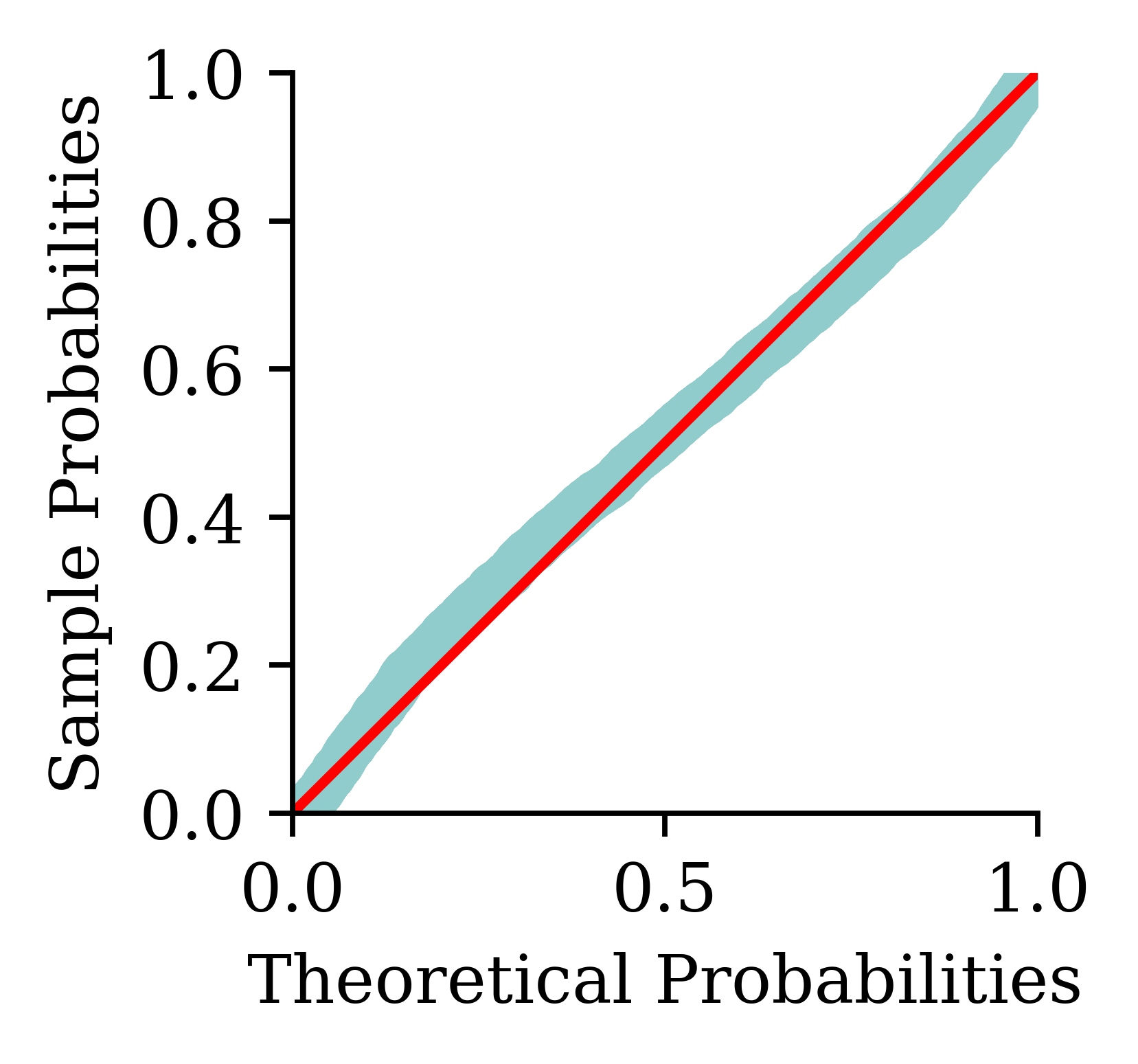

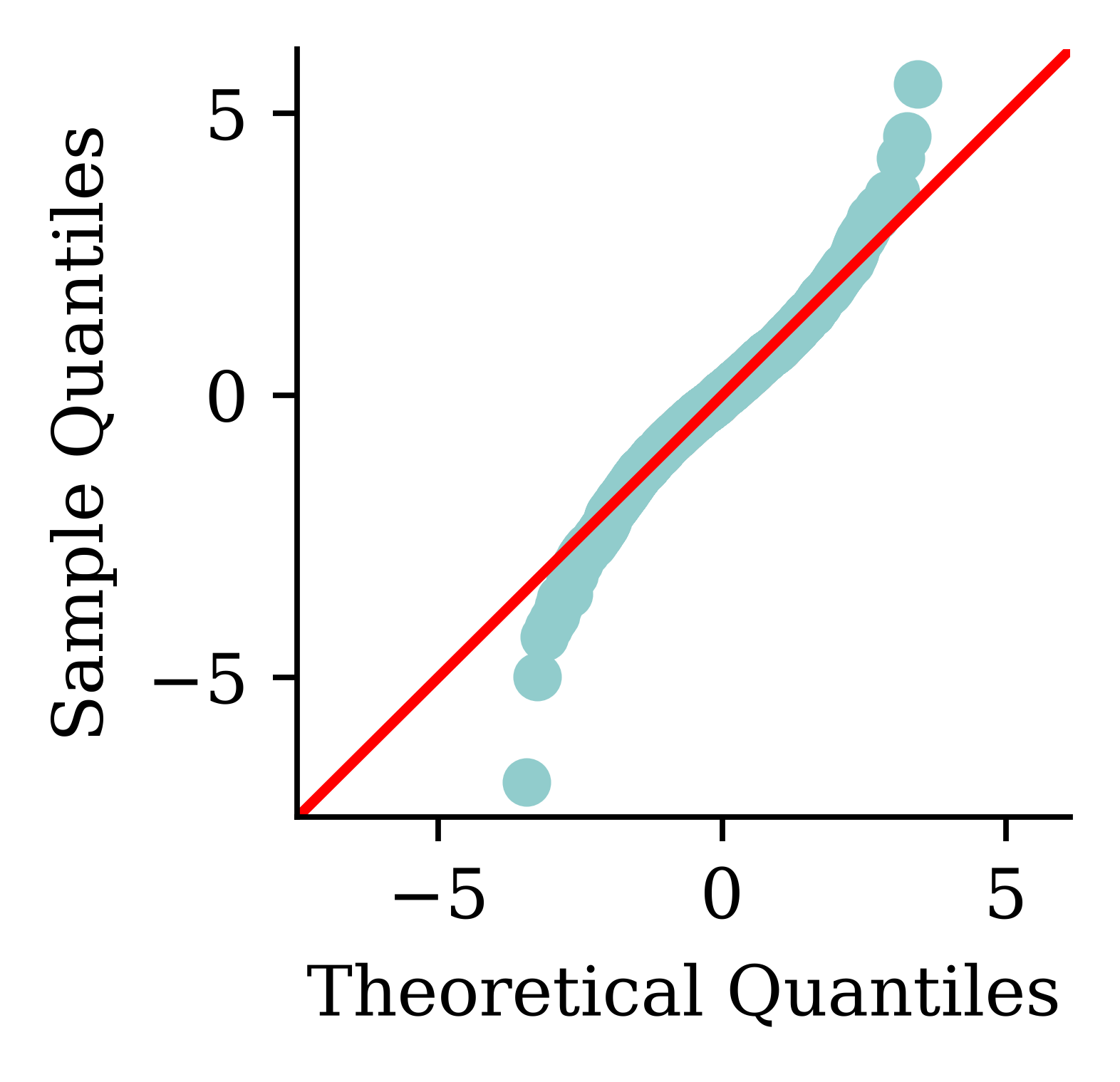

Q-Q plot and P-P plot

sm.qqplot(residuals, line="45");

sm.ProbPlot(residuals).ppplot(line="45");

The distribution of the residuals has heavier tails than the standard normal distribution.

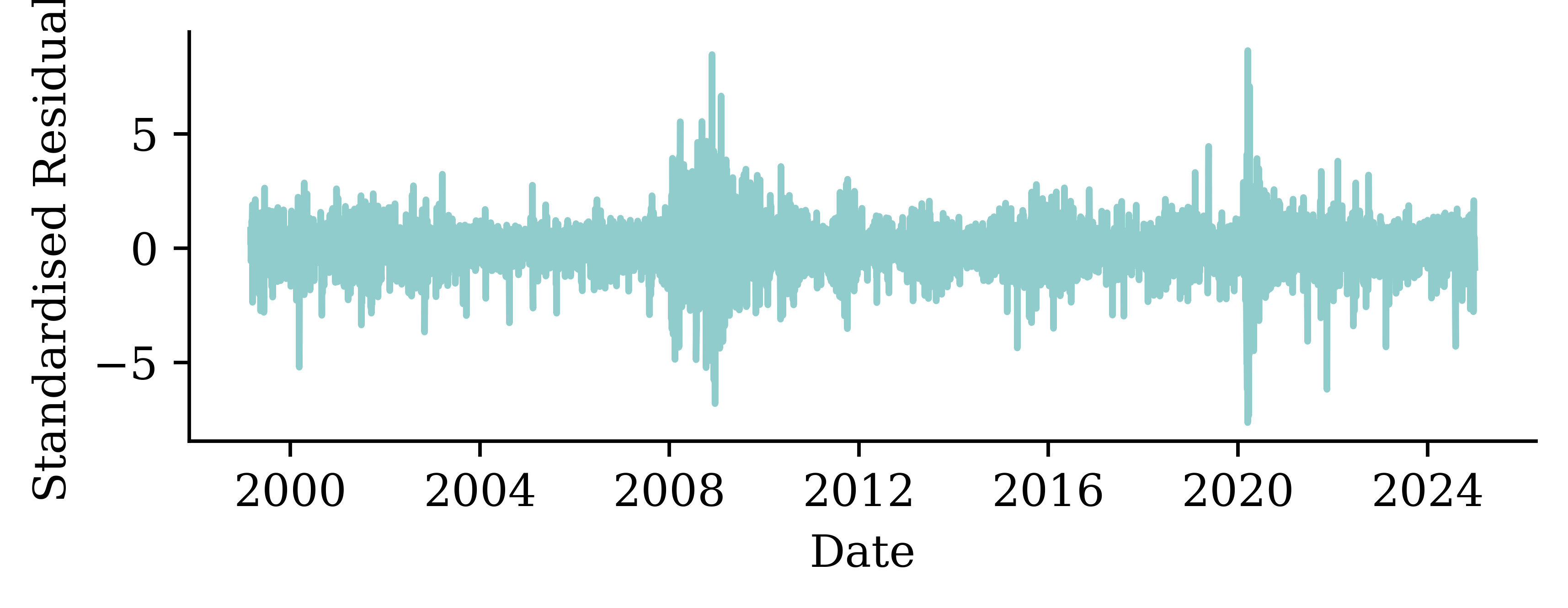

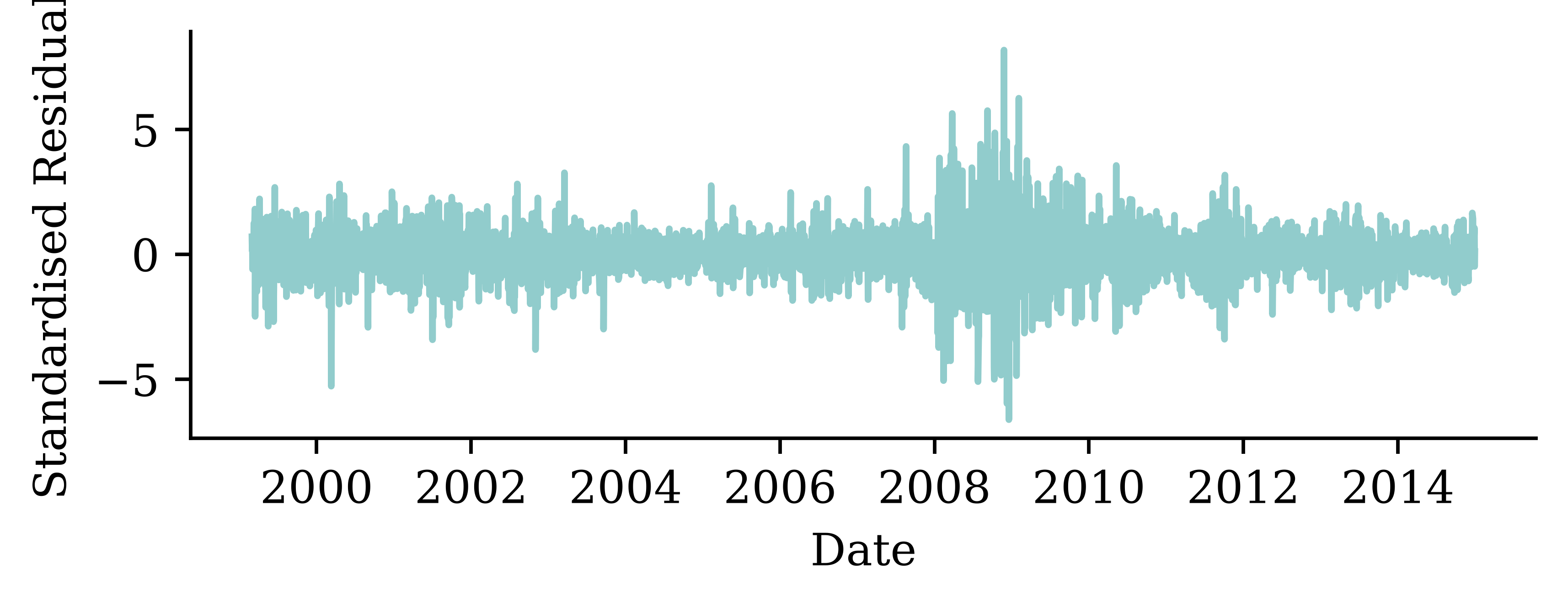

Residuals against time

plt.plot(y_train.index, residuals)
plt.xlabel("Date")
plt.ylabel("Standardised Residuals")
plt.tight_layout();

Heteroskedasticity!

The variance of the standardised residuals changes over time. Higher variance occurs during significantly volatile economic periods — most visibly the global financial crisis of 2008-2009, which dominates the training period. (The other obvious episode, the COVID crash of 2020, now falls in the held-out validation/test period rather than the training set.)

Retrain on less data

# Drop the GFC years (2008-2009) from the training set
mask = ~((y_train.index.year >= 2008) & (y_train.index.year <= 2009))
X2 = X_train.loc[mask]
y2 = y_train.loc[mask]

lr2 = LinearRegression()
lr2.fit(X2, y2)

res2 = y2 - lr2.predict(X2)
res2 = (res2 - np.mean(res2)) / np.std(res2)

plt.plot(y2.index, res2)
plt.xlabel("Date")
plt.ylabel("Standardised Residuals")
plt.tight_layout();

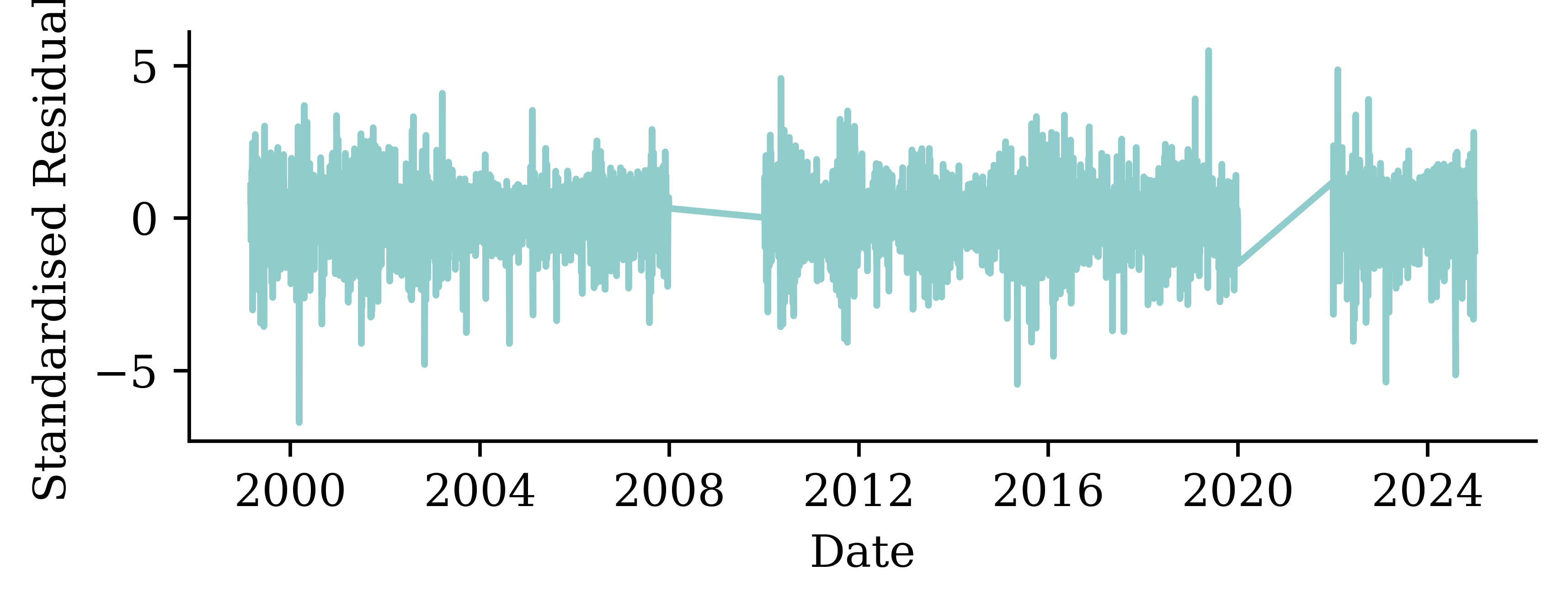

Refit the model without the GFC crisis years.

Residual diagnostics

stats.shapiro(res2)

ShapiroResult(statistic=np.float64(0.983029219714092), pvalue=np.float64(3.326265726133293e-20))

plt.hist(res2, bins=60, density=True)
x = np.linspace(-3, 3, 100)
plt.xlim(-3, 3)
plt.plot(x, stats.norm.pdf(x, 0, 1));

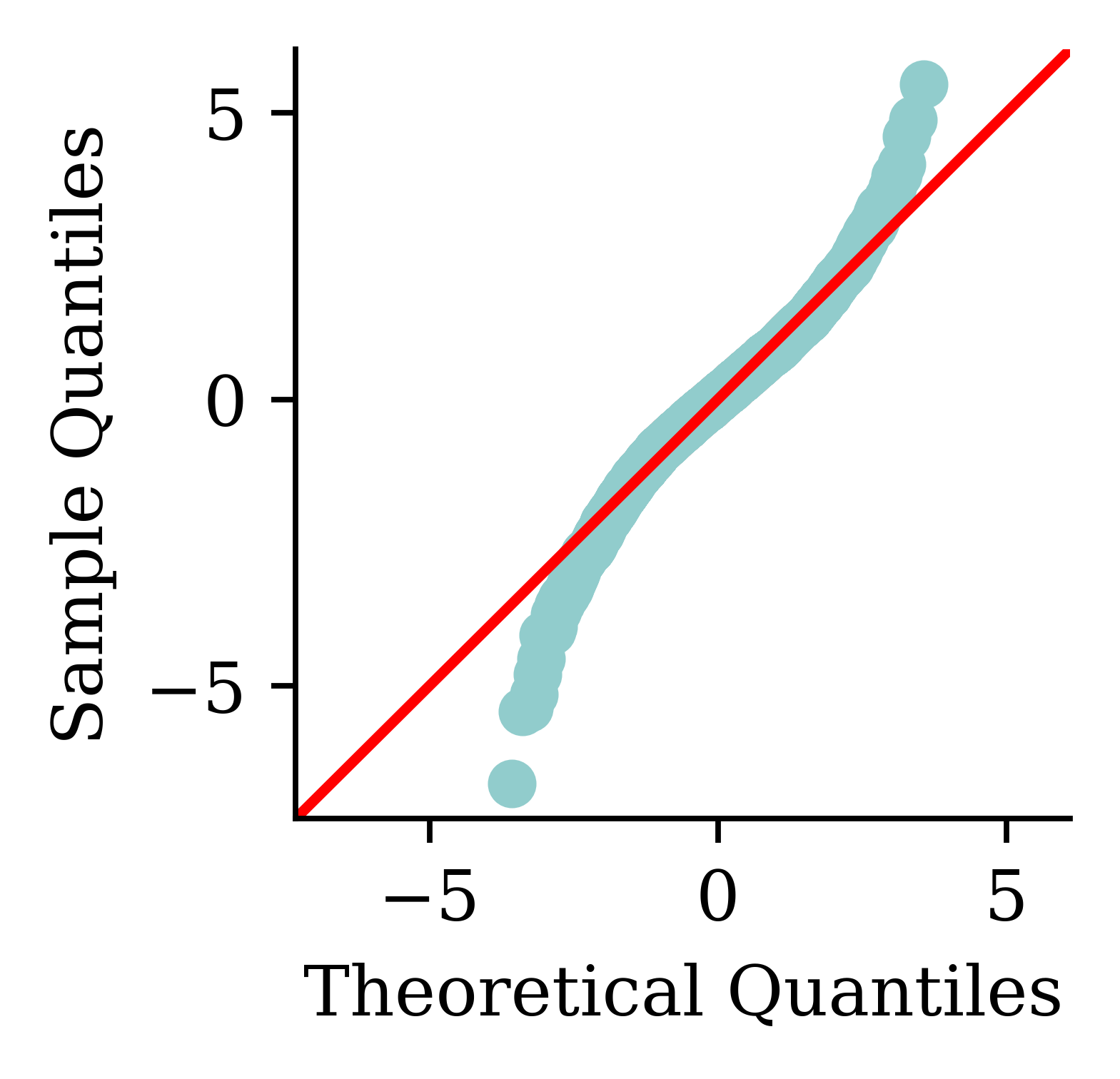

sm.qqplot(res2, line="45");

sm.ProbPlot(res2).ppplot(line="45");

While the distribution looks closer, it is still significantly far from normally distributed. At this point, we should question the validity of the normal distribution assumption we made.

GLMs and Neural Networks

French motor claim sizes

As freMTPL2sev just has Policy ID & severity, we merge with freMTPL2freq which has Policy ID, # Claims, and other covariates.

sev = pd.read_csv('data/freMTPL2sev.csv')
cov = pd.read_csv('data/freMTPL2freq.csv').drop(columns=['ClaimNb'])
1sev = pd.merge(sev, cov, on='IDpol', how='left').drop(columns=["IDpol"]).dropna()
sev

1

Merges the severity dataframe sev with the covariates in cov by matching the IDpol column. Assigning how='left' ensures that all rows from the left dataset sev are considered, and only the matching columns from cov are selected. Also drops the policy ID column and any rows with missing values.

	ClaimAmount	Exposure	VehPower	VehAge	DrivAge	BonusMalus	VehBrand	VehGas	Area	Density	Region
0	995.20	0.59	11.0	0.0	39.0	56.0	B12	Diesel	D	778.0	Picardie
1	1128.12	0.95	4.0	1.0	49.0	50.0	B12	Regular	E	2354.0	Ile-de-France
...	...	...	...	...	...	...	...	...	...	...	...
26637	767.55	0.43	6.0	0.0	67.0	50.0	B2	Diesel	C	142.0	Languedoc-Roussillon
26638	1500.00	0.28	7.0	2.0	36.0	60.0	B12	Diesel	D	1732.0	Rhone-Alpes

26444 rows × 11 columns

Preprocessing

X_train, X_test, y_train, y_test = train_test_split(
1  sev.drop("ClaimAmount", axis=1), sev["ClaimAmount"], random_state=2023)
ct = make_column_transformer(
    (make_pipeline(OrdinalEncoder(), StandardScaler()), ["Area", "VehGas"]),
2    ("drop", ["VehBrand", "Region"]), remainder=StandardScaler())
3X_train = ct.fit_transform(X_train)
4X_test = ct.transform(X_test)
plt.hist(y_train[y_train < 5000], bins=30);

1

Split the data into train and test sets

2

Ordinal-encode Area and VehGas and then standardise them, and apply standard scaling to all remaining numerical variables, so every input is on a mean 0 / std 1 scale. To simplify things, VehBrand and Region variables are dropped from the dataframe.

3

Fit the column transformer to the train set and apply it

4

Apply the column transformer to the test set

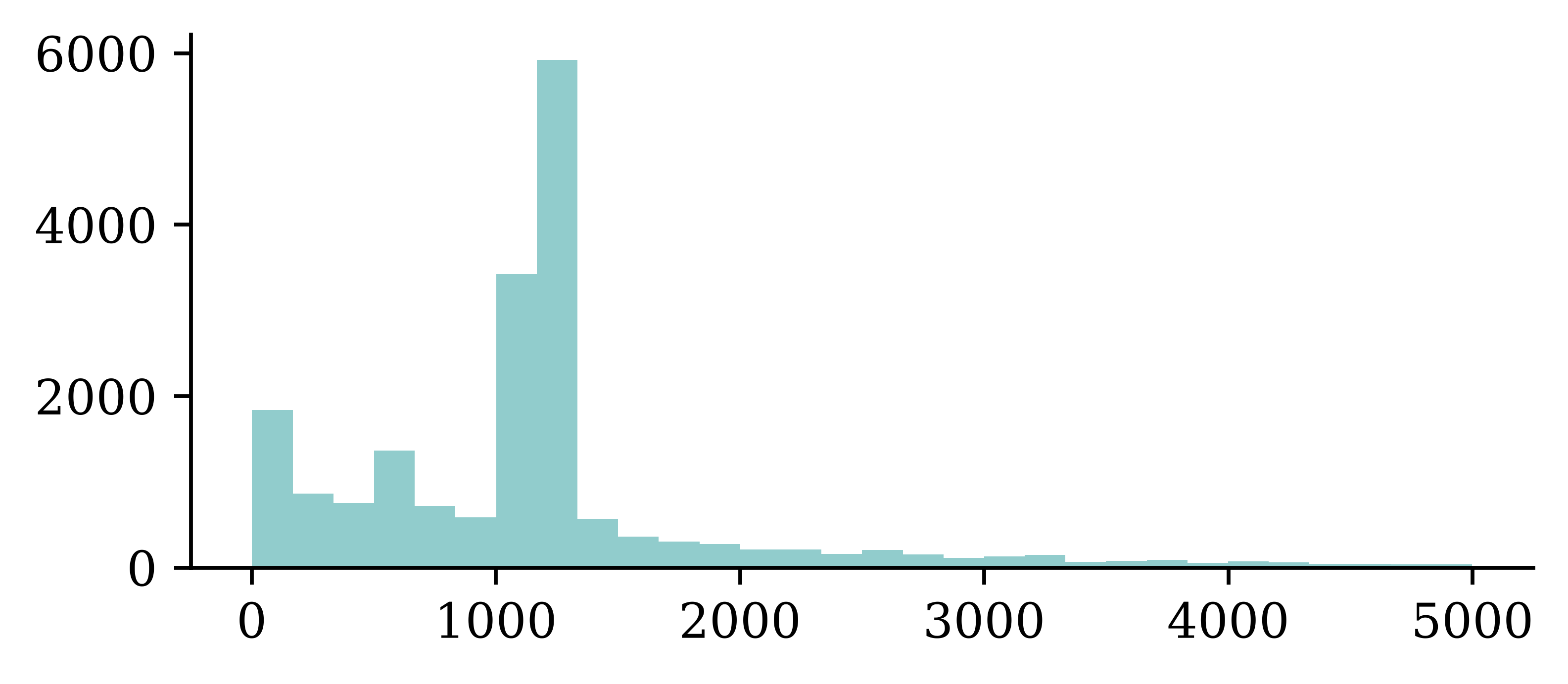

Plotting the empirical distribution of the target variable ClaimAmount helps us to get an understanding of the inherent variability associated with the data. The data appears to be multimodal.

Doesn’t prove that Y | \boldsymbol{X} = \boldsymbol{x} is multimodal

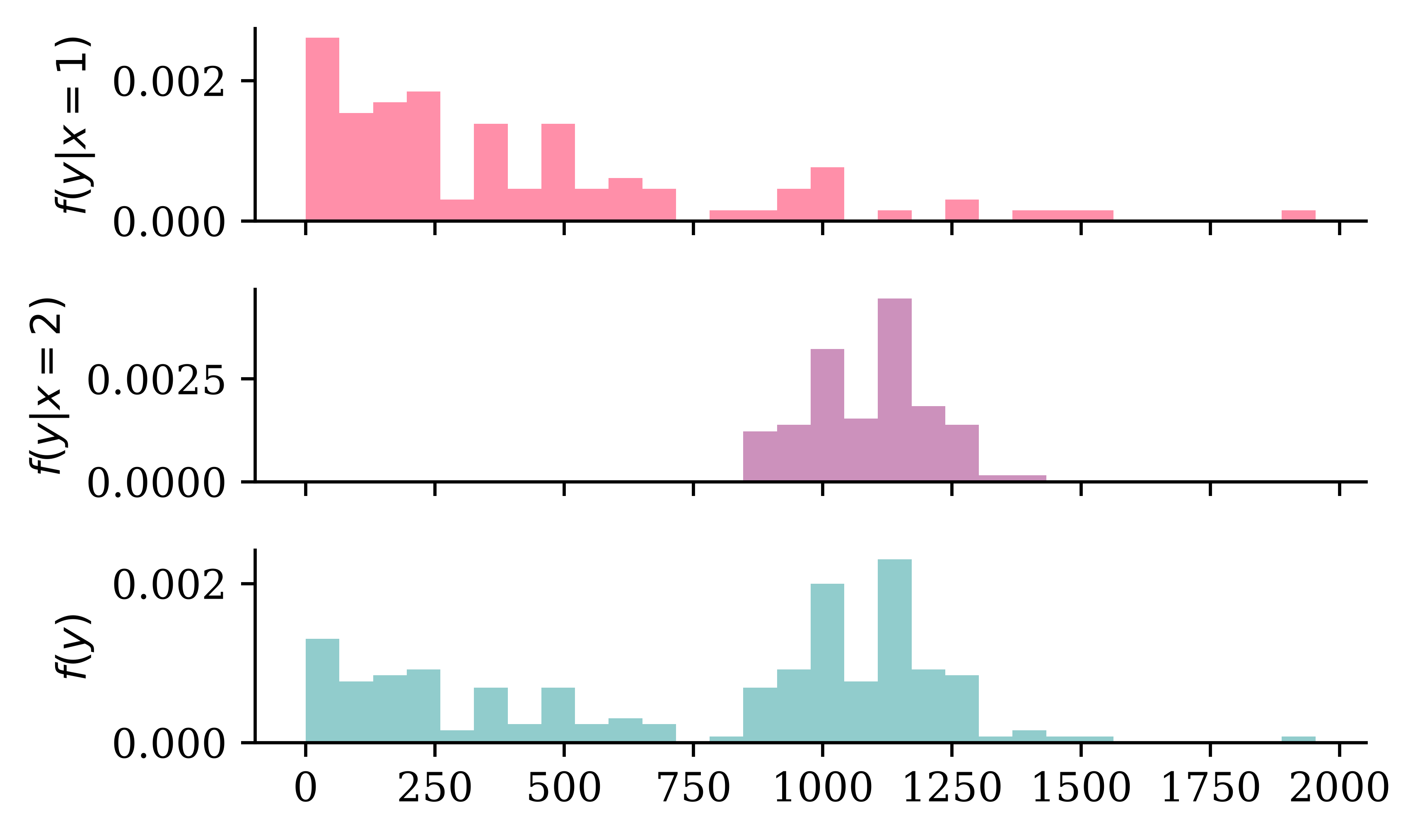

# Make some example where the distribution is multimodal because of a binary covariate which separates the means of the two distributions
np.random.seed(1)

fig, axes = plt.subplots(3, 1, figsize=(5.0, 3.0), sharex=True)

x_min = 0
x_max = y_train.max()
x_grid = np.linspace(x_min, x_max, 100)

# Simulate some data from an exponential distribution which has Pr(X < 1000) = 0.9
n = 100
p = 0.1
lambda_ = -np.log(p) / 1000
mu = 1 / lambda_
y_1 = np.random.exponential(scale=mu, size=n)

# Pick a truncated normal distribution with a mean of 1100 and std of 250 (truncated to be positive)
mu = 1100
sigma = 100
y_2 = stats.truncnorm.rvs((0 - mu) / sigma, (np.inf - mu) / sigma, loc=mu, scale=sigma, size=n)

# Combine y_1 and y_2 for the final histogram
y = np.concatenate([y_1, y_2])

# Determine common bins
bins = np.histogram_bin_edges(y, bins=30)


# Plot each normal distribution with different means vertically
for i, ax in enumerate(axes):
    if i == 0:
        ax.hist(y_1, bins=bins, density=True, color=COLOURS[i+1])
        ax.set_ylabel(f'$f(y | x = 1)$')

    elif i == 1:
        ax.hist(y_2, bins=bins, density=True, color=COLOURS[i+1])
        ax.set_ylabel(f'$f(y | x = 2)$')

    else:
        ax.hist(y, bins=bins, density=True)
        ax.set_ylabel(f'$f(y)$')

plt.tight_layout();

While the distribution of claim size from entire dataset appears to be multimodal, that does not mean that the distribution of claim size of a particular type of customer is multimodal. Two different categories of customers can have different unimodal distributions, and the combination (“mixture”) of the two categories would be multimodal.

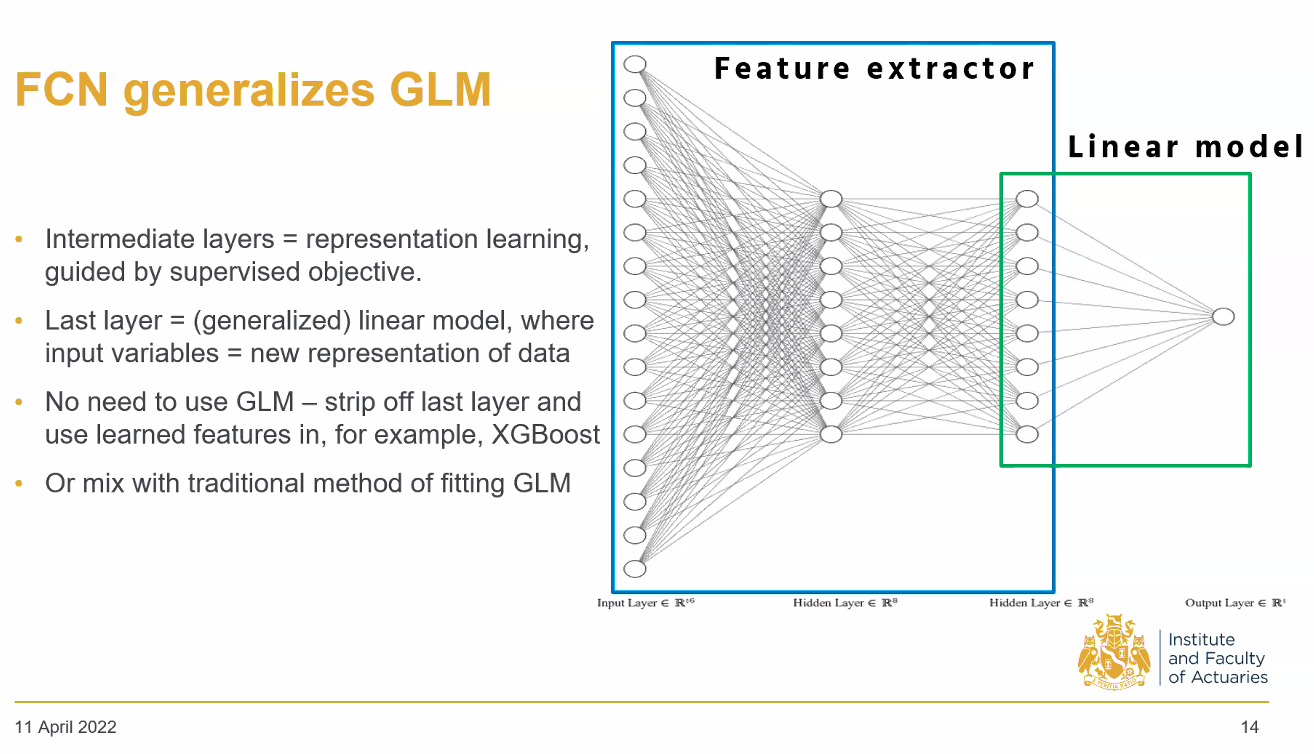

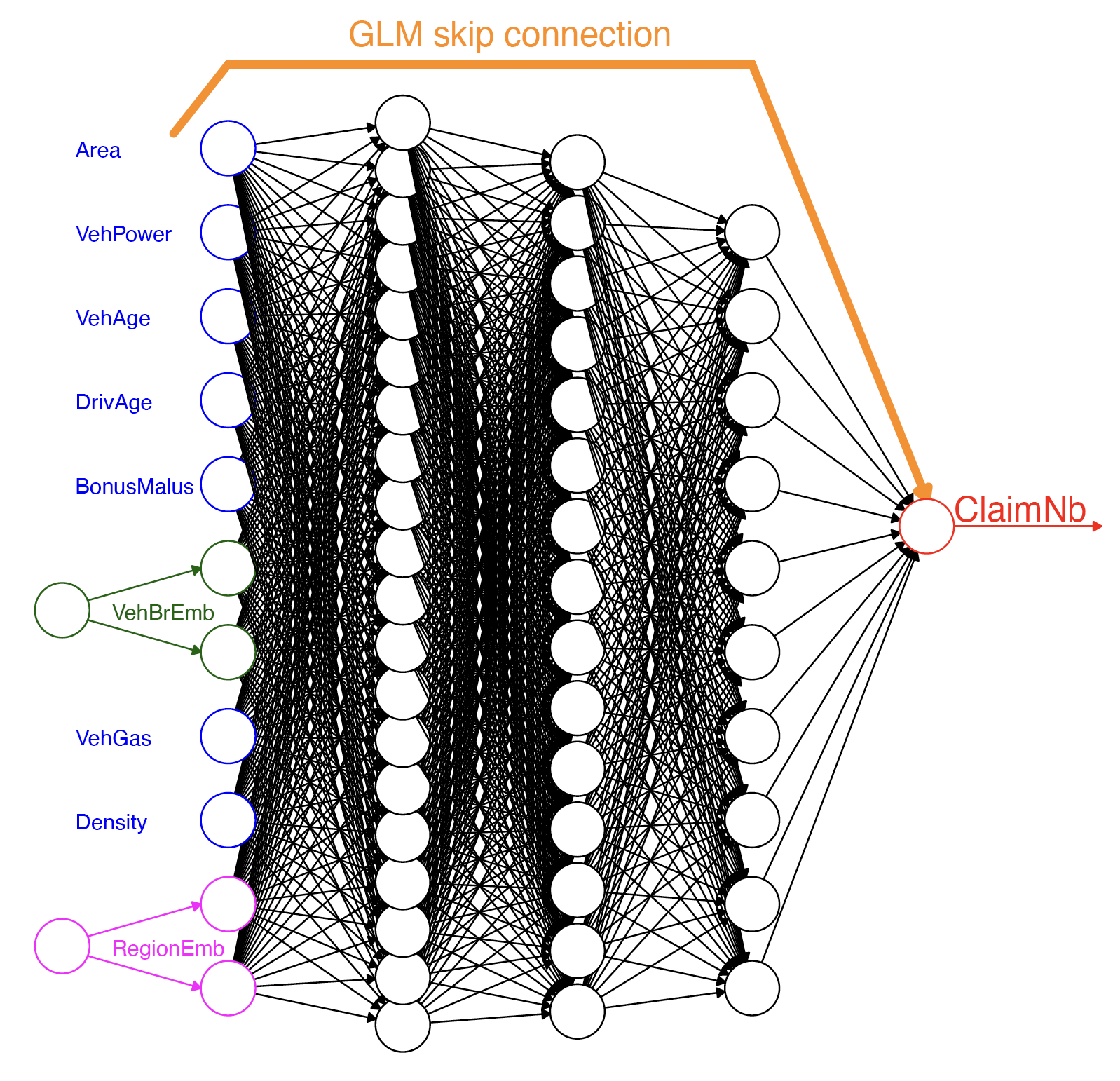

The following section illustrates how embedding a GLM in a neural network architecture can help us quantify the uncertainty relating to the predictions coming from the neural network. The idea is to first fit a GLM, and use the predictions from the GLM and predictions from the neural network part to define a custom loss function. This embedding presents an opportunity to compute the dispersion parameter \phi_{\text{CANN}} for the neural network.

The idea of GLM is to find a linear combination of independent variables \boldsymbol{x} and coefficients \boldsymbol{\beta}, apply a non-linear transformation (g^{-1}) to that linear combination and set it equal to conditional mean of the response variable Y given an instance \boldsymbol{x}. The non-linear transformation provides added flexibility.

Gamma GLM

Suppose a fitted Gamma GLM model has

• a log link function g(x)=\log(x) and
• regression coefficients \boldsymbol{\beta}=(\beta_0, \beta_1, \beta_2, \beta_3).

Then, it estimates the conditional mean of Y given a new instance \boldsymbol{x}=(1, x_1, x_2, x_3) as follows: \mathbb{E}[Y|\boldsymbol{X}=\boldsymbol{x}] = g^{-1}(\langle \boldsymbol{\beta}, \boldsymbol{x}\rangle) = \exp\big(\beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 x_3 \big).

A GLM can model any other exponential family distribution using an appropriate link function g.

Gamma GLM loss

If Y|\boldsymbol{X}=\boldsymbol{x} is a Gamma r.v. with mean \mu(\boldsymbol{x}; \boldsymbol{\beta}) and dispersion parameter \phi, we can minimise the negative log-likelihood (NLL) \text{NLL} \propto \sum_{i=1}^{n}\left[ \log \mu (\boldsymbol{x}_i; \boldsymbol{\beta})+\frac{y_i}{\mu (\boldsymbol{x}_i; \boldsymbol{\beta})} \right] + \text{const}, i.e., we ignore the dispersion parameter \phi while estimating the regression coefficients.

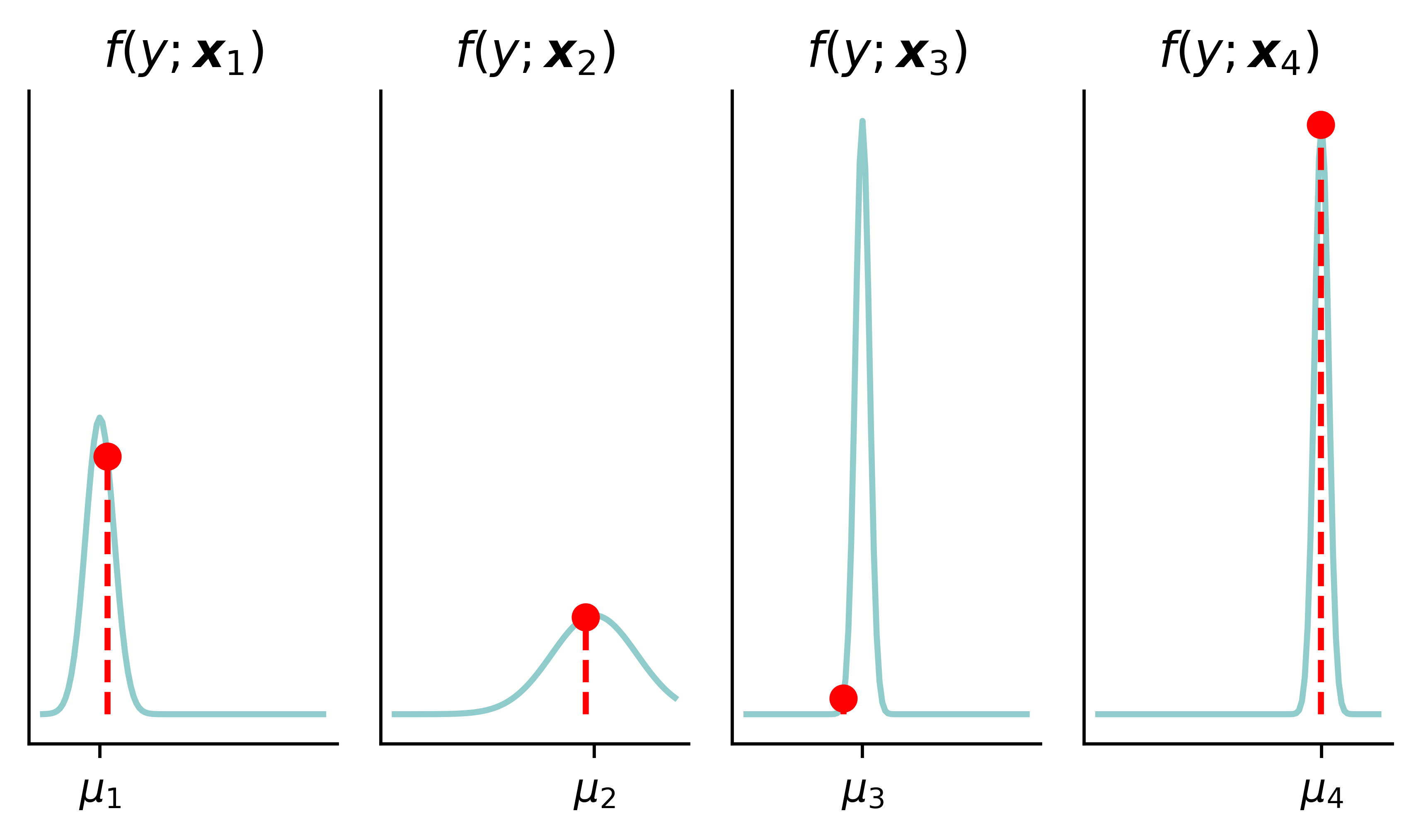

What the GLM predicts

A GLM predicts the mean for each input; the dispersion is a single shared constant, estimated separately.

Fitting steps

Step 1. Use the advanced second derivative iterative method to find the regression coefficients: \boldsymbol{\beta}^* = \underset{\boldsymbol{\beta}}{\text{arg\,min}} \ \sum_{i=1}^{n}\left[ \log \mu (\boldsymbol{x}_i; \boldsymbol{\beta})+\frac{y_i}{\mu (\boldsymbol{x}_i; \boldsymbol{\beta})} \right]

Step 2. Estimate the dispersion parameter: \phi = \frac{1}{n-p}\sum_{i=1}^{n}\frac{\bigl(y_i-\mu(\boldsymbol{x}_i; \boldsymbol{\beta}^*)\bigr)^2}{\mu(\boldsymbol{x}_i; \boldsymbol{\beta}^* )^2}

(Here, p is the number of coefficients in the model. If this p doesn’t include the intercept, then the scaling should be \frac{1}{n-(p+1)}.)

Gamma GLM

In Python, we can fit a Gamma GLM as follows:

# Add a column of ones to include an intercept in the model
X_train_design = sm.add_constant(X_train)

# Create a Gamma GLM with a log link function
gamma_glm = sm.GLM(y_train, X_train_design,
            family=sm.families.Gamma(sm.families.links.Log()))

# Fit the model
gamma_glm = gamma_glm.fit()

gamma_glm.params

const                    7.648131
pipeline__Area          -0.099472
                           ...
remainder__BonusMalus    0.157204
remainder__Density       0.010539
Length: 9, dtype: float64

# Dispersion Parameter
mus = gamma_glm.predict(X_train_design)
residuals = y_train - mus
dof = (len(y_train)-X_train_design.shape[1])
phi_glm = np.sum(residuals**2/mus**2)/dof
print(phi_glm)

59.63363123736379

The above example of fitting a Gamma distribution assumes a constant dispersion, meaning that, the dispersion of claim amount is constant for all policyholders. If we believe that the constant dispersion assumption is quite strong, we can use a double GLM model. Fitting a GLM is the traditional way of modelling a claim amount.

ANN can feed into a GLM

Combining GLM & ANN.

Source: Ronald Richman (2022), Mind the Gap — Safely Incorporating Deep Learning Models into the Actuarial Toolkit, IFoA seminar, Slide 14.

By zooming in on the last hidden layer of the NN and the output neuron, we are essentially looking at a GLM. The hidden layer of neurons would be the input “covariates”. The output neuron before applying the activation function is \hat\mu, which is a linear combination of the covariates using the fitted weights and bias. The activation function (inverse link function) converts \hat \mu into \hat y. The only difference is that the input neurons are not the raw data values; they are the processed versions of the data. Then we can consider the first part of the NN to simply be the feature engineering process.

Deep GLM

A GLM has a linear predictor. A deep GLM (Tran et al., 2020) swaps that for a neural network — a non-linear mean — but keeps the same Gamma loss, so it still predicts a single Gamma distribution.

1def gamma_loss(y_true, y_pred):
    return keras.ops.mean(keras.ops.log(y_pred) + y_true / y_pred)

random.seed(1)
inputs = Input(shape=X_train.shape[1:])
x = Dense(64, activation="leaky_relu")(inputs)
x = Dense(64, activation="leaky_relu")(x)
2mu = Dense(1, activation="exponential")(x) + 1e-6
deep_glm = Model(inputs, mu)
deep_glm.compile(optimizer="adam", loss=gamma_loss)
deep_glm.fit(X_train, y_train, epochs=100, batch_size=64, verbose=0,
    callbacks=[EarlyStopping(patience=10, restore_best_weights=True)],
    validation_split=0.2);

1

The Gamma negative log-likelihood (the dispersion is a nuisance parameter) — identical to the GLM’s loss.

2

The exponential activation plays the role of the GLM’s inverse log link; the + 1e-6 keeps the mean strictly positive so it can’t underflow to exactly 0, which would otherwise make the loss’s log(y_pred) and y_true / y_pred blow up to NaN.

Unlike the GLM, the mean can be an arbitrary non-linear function of the inputs. Unlike the MDN (coming up), the response is still a single Gamma distribution with one constant dispersion. The CANN sits in between: it keeps the GLM and adds a network on top.

Combined Actuarial Neural Network

CANN

The Combined Actuarial Neural Network is an actuarial neural network architecture proposed by Schelldorfer & Wüthrich (2019). We summarise the CANN approach as follows:

• Find coefficients \boldsymbol{\beta} of the GLM with a link function g(\cdot).
• Find weights \boldsymbol{w} = (\boldsymbol{w}^{(1)}, \dots, \boldsymbol{w}^{(K+1)}) of a neural network s:\mathbb{R}^{p}\to\mathbb{R}.
• Given a new instance \boldsymbol{x}, we have

\mathbb{E}[Y|\boldsymbol{X}=\boldsymbol{x}] = g^{-1}\Big( \langle\boldsymbol{\beta}, \boldsymbol{x}\rangle + s(\boldsymbol{x};\boldsymbol{w})\Big).

If just a sequential dense network, then

\mathbb{E}[Y|\boldsymbol{X}=\boldsymbol{x}] = g^{-1}\Big( \langle\boldsymbol{\beta}, \boldsymbol{x}\rangle + \Big\langle \boldsymbol{w}^{(K+1)}, \bigl( \boldsymbol{z}^{(K)} \circ \dots \circ \boldsymbol{z}^{(1)}\bigr)(\boldsymbol{x}) \Big\rangle \Big).

The neural network is shifting the predictions given by the GLM.

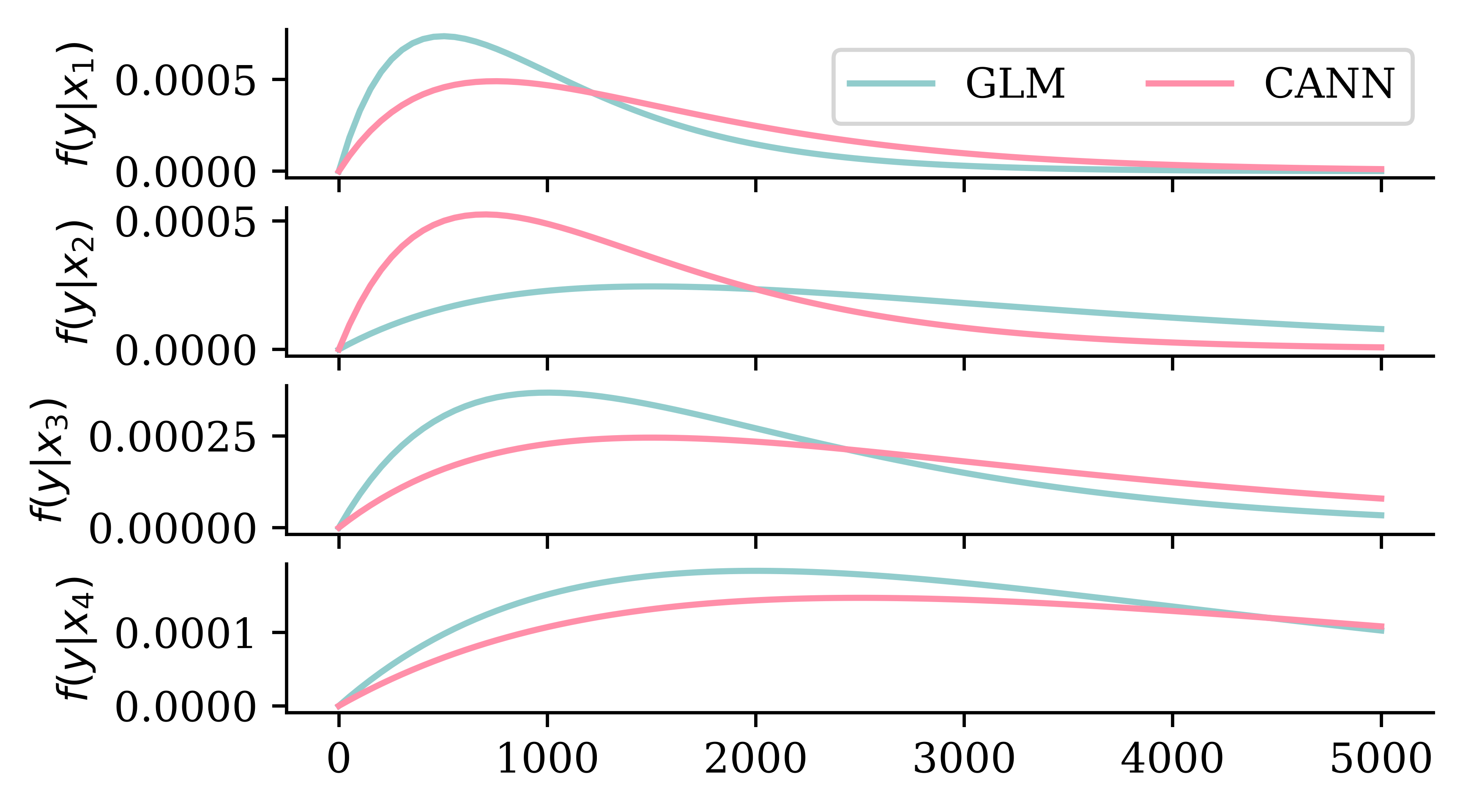

Shifting the predicted distributions

# Ensure reproducibility
random.seed(1)

# Make a 4x1 grid of plots
fig, axes = plt.subplots(4, 1, figsize=(5.0, 3.0), sharex=True)

# Define the x-axis
x_min = 0
x_max = 5000
x_grid = np.linspace(x_min, x_max, 100)

# Plot a few Gamma distribution pdfs with different means.
# Then plot Gamma distributions with shifted means and the same dispersion parameter.
glm_means = [1000, 3000, 2000, 4000]
cann_means = [1500, 1400, 3000, 5000]
for i, ax in enumerate(axes):
    ax.plot(x_grid, stats.gamma.pdf(x_grid, a=2, scale=glm_means[i]/2), label=f'GLM')
    ax.plot(x_grid, stats.gamma.pdf(x_grid, a=2, scale=cann_means[i]/2), label=f'CANN')
    ax.set_ylabel(f'$f(y | x_{i+1})$')
    if i == 0:
        ax.legend(["GLM", "CANN"], loc="upper right", ncol=2)

While the assumed distribution of the target variable remains the same the neural network shifts the parameters of the distribution (e.g. mean and variance) to give a new shape under the CANN.

Architecture

Building CANNs is relatively straightforward.

The CANN architecture.

One copy of the variables is processed through many dense hidden layers (NN component), while a second copy skips the layers and gets combined directly into the generation of the output neuron (GLM component).

Source: Figure 8 of Schelldorfer & Wüthrich (2019).

CANN architecture

random.seed(1)
inputs = Input(shape=X_train.shape[1:])

# GLM part (won't be updated during training)
glm_weights = gamma_glm.params.iloc[1:].values.reshape((-1, 1))
1glm_bias = gamma_glm.params.iloc[0]
glm_part = Dense(1, activation='linear', trainable=False,
                     kernel_initializer=Constant(glm_weights),
2                     bias_initializer=Constant(glm_bias))(inputs)

# Neural network part
x = Dense(64, activation='leaky_relu')(inputs)
nn_part = Dense(1, activation='linear',
                    kernel_initializer="zeros",
3                    bias_initializer="zeros")(x)

# Combine GLM and CANN estimates
4mu = keras.ops.exp(glm_part + nn_part) + 1e-6
cann = Model(inputs, mu)

1

Fit a GLM directly to the train data, and extract the fitted coefficients.

2

Add a Dense layer with just one neuron, to store the model output (before inverse link function) from the GLM. The linear activation is used to make sure that the output is a linear combination of inputs. The weights are set to be non-trainable, hence the values obtained during GLM fitting will not change during the neural network training process. kernel_initializer=Constant(glm_weights) and bias_initializer=Constant(glm_bias) ensures that weights are initialized with the optimal values estimated from GLM fit.

3

Specify the neural network layers (1 dense hidden layer and the output neuron). The output neuron is initialised with zero weights and bias, so that at the start of training the network part contributes nothing and the CANN’s predictions are exactly those of the fitted GLM. Gradient descent then only adds the structure the GLM missed (cf. the initialisation in Schelldorfer & Wüthrich (2019)).

4

Add the GLM contribution to the neural network output and exponentiate to get the mean estimate; the + 1e-6 stops the mean underflowing to exactly 0 and turning the loss into NaN.

Since this CANN predicts Gamma distributions, we reuse the same gamma_loss from the deep GLM.

Training the CANN

1cann.compile(optimizer="adam", loss=gamma_loss)
hist = cann.fit(X_train, y_train,
    epochs=100,
    callbacks=[EarlyStopping(patience=10, restore_best_weights=True)],
    verbose=0,
    batch_size=64,
2    validation_split=0.2)

1

Compiles the model with adam optimizer and the custom loss function

2

Fits the model (with a validation split defined inside the fit function)

Find the dispersion parameter.

mus = cann.predict(X_train, verbose=0).flatten()
residuals = y_train - mus
dof = (len(y_train)-(X_train.shape[1] + 1))
phi_cann = np.sum(residuals**2/mus**2) / dof
print(phi_cann)

64.48475298524968

Mean-Variance Estimation Network

Generating normal distribution parameters

Our model is

Y \mid \boldsymbol{x} \;\sim\; \mathcal{N}\bigl(\mu(\boldsymbol{x}),\, \sigma^2(\boldsymbol{x})\bigr) .

In-class exercise

Make a neural network that models Y \mid \boldsymbol{x} \;\sim\; \mathcal{N}\bigl(\mu(\boldsymbol{x}),\, \sigma^2(\boldsymbol{x})\bigr).

y_pred = np.polyval(coefficients, X_toy[:4])
y_pred[2] *= 1.1
sigma_preds = sigma_toy * np.array([1.0, 3.0, 0.5, 0.5])
fig, axes = plt.subplots(1, 4, figsize=(5.0, 2.0), sharey=True)

x_min = y_pred[:4].min() - 4*sigma_toy
x_max = y_pred[:4].max() + 4*sigma_toy
x_grid = np.linspace(x_min, x_max, 100)

# Plot each normal distribution with different means vertically
for i, ax in enumerate(axes):
    y_grid = stats.norm.pdf(x_grid, y_pred[i], sigma_preds[i])
    ax.plot(x_grid, y_grid)
    ax.plot([y_toy[i], y_toy[i]], [0, stats.norm.pdf(y_toy[i], y_pred[i], sigma_preds[i])], color='red', linestyle='--')
    ax.scatter([y_toy[i]], [stats.norm.pdf(y_toy[i], y_pred[i], sigma_preds[i])], color='red', zorder=10)
    ax.set_title(f'$f(y ; \\boldsymbol{{x}}_{{{i+1}}})$')
    ax.set_xticks([y_pred[i]], labels=[r'$\mu_{' + str(i+1) + r'}$'])
    # ax.set_ylim(0, 0.25)

    # Turn off the y axes
    ax.yaxis.set_visible(False)

plt.tight_layout();

Task: Assume you have X_train and y_train loaded and write the following code, everything up to the model.fit(X_train, y_train) line.

In this example the observed value is in red and the green line is the predicted distribution. For overconfident predictions (low variance), we can either be rewarded greatly if we are right (\mu_4). We can also be penalised heavily if our confident prediction is wrong (\mu_3). For underconfident predictions, the reward does not change significantly between predictions, and we are penalised for not being confident enough.

When fitting the model by trying to maximise the likelihood, you want to balance the trade-off between making an accurate prediction and making a confident prediction.

Mean-variance estimation networks: Nix & Weigend (1994).

Mixture Density Network

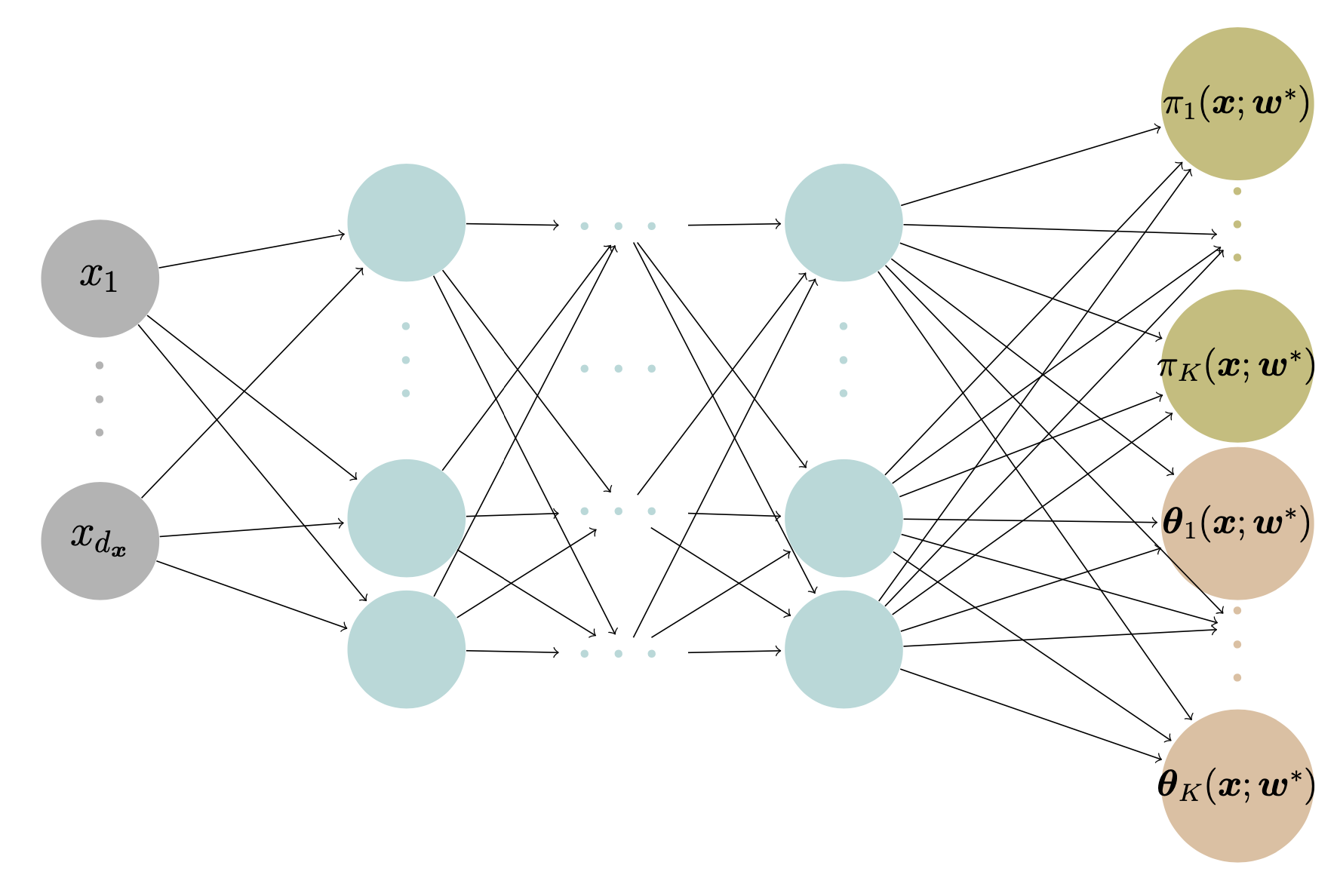

Mixture density network

The mean-variance network outputs the parameters of a single normal. But our data may be multimodal, or have some other shape which no single normal or gamma can capture.

A mixture density network (MDN) operates the same way, except now we model Y \mid \boldsymbol{x} as a mixture of K components. The network outputs the mixing weights \boldsymbol{\pi}(\boldsymbol{x}) and each component’s parameters, giving the density f_{Y|\boldsymbol{X}}(y \mid \boldsymbol{x}) = \sum_{k=1}^{K}\pi_k(\boldsymbol{x})\, f_{k}(y \mid \boldsymbol{x}), \qquad \pi_k(\boldsymbol{x}) \ge 0,\ \ \sum_{k=1}^{K}\pi_k(\boldsymbol{x})=1 . Each component f_k can be any parametric family (normal, gamma, etc.).

As before, the weights are trained by minimising the negative log-likelihood.

Mixture density networks: Bishop (1994).

A two-component normal MDN

A two-component Gamma mixture

Suppose there are two types of claims:

• Type I: Y_1|\boldsymbol{X}=\boldsymbol{x}\sim \text{Gamma}(\alpha_1(\boldsymbol{x}), \beta_1(\boldsymbol{x})) and,
• Type II: Y_2|\boldsymbol{X}=\boldsymbol{x}\sim \text{Gamma}(\alpha_2(\boldsymbol{x}), \beta_2(\boldsymbol{x})).

(Note the new gamma parametrisation.) So the claim amount Y|\boldsymbol{X}=\boldsymbol{x} has density \begin{align*} f_{Y|\boldsymbol{X}}(y|\boldsymbol{x}) &= \pi_1(\boldsymbol{x})\cdot \frac{\beta_1(\boldsymbol{x})^{\alpha_1(\boldsymbol{x})}}{\Gamma(\alpha_1(\boldsymbol{x}))}\mathrm{e}^{-\beta_1(\boldsymbol{x})y}y^{\alpha_1(\boldsymbol{x})-1} \\ &\quad + \pi_2(\boldsymbol{x})\cdot \frac{\beta_2(\boldsymbol{x})^{\alpha_2(\boldsymbol{x})}}{\Gamma(\alpha_2(\boldsymbol{x}))}\mathrm{e}^{-\beta_2(\boldsymbol{x})y}y^{\alpha_2(\boldsymbol{x})-1}, \end{align*} where \pi_1(\boldsymbol{x}) is the probability of a Type I claim. So here the network’s six outputs are the mixing weights, shapes and rates: \text{MDN}(\boldsymbol{x}; \boldsymbol{w}^*) = \bigl( \pi_1, \pi_2,\ \alpha_1, \alpha_2,\ \beta_1, \beta_2 \bigr).

Watch the parameterisation. The Gamma GLM earlier used the mean–dispersion form (\mu, \phi); from here on we use the shape–rate form (\alpha, \beta) that torch.distributions.Gamma assumes, whose density is f(y; \alpha, \beta) = \frac{\beta^{\alpha}}{\Gamma(\alpha)}\, y^{\alpha - 1}\, \mathrm{e}^{-\beta y}, \qquad y > 0. So in the code concentration is the shape \alpha and rate is \beta, giving mean \alpha/\beta. It is the same distribution reparameterised: \mu = \alpha/\beta and \phi = 1/\alpha.

Gamma MDNs for insurance claim amounts: Delong et al. (2021); MDNs for loss reserving: Al-Mudafer et al. (2022).

The Gamma MDN

Gamma MDN architecture

The following code implements the gamma MDN from the previous slide.

random.seed(1)

n_components = 2
inputs = Input(shape=X_train.shape[1:])

1x = Dense(64, activation="relu")(inputs)
x = Dense(64, activation="relu")(x)

2pis = Dense(n_components, activation="softmax")(x)
alphas = Dense(n_components, activation="softplus")(x) + 1e-6
betas = Dense(n_components, activation="softplus")(x) + 1e-6

3outputs = Concatenate()([pis, alphas, betas])
gamma_mdn = Model(inputs, outputs)

1

Specifies the shared hidden layers of the neural network using Keras’ functional API.

2

Specifies the output heads. softmax is used for the \pi values as they must sum to 1. softplus is used for the \alpha’s and \beta’s as they must be positive. We add a tiny constant (1e-6) because softplus can underflow to exactly 0, which would make the Gamma parameters invalid and the log-likelihood NaN.

3

Concatenates the three heads into a single output of 3 \times K values (mixing weights, shapes, rates), which the loss function will split apart.

Loss & training

torch.distributions to the rescue.

torch.distributions does all the hard work of mathematically describing the mixture distribution, so we only need a single loss function (no custom classes).

1def gamma_mixture_nll(y_true, y_pred):
2    pis = y_pred[:, :n_components]
    alphas = y_pred[:, n_components:2*n_components]
    betas = y_pred[:, 2*n_components:]
    mixture = MixtureSameFamily(
        mixture_distribution=Categorical(probs=pis),
3        component_distribution=Gamma(concentration=alphas, rate=betas))
4    return -keras.ops.mean(mixture.log_prob(keras.ops.squeeze(y_true)))

1

The loss takes the observed values and the MDN’s concatenated output, matching Keras’ (y_true, y_pred) signature.

2

Split the output back into the mixing weights, shapes, and rates.

3

Specify the mixture distribution using the predicted model components.

4

Calculate the mean negative log-likelihood given the observed data.

We can now train it like any other Keras model.

1gamma_mdn.compile(optimizer="adam", loss=gamma_mixture_nll)
gamma_mdn.fit(X_train, y_train,
    epochs=100,
    callbacks=[EarlyStopping(patience=10, restore_best_weights=True)],
    verbose=0,
    batch_size=64,
2    validation_split=0.2)

1

Compile the model with the Adam optimiser and our custom loss function.

2

Fit the model, with early stopping on a 20% validation split.

Distributional Refinement Network

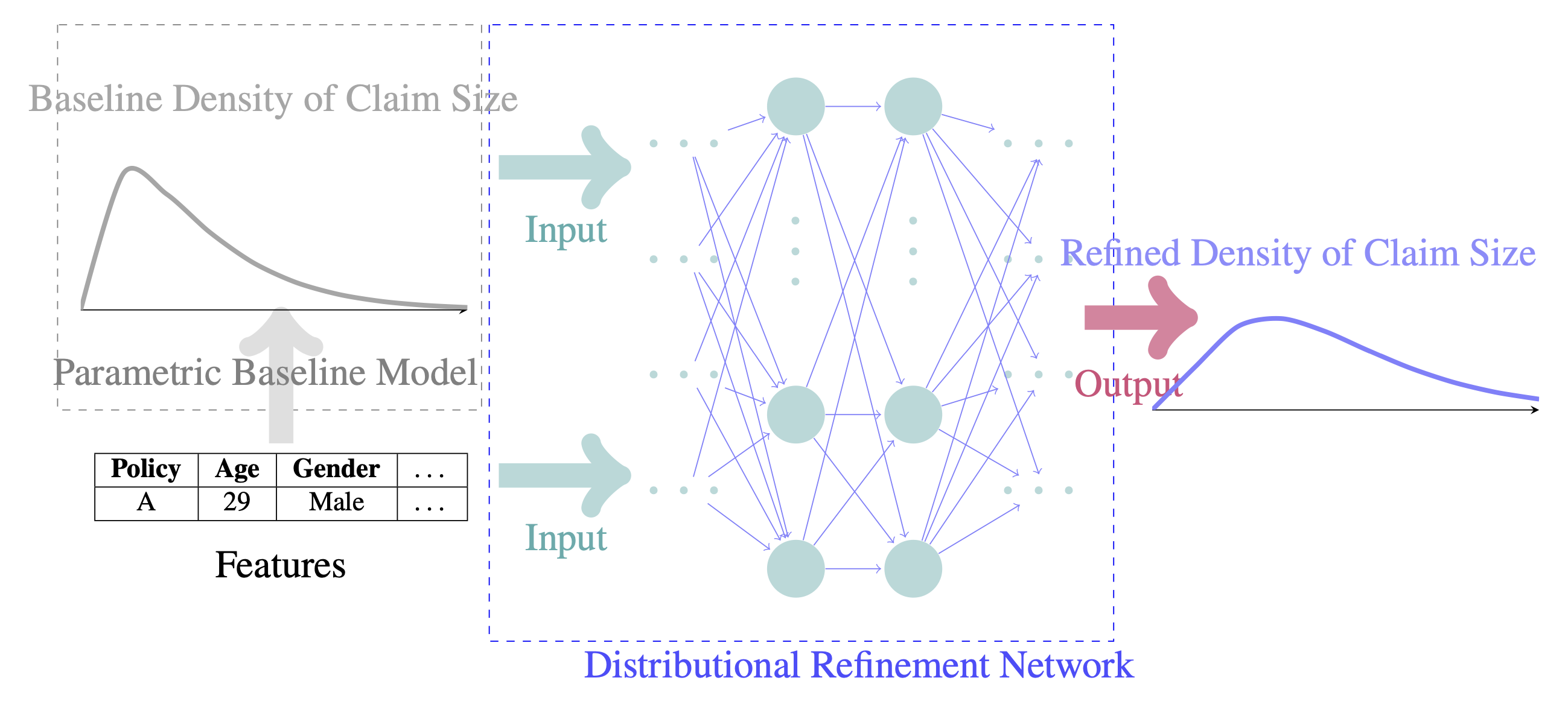

The DRN architecture

Start from a trusted parametric baseline (e.g. a GLM), then let a neural network make small adjustments to the whole distribution.

The DRN keeps the baseline’s shape but flexibly refines it using the features.

Source: Avanzi et al. (2026).

Refining the distribution

Discretise the baseline into bins, then multiply each bin’s mass by a learned adjustment factor \hat{a}_k.

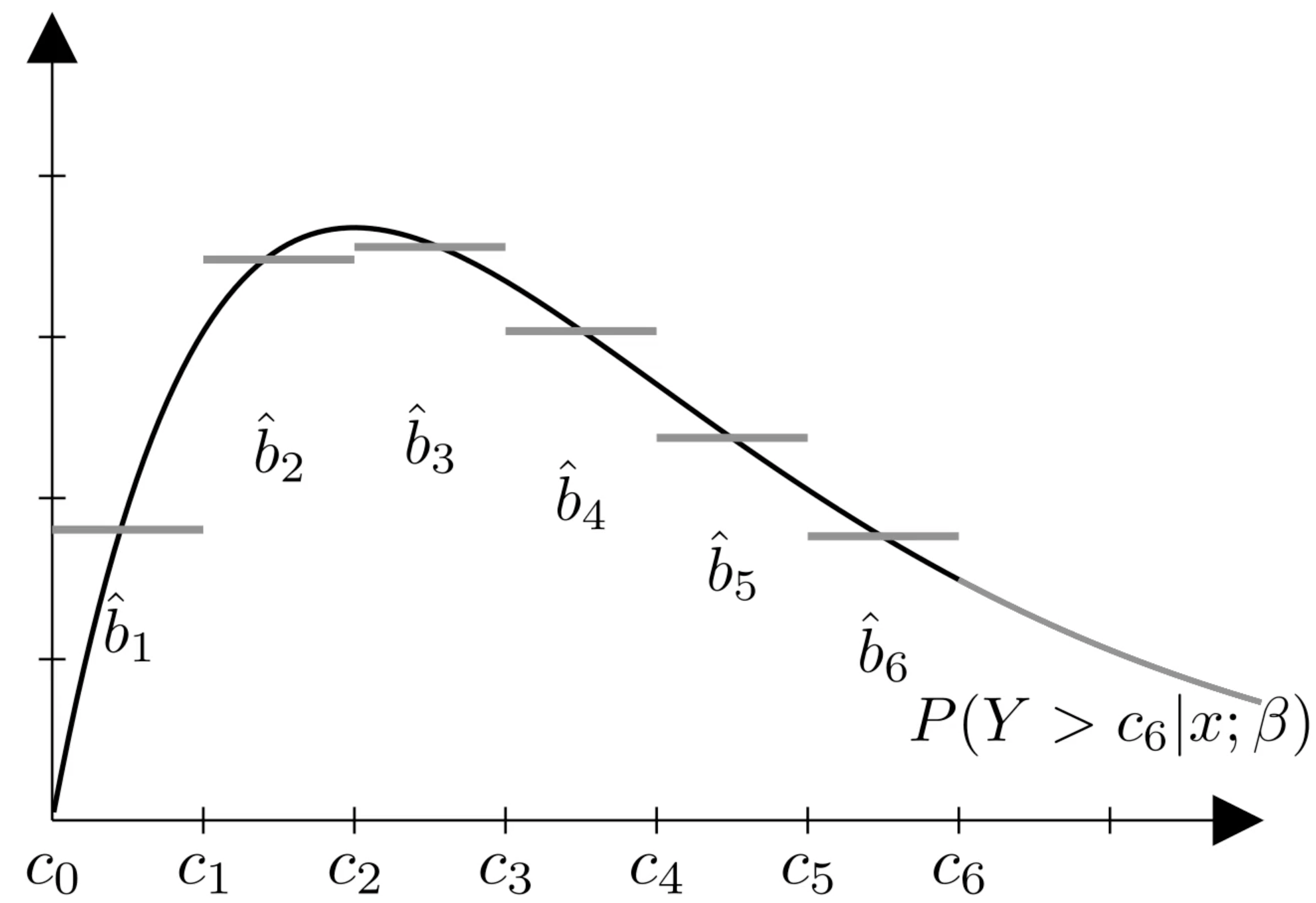

Baseline: discretised masses \hat{b}_k.

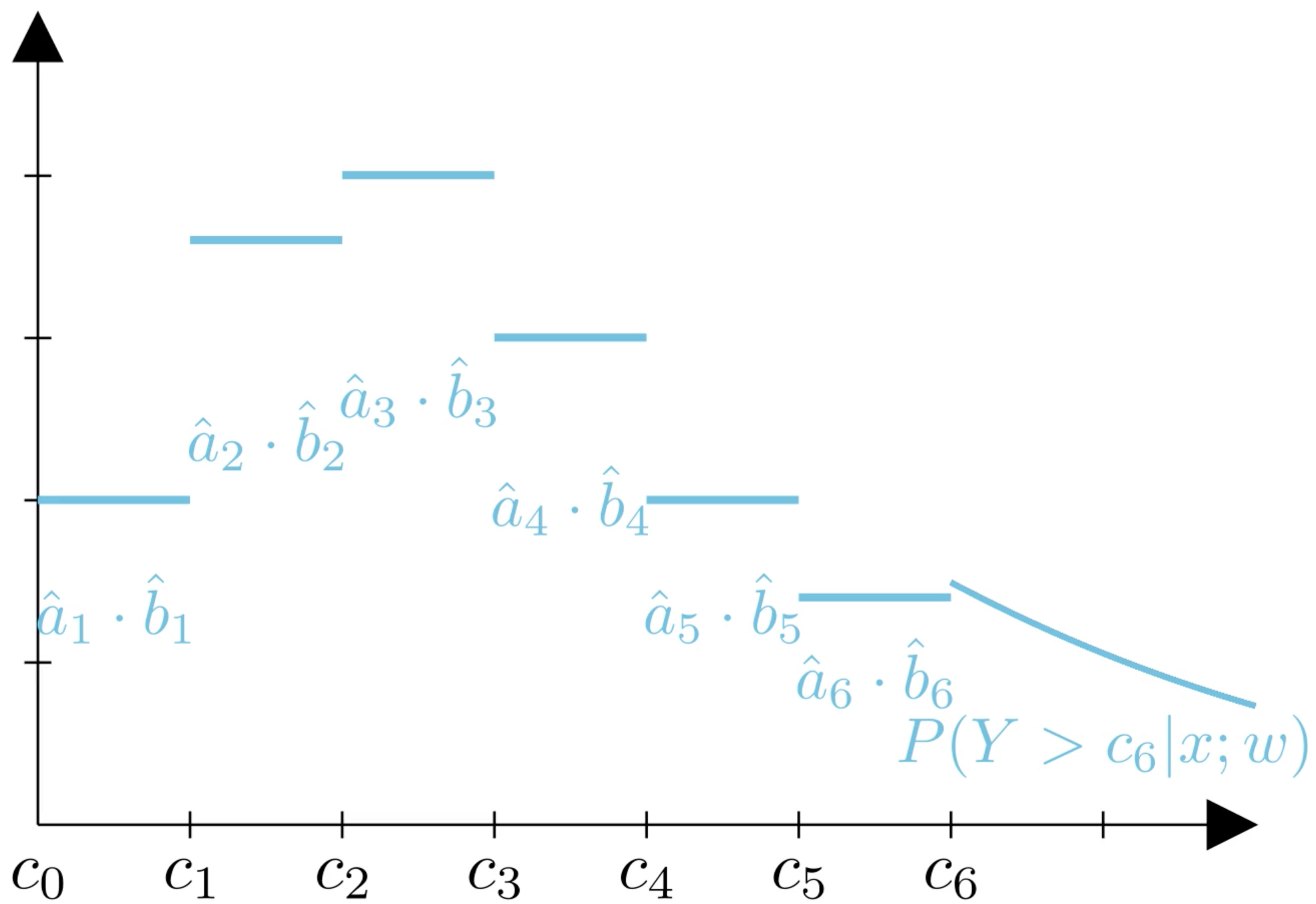

Refined: adjusted masses \hat{a}_k \cdot \hat{b}_k.

A penalty keeps the adjustments faithful to the baseline, so the model stays interpretable and trustworthy.

Source: Avanzi et al. (2026).

Implemented in the drn package

The drn package fits the DRN architecture along with today’s earlier models:

from drn import GLM, CANN, MDN, DRN, nll

glm  = GLM("gamma").fit(X_train, y_train)
cann = CANN(glm).fit(X_train, y_train)
mdn  = MDN("gamma", num_components=2).fit(X_train, y_train)
drn  = DRN(glm).fit(X_train, y_train)

for name, model in {"GLM": glm, "CANN": cann, "MDN": mdn, "DRN": drn}.items():
    print(f"{name}: {nll(model.predict(X_test), y_test):.2f}")

GLM: 11.02
CANN: 10.27
MDN: 8.78
DRN: 8.32

Source: Avanzi et al. (2026).

Uncertainty and Regularisation

Uncertainty in deep learning refers to the level of doubt one would have about the predictions made by an AI-driven algorithm. Identifying and quantifying different sources of uncertainty that could exist in AI-driven algorithms is therefore important to ensure a credible application.

Categories of uncertainty

There are two major categories of uncertainty in statistical or machine learning:

• Aleatoric uncertainty: the inherent variability associated with the data generating process.
• Epistemic uncertainty: the lack of knowledge, limited data information, parameter errors and model errors.

Sources of uncertainty

There are many sources of uncertainty in statistical or machine learning models.

• Parameter error stems primarily due to lack of data.
• Model error stems from assuming wrong distributional properties of the data.
• Data uncertainty arises due to the lack of confidence we may have about the quality of the collected data. Noisy data, inconsistent data, data with missing values or data with missing important variables can result in data uncertainty.

If you decide to predict the claim amount of an individual using a deep learning model, which source(s) of uncertainty are you dealing with?

1. The inherent variability of the data-generating process \rightarrow aleatoric uncertainty.
2. Parameter error \rightarrow epistemic uncertainty.
3. Model error \rightarrow epistemic uncertainty.
4. Data uncertainty \rightarrow epistemic uncertainty.

Traditional regularisation

Regularisation is performed when fitting model parameters to avoid overfitting to the train data.

Say all the m weights (excluding biases) are in the vector \boldsymbol{\theta}. If we change the loss function to \text{Loss}_{1:n} = \frac{1}{n} \sum_{i=1}^n \text{Loss}_i + \lambda \sum_{j=1}^{m} \left| \theta_j \right|

this would be using L^1 regularisation. A loss like

\text{Loss}_{1:n} = \frac{1}{n} \sum_{i=1}^n \text{Loss}_i + \lambda \sum_{j=1}^{m} \theta_j^2

is called L^2 regularisation.

Regularisation in Keras

We can perform regularisation in Keras with the same intuition as for the context of regression.

features, target = fetch_california_housing(as_frame=True, return_X_y=True)

NUM_FEATURES = len(features.columns)

X_main, X_test, y_main, y_test = train_test_split(
    features, target, test_size=0.2, random_state=1
)
X_train, X_val, y_train, y_val = train_test_split(
    X_main, y_main, test_size=0.25, random_state=1
)

scaler = StandardScaler()
X_train_sc = scaler.fit_transform(X_train)
X_val_sc = scaler.transform(X_val)
X_test_sc = scaler.transform(X_test)

def l1_model(regulariser_strength=0.01):
  random.seed(123)
  model = Sequential([
      Dense(30, activation="leaky_relu",
        kernel_regularizer=L1(regulariser_strength)),
      Dense(1, activation="exponential")
  ])

  model.compile("adam", "mse")
  model.fit(X_train_sc, y_train, epochs=4, verbose=0)
  return model

def l2_model(regulariser_strength=0.01):
  random.seed(123)
  model = Sequential([
      Dense(30, activation="leaky_relu",
        kernel_regularizer=L2(regulariser_strength)),
      Dense(1, activation="exponential")
  ])

  model.compile("adam", "mse")
  model.fit(X_train_sc, y_train, epochs=10, verbose=0)
  return model

This code defines functions that specify and fit a NN under the two regularisation methods.

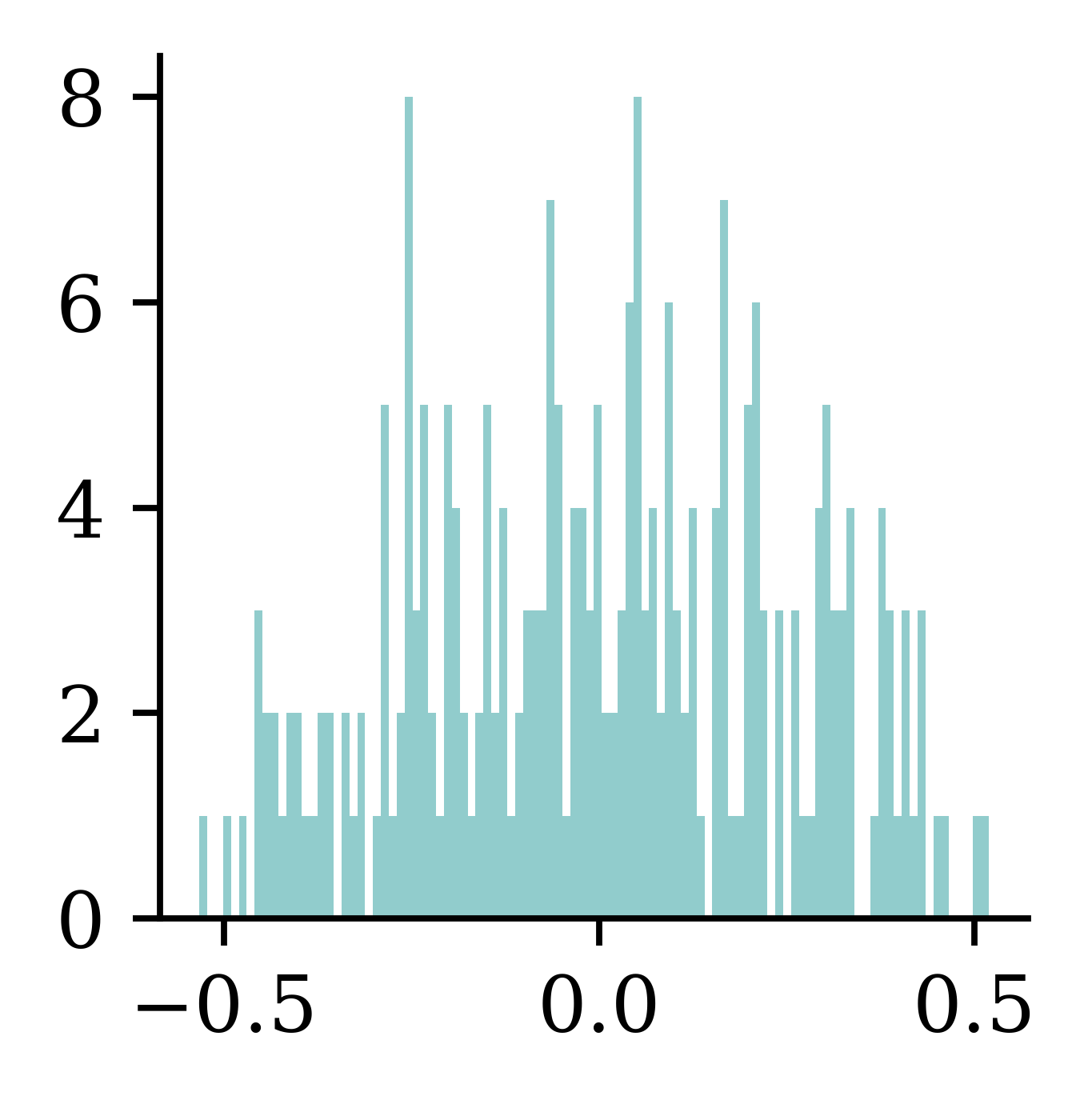

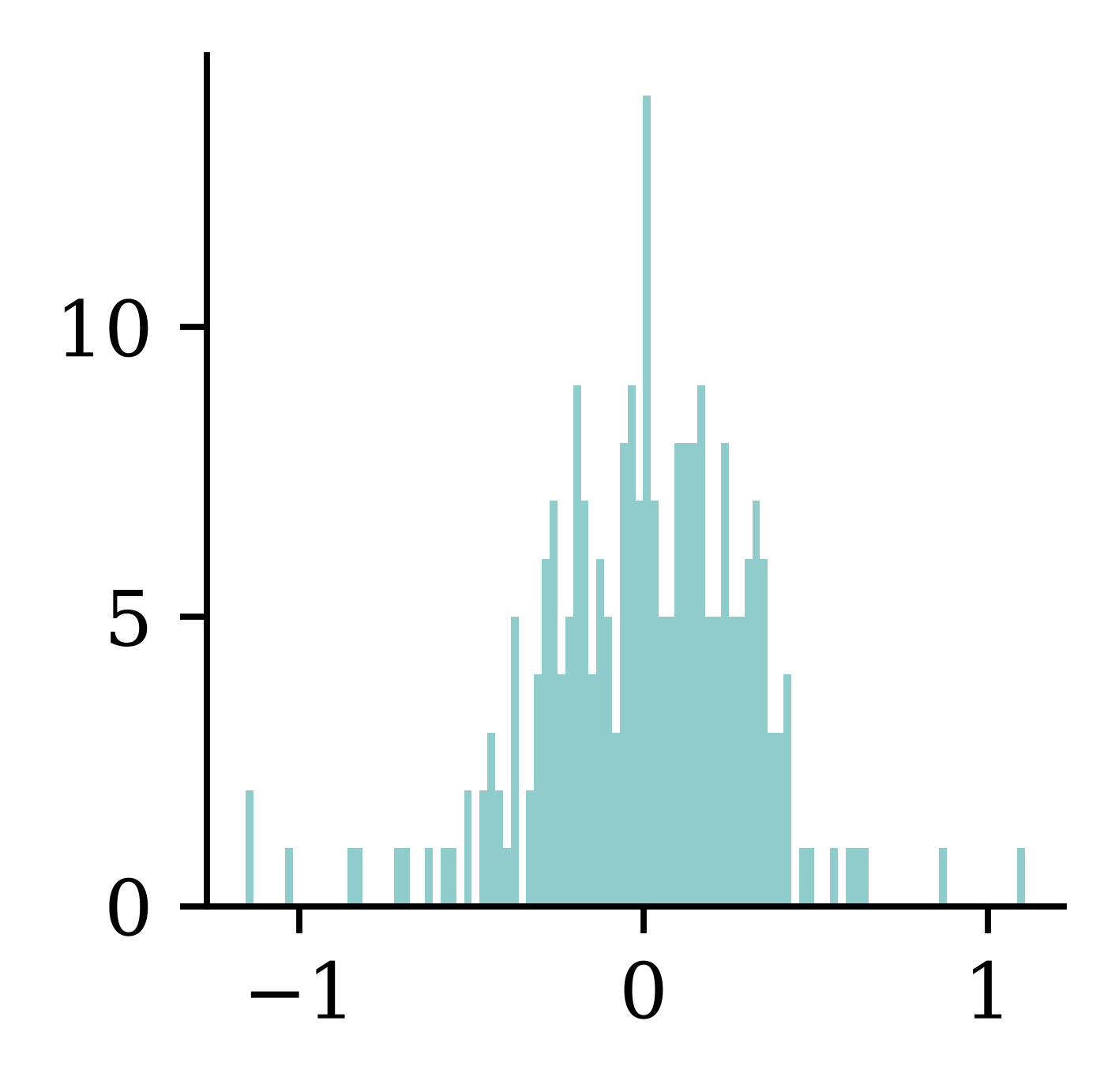

Weights before & after L^2

model = l2_model(0.0)
weights = model.layers[0].get_weights()[0].flatten()
print(f"Number of weights almost 0: {np.sum(np.abs(weights) < 1e-5)}")
plt.hist(weights, bins=100);

Number of weights almost 0: 0

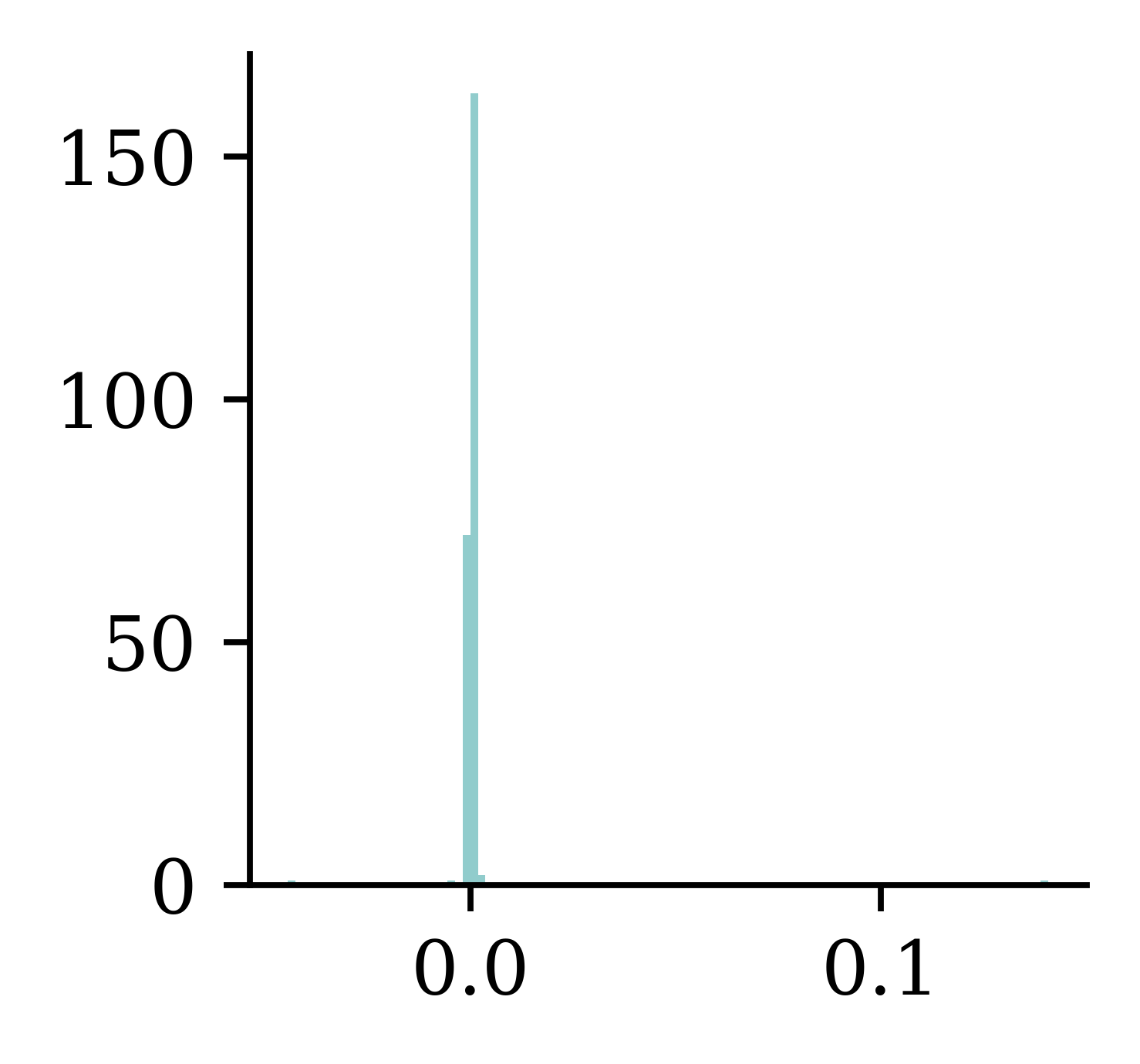

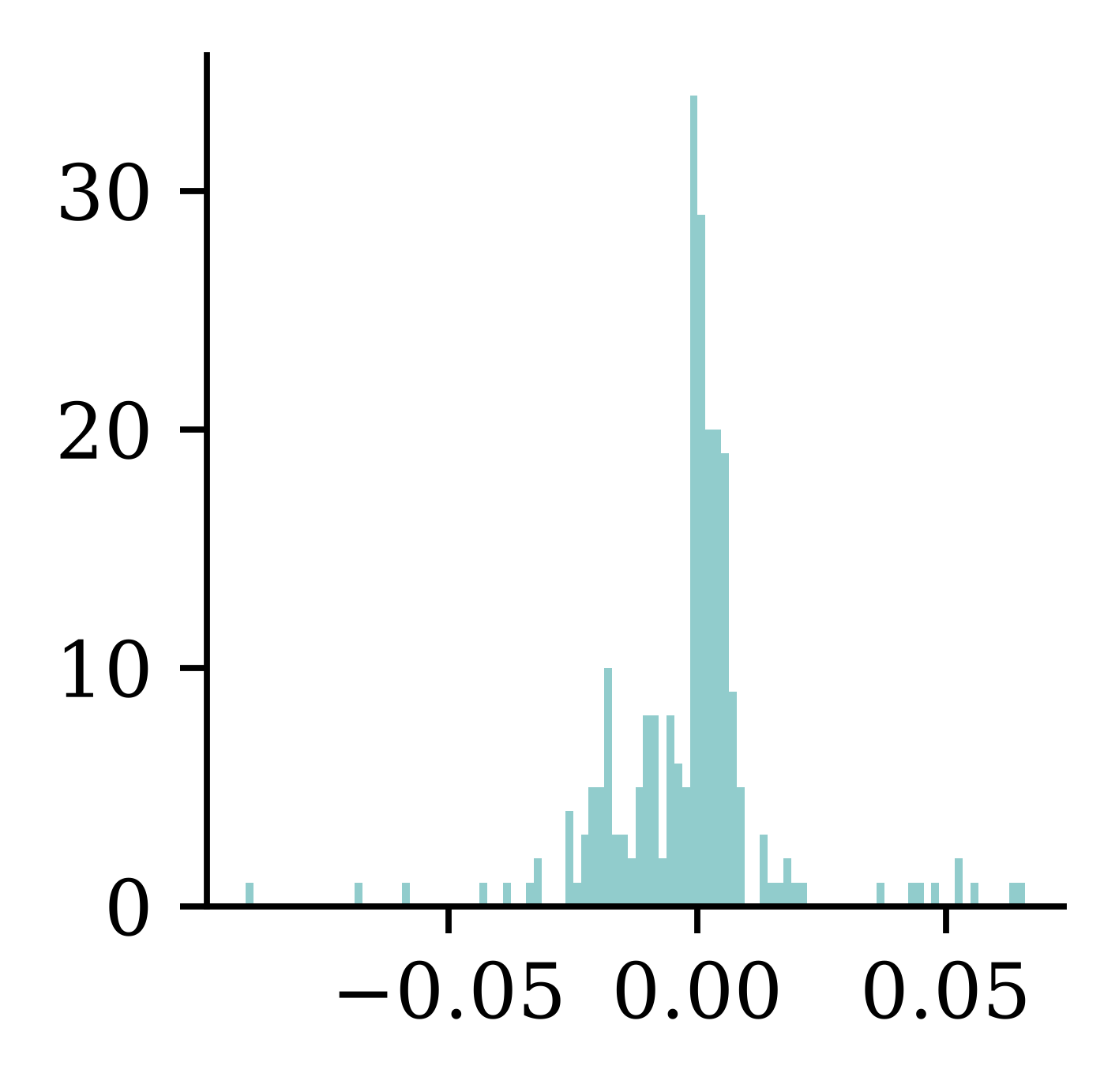

model = l2_model(1.0)
weights = model.layers[0].get_weights()[0].flatten()
print(f"Number of weights almost 0: {np.sum(np.abs(weights) < 1e-5)}")
plt.hist(weights, bins=100);

Number of weights almost 0: 6

Many of the weights are much closer to 0 (but never exactly 0).

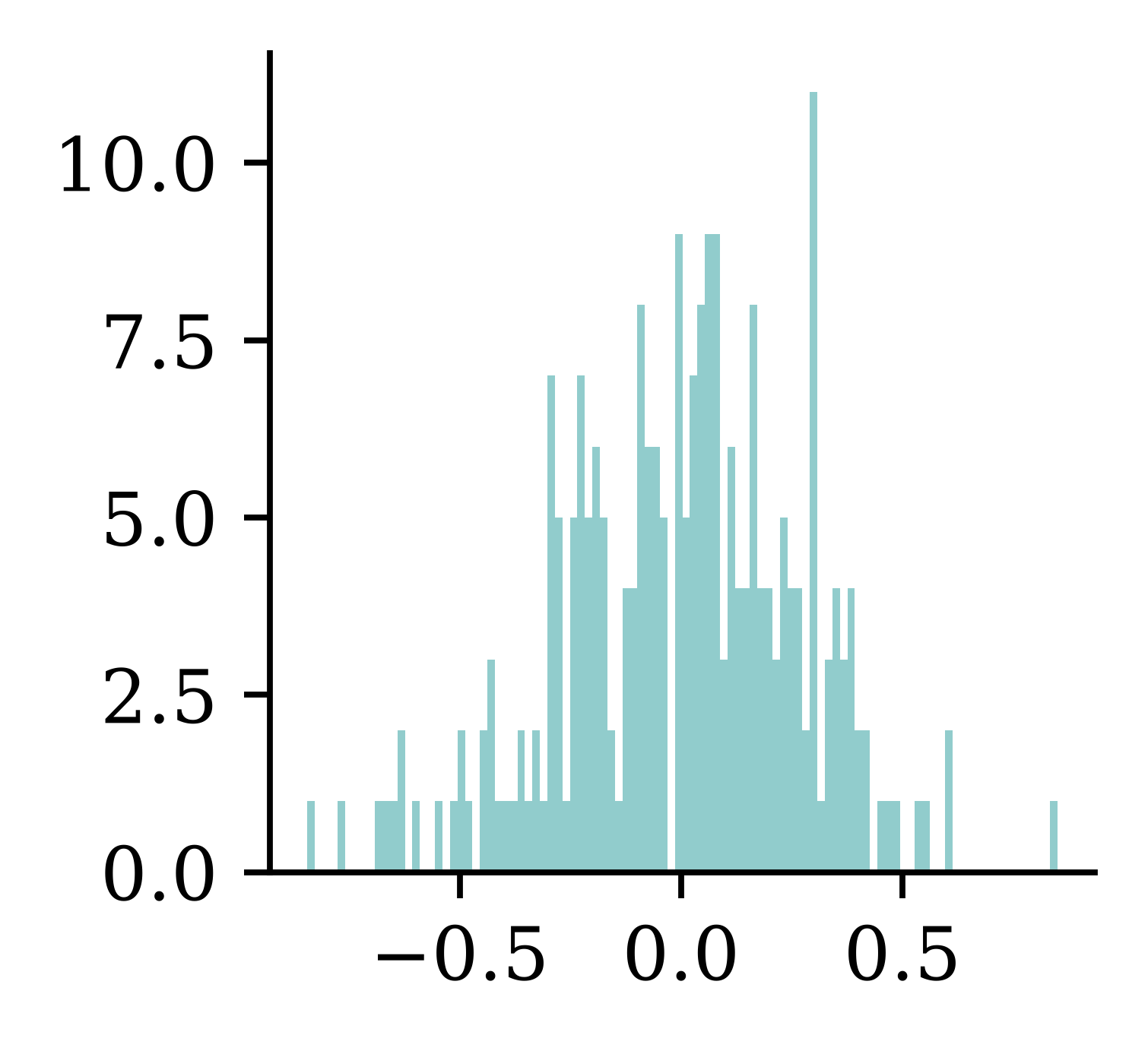

Weights before & after L^1

model = l1_model(0.0)
weights = model.layers[0].get_weights()[0].flatten()
print(f"Number of weights almost 0: {np.sum(np.abs(weights) < 1e-5)}")
plt.hist(weights, bins=100);

Number of weights almost 0: 0

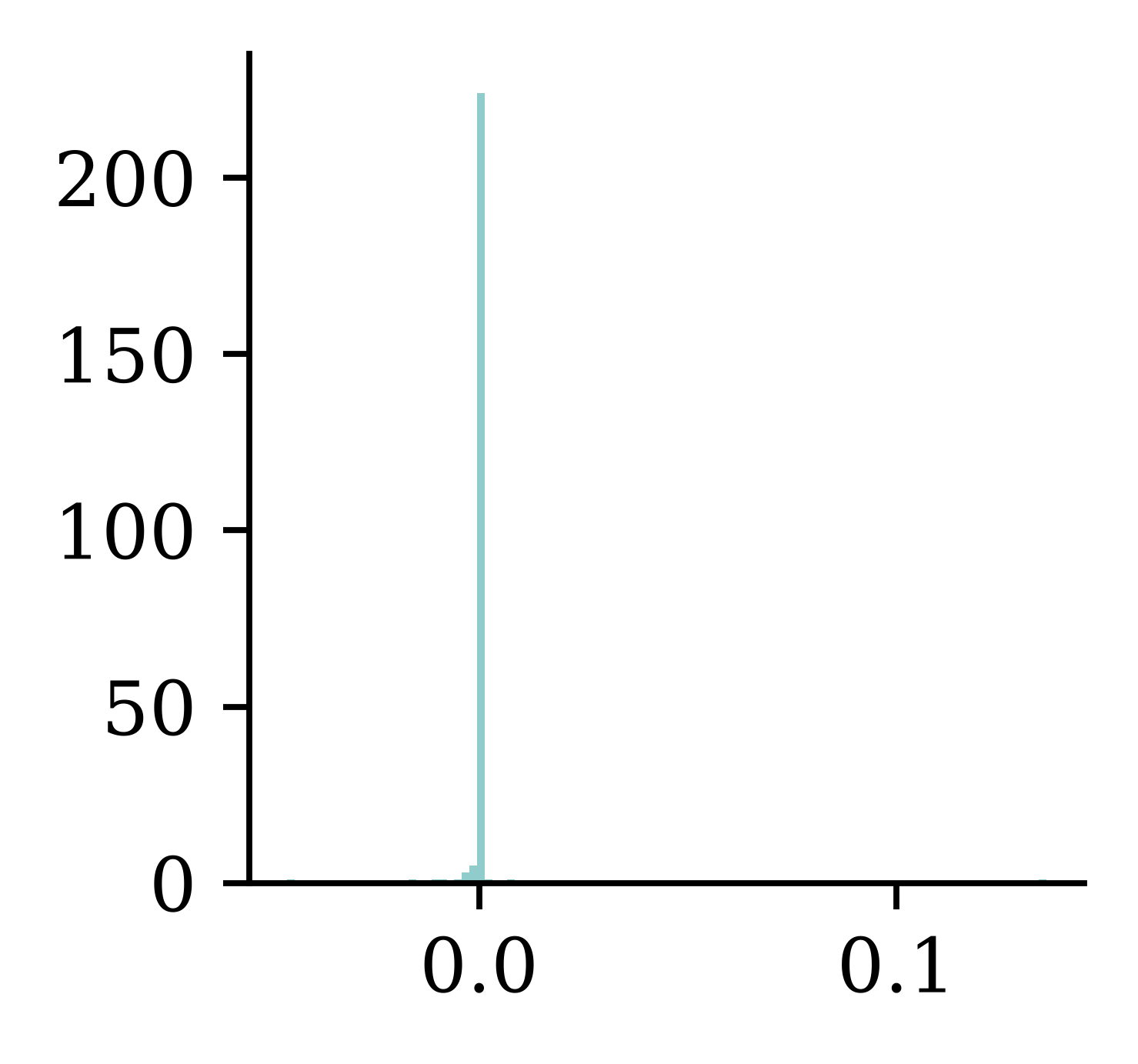

model = l1_model(1.0)
weights = model.layers[0].get_weights()[0].flatten()
print(f"Number of weights almost 0: {np.sum(np.abs(weights) < 1e-5)}")
plt.hist(weights, bins=100);

Number of weights almost 0: 12

Many of the weights have been reduced to exactly 0. This breaks the connections between neurons inside the NN.

Early-stopping regularisation

A form of regularisation that we’ve already been doing is early-stopping. The model stops learning when the validation loss is minimised, clearly solving the issue of over-fitting the model to the train data.

A very different way to regularize iterative learning algorithms such as gradient descent is to stop training as soon as the validation error reaches a minimum. This is called early stopping… It is such a simple and efficient regularization technique that Geoffrey Hinton called it a “beautiful free lunch”.

Alternatively, you can try building a model with slightly more layers and neurons than you actually need, then use early stopping and other regularization techniques to prevent it from overfitting too much. Vincent Vanhoucke, a scientist at Google, has dubbed this the “stretch pants” approach: instead of wasting time looking for pants that perfectly match your size, just use large stretch pants that will shrink down to the right size.

Source: Géron (2019), Hands-On Machine Learning with Scikit-Learn, Keras, and TensorFlow, 3rd Edition, Chapters 4 and 10.

Dropout and Ensembles

Dropout

Dropout is one of the most popular methods for reducing the risk of overfitting. Dropout is the act of randomly selecting a proportion of neurons and deactivating them during each training iteration. It is a regularization technique that aims to reduce overfitting and improve the generalization ability of the model.

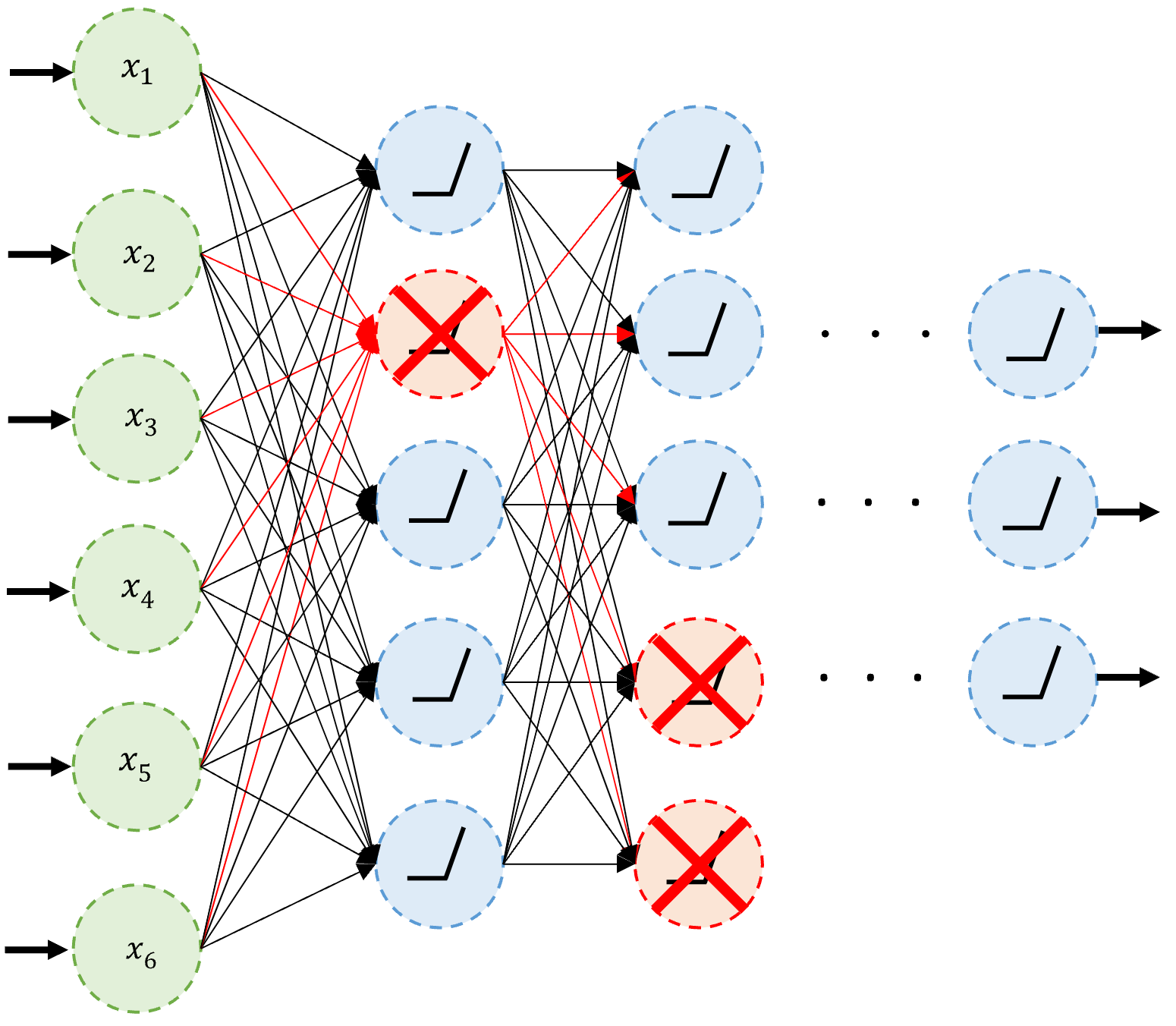

An example of neurons dropped during training.

Sources: Marcus Lautier (2022).

Dropout quote

It’s surprising at first that this destructive technique works at all. Would a company perform better if its employees were told to toss a coin every morning to decide whether or not to go to work? Well, who knows; perhaps it would! The company would be forced to adapt its organization; it could not rely on any single person to work the coffee machine or perform any other critical tasks, so this expertise would have to be spread across several people. Employees would have to learn to cooperate with many of their coworkers, not just a handful of them. The company would become much more resilient. If one person quit, it wouldn’t make much of a difference. It’s unclear whether this idea would actually work for companies, but it certainly does for neural networks. Neurons trained with dropout cannot co-adapt with their neighboring neurons; they have to be as useful as possible on their own. They also cannot rely excessively on just a few input neurons; they must pay attention to each of their input neurons. They end up being less sensitive to slight changes in the inputs. In the end, you get a more robust network that generalizes better.

Source: Aurélien Géron (2019), Hands-On Machine Learning with Scikit-Learn, Keras, and TensorFlow, 2nd Edition, p. 366

Dropout

Dropout is just another layer in Keras.

The following code shows how we can apply a dropout to each hidden layer in the neural network. The dropout rate for each layer is 0.2. There is also an option called seed in the Dropout function, which can be used to ensure reproducibility.

random.seed(2);

model = Sequential([
    Dense(30, activation="leaky_relu"),
    Dropout(0.2),
    Dense(30, activation="leaky_relu"),
    Dropout(0.2),
    Dense(1, activation="exponential")
])

model.compile("adam", "mse")
model.fit(X_train_sc, y_train, epochs=4, verbose=0);

Dropout after training

Making predictions is the same as any other model:

model.predict(X_train_sc.head(3),
                  verbose=0)

array([[1.73],
       [0.74],
       [1.56]], dtype=float32)

model.predict(X_train_sc.head(3),
                  verbose=0)

array([[1.73],
       [0.74],
       [1.56]], dtype=float32)

Dropout has no impact on model predictions because Dropout function is carried out only during the training stage. Once the model finishes its training (once the weights and biases are computed), all neurons together contribute to the predictions (no dropping out during the prediction stage). Therefore, predictions from the model will not change across different runs.

We can make the model think it is still training:

keras.ops.convert_to_numpy(
    model(X_train_sc.head(3), training=True))

array([[2.08],
       [0.85],
       [1.43]], dtype=float32)

keras.ops.convert_to_numpy(
    model(X_train_sc.head(3), training=True))

array([[1.71],
       [0.6 ],
       [1.51]], dtype=float32)

By setting the training=True, we can let dropout happen during prediction stage as well. This will change predictions for the same output differently. This is known as the Monte Carlo dropout and can be used to generate a distribution of predictions.

Ensembles

Combine many models to get better predictions.

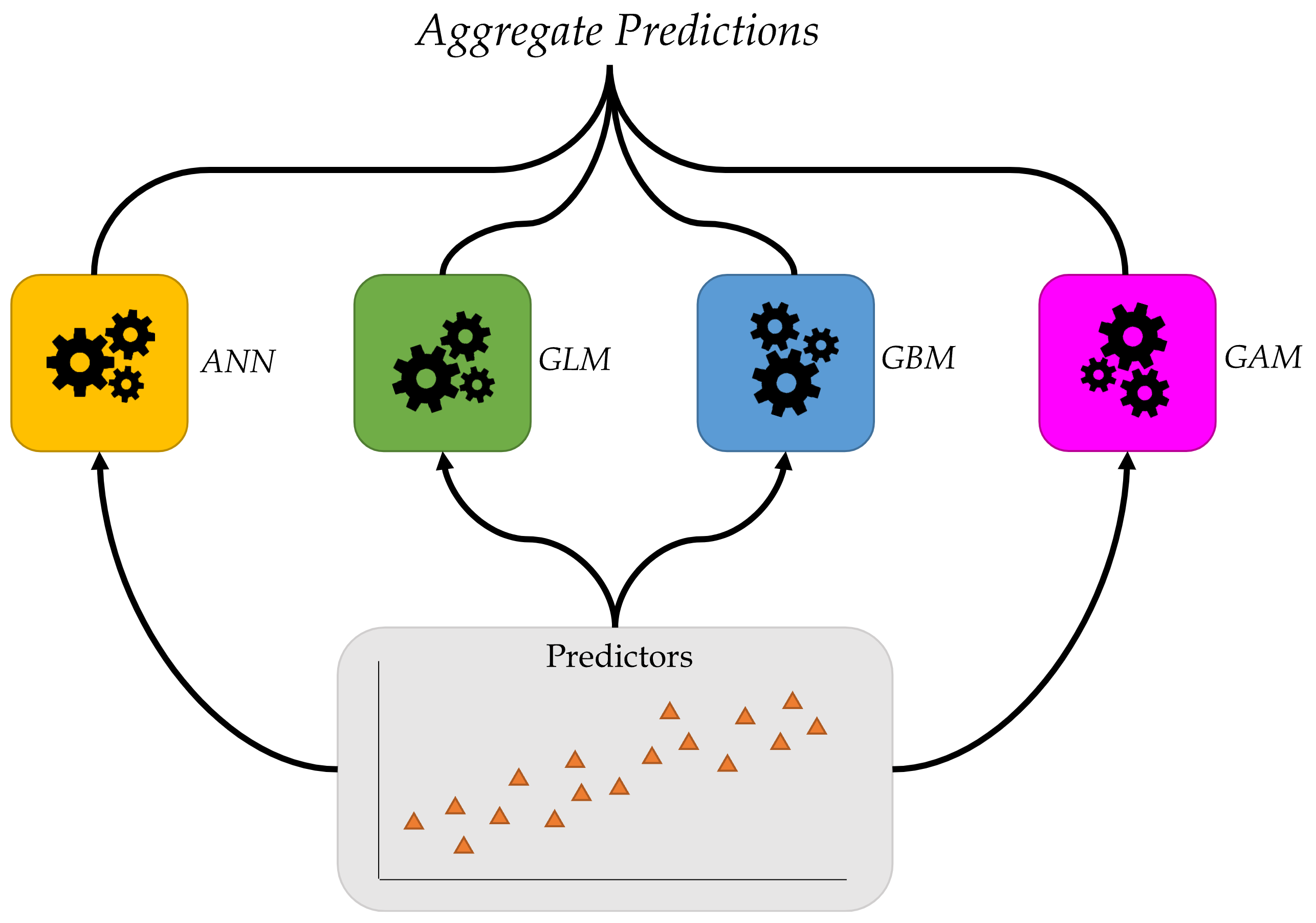

Ensemble learning: combine predictions from multiple models.

Source: Marcus Lautier (2022).

Deep Ensembles

Train M neural networks with different random initial weights independently (even in parallel).

def build_model(seed):
1    random.seed(seed)
    model = Sequential([
        Dense(30, activation="leaky_relu"),
        Dense(1, activation="exponential")
    ])
    model.compile("adam", "mse")

    es = EarlyStopping(restore_best_weights=True, patience=5)
    model.fit(X_train_sc, y_train, epochs=1_000,
2        callbacks=[es], validation_data=(X_val_sc, y_val), verbose=False)
    return model

1

Set random seed which is used for a single NN

2

Specify, compile and fit the NN as usual

The following code fits 3 neural networks with different starting weights and biases.

M = 3
seeds = range(M)
models = []
for seed in seeds:
    models.append(build_model(seed))

Deep Ensembles II

Say the trained weights for the NNs are \boldsymbol{w}^{(1)}, \ldots, \boldsymbol{w}^{(M)}, then we get predictions \bigl\{ \hat{y}(\boldsymbol{x}; \boldsymbol{w}^{(m)}) \bigr\}_{m=1}^{M}

y_preds = []
for model in models:
    y_preds.append(model.predict(X_test_sc, verbose=0))

y_preds = np.array(y_preds)
y_preds

array([[[3.36],
        [0.79],
        [2.33],
        ...,
        [2.42],
        [2.43],
        [1.09]],

       [[1.66],
        [1.13],
        [1.72],
        ...,
        [1.91],
        [1.94],
        [2.34]],

       [[2.94],
        [0.92],
        [2.41],
        ...,
        [2.26],
        [2.54],
        [1.31]]], shape=(3, 4128, 1), dtype=float32)

Now that we have multiple predictions for each NN, we can obtain a distribution of the predictions. The distribution helps us to understand how uncertain our predictions are. Some architectures are more sensitive to the starting weights than others; this would be reflected in the prediction uncertainty.

References

Al-Mudafer, M. T., Avanzi, B., Taylor, G., & Wong, B. (2022). Stochastic loss reserving with mixture density neural networks. Insurance: Mathematics and Economics, 105, 144–174.

Avanzi, B., Dong, E. T., Laub, P. J., & Wong, B. (2026). Distributional refinement network: Distributional forecasting via deep learning. Insurance: Mathematics and Economics, 128, 103246.

Bishop, C. M. (1994). Mixture density networks.

Delong, Ł., Lindholm, M., & Wüthrich, M. V. (2021). Gamma mixture density networks and their application to modelling insurance claim amounts. Insurance: Mathematics and Economics, 101, 240–261.

Guo, C., Pleiss, G., Sun, Y., & Weinberger, K. Q. (2017). On calibration of modern neural networks. International Conference on Machine Learning, 1321–1330.

Nix, D. A., & Weigend, A. S. (1994). Estimating the mean and variance of the target probability distribution. Proceedings of 1994 Ieee International Conference on Neural Networks (ICNN’94), 1, 55–60.

Schelldorfer, J., & Wüthrich, M. V. (2019). Nesting classical actuarial models into neural networks. Available at SSRN 3320525.

Tran, M.-N., Nguyen, N., Nott, D., & Kohn, R. (2020). Bayesian deep net GLM and GLMM. Journal of Computational and Graphical Statistics, 29(1), 97–113.

Package Versions

from watermark import watermark
print(watermark(python=True, packages="keras,matplotlib,numpy,pandas,seaborn,scipy,torch,drn"))

Python implementation: CPython
Python version       : 3.14.5
IPython version      : 9.15.0

keras     : 3.15.0
matplotlib: 3.11.0
numpy     : 2.5.0
pandas    : 3.0.3
seaborn   : 0.13.2
scipy     : 1.18.0
torch     : 2.12.1
drn       : 1.0.0

Glossary

• aleatoric and epistemic uncertainty
• Combined Actuarial Neural Network
• Deep GLM
• Deep Ensembles
• distributional forecasts

• Distributional Refinement Network
• dropout
• Mixture Density Network
• mixture distribution
• Monte Carlo dropout
