Preprocessing

ACTL3143 & ACTL5111 Deep Learning for Actuaries

Author

Patrick Laub

Deep learning project life cycle

  1. Define objectives
  2. Collect & label data
  3. Clean & preprocess data (opt. feature engineering)
  4. Design network architecture
  5. Train and validate model
  6. Hyperparameter tuning
  7. Test and evaluate performance
  8. Deploy to production
  9. Monitor and iterate

(We won’t cover the italicised items in this course, though they are very important.)

Overview

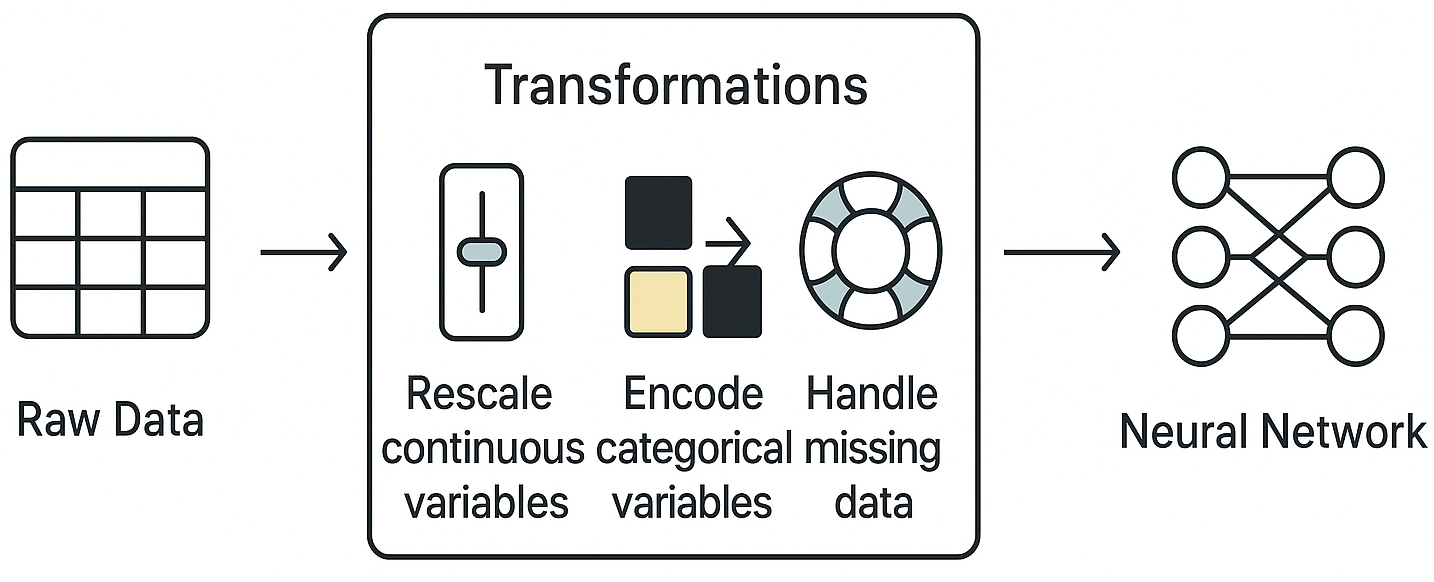

Preprocessing refers to the transformations of the raw data before input to the network. Some steps are specific to neural networks (e.g. standardising continuous variables), others are necessary for every model (e.g. encoding categorical variables, handling missing data).

Imports needed for these demos

import random
from pathlib import Path

import joblib
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

from keras.models import Sequential
from keras.layers import Dense, Input
from keras.callbacks import EarlyStopping

import sklearn
from sklearn import set_config
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import OneHotEncoder, OrdinalEncoder, StandardScaler
from sklearn.impute import SimpleImputer
from sklearn.compose import make_column_transformer
from sklearn.pipeline import make_pipeline
from sklearn.linear_model import LinearRegression

Standardising the Numerical Covariates

California housing dataset

features, target = sklearn.datasets.fetch_california_housing(
    as_frame=True, return_X_y=True)
features
MedInc HouseAge AveRooms AveBedrms Population AveOccup Latitude Longitude
0 8.3252 41.0 6.984127 1.023810 322.0 2.555556 37.88 -122.23
1 8.3014 21.0 6.238137 0.971880 2401.0 2.109842 37.86 -122.22
... ... ... ... ... ... ... ... ...
20638 1.8672 18.0 5.329513 1.171920 741.0 2.123209 39.43 -121.32
20639 2.3886 16.0 5.254717 1.162264 1387.0 2.616981 39.37 -121.24

20640 rows × 8 columns

Pandas will assign or guess dtypes

Can look at the data types of the features.

features.info()
<class 'pandas.DataFrame'>
RangeIndex: 20640 entries, 0 to 20639
Data columns (total 8 columns):
 #   Column      Non-Null Count  Dtype
---  ------      --------------  -----
 0   MedInc      20640 non-null  float64
 1   HouseAge    20640 non-null  float64
 2   AveRooms    20640 non-null  float64
 3   AveBedrms   20640 non-null  float64
 4   Population  20640 non-null  float64
 5   AveOccup    20640 non-null  float64
 6   Latitude    20640 non-null  float64
 7   Longitude   20640 non-null  float64
dtypes: float64(8)
memory usage: 1.3 MB

Here, all the features were continuous variables

Pandas can guess wrong though

For example, Australian postcodes are four digits and some start with 0 (e.g. Darwin is 0800). A CSV reader just sees digits, guesses a number, and silently drops the leading zero — giving the column the wrong type and the wrong value.

The raw file keeps the leading zero:

print(Path("data/postcodes.csv").read_text())
suburb,postcode
Darwin,0800
Sydney,2000
Perth,6000

Default inference:

df = pd.read_csv("data/postcodes.csv")
df
suburb postcode
0 Darwin 800
1 Sydney 2000
2 Perth 6000
df.dtypes
suburb        str
postcode    int64
dtype: object

Typed at read time:

df = pd.read_csv("data/postcodes.csv",
    dtype={"postcode": "string"})
df
suburb postcode
0 Darwin 0800
1 Sydney 2000
2 Perth 6000
df.dtypes
suburb         str
postcode    string
dtype: object

The fix is to declare the type as you read the data, e.g. pd.read_csv(..., dtype={"postcode": "string"}) (or "category"), with parse_dates=[...] for any date columns. Fixing types at the point of ingestion is the cleanest place to do it: it preserves the leading zeros, it would raise an error if a value were not a valid number where one is expected, and every downstream step (plots, groupby, the column transformer) then sees the correct type. Don’t rely on the dtype alone to choose a feature’s modelling role, though — a binary 0/1 flag, a count, and an ID column are all integers, so the nominal/ordinal/continuous decision still belongs in your column transformer.

Splitting into train, validation and test sets

X_main, X_test_raw, y_main, y_test = train_test_split(
    features, target, test_size=0.2, random_state=1
)
X_train_raw, X_val_raw, y_train, y_val = train_test_split(
    X_main, y_main, test_size=0.25, random_state=1
)

Note that we really cannot allow there to be duplicate rows in the training, validation, or test sets. If there are, we will have data leakage between the sets, which will lead to overfitting and poor generalisation.

Checking for leaks

We can look for rows that appear in multiple of the datasets.

train_val_overlap = pd.merge(X_train_raw, X_val_raw, how='inner')
train_test_overlap = pd.merge(X_train_raw, X_test_raw, how='inner')
val_test_overlap = pd.merge(X_val_raw, X_test_raw, how='inner')

print(f"Number of duplicated rows between train and val: {len(train_val_overlap)}")
print(f"Number of duplicated rows between train and test: {len(train_test_overlap)}")
print(f"Number of duplicated rows between val and test: {len(val_test_overlap)}")
Number of duplicated rows between train and val: 0
Number of duplicated rows between train and test: 0
Number of duplicated rows between val and test: 0

An earlier check is to check that there are no duplicate rows in the dataset.

features.duplicated().sum()
np.int64(0)

We rescaled every column

scaler = StandardScaler()
scaler.fit(X_train_raw)

X_train = scaler.transform(X_train_raw)
X_val = scaler.transform(X_val_raw)
X_test = scaler.transform(X_test_raw)

X_train
array([[ 0.15, -0.76,  0.26, ..., -0.01, -0.47,  0.69],
       [-1.79, -1.48,  0.48, ..., -0.08, -0.44,  1.33],
       [-0.97, -0.13, -0.67, ...,  0.05, -0.86,  0.65],
       ...,
       [ 0.11, -0.84, -0.54, ..., -0.03, -0.81,  0.6 ],
       [-0.82,  0.99, -0.03, ..., -0.03,  0.54, -0.11],
       [ 0.9 , -1.56,  0.66, ...,  0.07, -0.75,  0.97]], shape=(12384, 8))

That is because the neural network expects continuous inputs to be normalised to help with the training procedure.

Basically, the initial starting point for the network is random weights and biases that assume a (roughly) standard normal kind of input, to keep the inner neuron values from overflowing or underflowing.

Note

Notice that the output of X_train here looks a bit different to X_train_raw earlier? We’ll touch on this in a couple of slides.

Scikit-learn preprocessing methods

  • fit: learn the parameters of the transformation
  • transform: apply the transformation
  • fit_transform: learn the parameters and apply the transformation
scaler = StandardScaler()
scaler.fit(X_train_raw)
X_train = scaler.transform(X_train_raw)
X_val = scaler.transform(X_val_raw)
X_test = scaler.transform(X_test_raw)

print(X_train.mean(axis=0))
print(X_train.std(axis=0))
print(X_val.mean(axis=0))
print(X_val.std(axis=0))
[ 1.14e-16 -1.08e-16 -2.82e-16 -4.45e-17 -6.89e-18 -4.02e-17  1.14e-15
  1.75e-15]
[1. 1. 1. 1. 1. 1. 1. 1.]
[ 0.01  0.01  0.   -0.01 -0.    0.01  0.   -0.01]
[1.01 1.   0.81 0.81 0.98 0.84 0.99 1.  ]
scaler = StandardScaler()
X_train = scaler.fit_transform(X_train_raw)
X_val = scaler.transform(X_val_raw)
X_test = scaler.transform(X_test_raw)

print(X_train.mean(axis=0))
print(X_train.std(axis=0))
print(X_val.mean(axis=0))
print(X_val.std(axis=0))
[ 1.14e-16 -1.08e-16 -2.82e-16 -4.45e-17 -6.89e-18 -4.02e-17  1.14e-15
  1.75e-15]
[1. 1. 1. 1. 1. 1. 1. 1.]
[ 0.01  0.01  0.   -0.01 -0.    0.01  0.   -0.01]
[1.01 1.   0.81 0.81 0.98 0.84 0.99 1.  ]

Notice that when using fit_transform, this function is only used on the training set. Then, for the validation and test sets, the function transform is called, not fit_transform. It is important to make sure that the scaler is fitted using only the data from the train set, to avoid information leakage.

Dataframes & arrays

X_test_raw
MedInc HouseAge AveRooms AveBedrms Population AveOccup Latitude Longitude
4712 3.2500 39.0 4.503205 1.073718 1109.0 1.777244 34.06 -118.36
2151 1.9784 37.0 4.988584 1.038813 1143.0 2.609589 36.78 -119.78
... ... ... ... ... ... ... ... ...
6823 4.8750 42.0 5.347985 1.058608 829.0 3.036630 34.09 -118.10
11878 2.7054 52.0 5.741214 1.060703 905.0 2.891374 33.99 -117.38

4128 rows × 8 columns

X_test
array([[-0.33,  0.83, -0.34, ..., -0.11, -0.73,  0.6 ],
       [-1.  ,  0.67, -0.16, ..., -0.04,  0.54, -0.1 ],
       [ 0.07,  1.38, -0.35, ...,  0.06,  0.98, -1.42],
       ...,
       [ 0.62, -0.21, -0.16, ...,  0.05,  0.92, -1.4 ],
       [ 0.53,  1.07, -0.03, ..., -0.  , -0.72,  0.73],
       [-0.62,  1.86,  0.11, ..., -0.02, -0.77,  1.09]], shape=(4128, 8))
Note

By default, when you pass sklearn a DataFrame it returns a numpy array.

Keep as a DataFrame

From scikit-learn 1.2:

1set_config(transform_output="pandas")

2imp = SimpleImputer()

3X_train = imp.fit_transform(X_train_raw)
4X_val = imp.transform(X_val_raw)
5X_test = imp.transform(X_test_raw)
1
Tells sklearn that any transformed data should stay as pandas dataframes.
2
Defines the SimpleImputer. This function helps in dealing with missing values. Default is set to mean, meaning that, missing values in each column will be replaced with the column mean.
3
Finds the means of training set columns, and replaces train set missing values by those means.
4
Replace missing values in the validation set by the means of the training set columns.
5
Replace missing values in the test set by the means of the training set columns.




From SimpleImputer’s docs:

X_test
MedInc HouseAge AveRooms AveBedrms Population AveOccup Latitude Longitude
4712 3.2500 39.0 4.503205 1.073718 1109.0 1.777244 34.06 -118.36
2151 1.9784 37.0 4.988584 1.038813 1143.0 2.609589 36.78 -119.78
... ... ... ... ... ... ... ... ...
6823 4.8750 42.0 5.347985 1.058608 829.0 3.036630 34.09 -118.10
11878 2.7054 52.0 5.741214 1.060703 905.0 2.891374 33.99 -117.38

4128 rows × 8 columns

Replace missing values using a descriptive statistic (e.g. mean, median, or most frequent) along each column, or using a constant value… default=‘mean’

Handling Categorical Variables

French motor dataset

 # Download the dataset if we don't have it already.
1if not Path("data/freq_data.csv").exists():
2    freq = sklearn.datasets.fetch_openml(data_id=41214, as_frame=True).frame
3    freq.to_csv("data/freq_data.csv", index=False)
else:
4    freq = pd.read_csv("data/freq_data.csv")
freq.info()
1
Checks if the dataset does not already exist within the current directory.
2
Download the dataset from sklearn. The fetch_openml function allows the user to bring in the datasets available in the OpenML platform. Every dataset has a unique ID, hence, can be fetched by providing the ID. data_id of the French motor dataset is 41214.
3
Save it as a CSV file, so we don’t need to redownload it (slow!) next time.
4
If it already exists, then read the dataset from the CSV file.
<class 'pandas.DataFrame'>
RangeIndex: 678013 entries, 0 to 678012
Data columns (total 12 columns):
 #   Column      Non-Null Count   Dtype
---  ------      --------------   -----
 0   IDpol       678013 non-null  float64
 1   ClaimNb     678013 non-null  float64
 2   Exposure    678013 non-null  float64
 3   Area        678013 non-null  str
 4   VehPower    678013 non-null  float64
 5   VehAge      678013 non-null  float64
 6   DrivAge     678013 non-null  float64
 7   BonusMalus  678013 non-null  float64
 8   VehBrand    678013 non-null  str
 9   VehGas      678013 non-null  str
 10  Density     678013 non-null  float64
 11  Region      678013 non-null  str
dtypes: float64(8), str(4)
memory usage: 70.4 MB

The data

freq
IDpol ClaimNb Exposure Area VehPower VehAge DrivAge BonusMalus VehBrand VehGas Density Region
0 1.0 1.0 0.10000 D 5.0 0.0 55.0 50.0 B12 Regular 1217.0 R82
1 3.0 1.0 0.77000 D 5.0 0.0 55.0 50.0 B12 Regular 1217.0 R82
2 5.0 1.0 0.75000 B 6.0 2.0 52.0 50.0 B12 Diesel 54.0 R22
... ... ... ... ... ... ... ... ... ... ... ... ...
678010 6114328.0 0.0 0.00274 D 6.0 2.0 45.0 50.0 B12 Diesel 1323.0 R82
678011 6114329.0 0.0 0.00274 B 4.0 0.0 60.0 50.0 B12 Regular 95.0 R26
678012 6114330.0 0.0 0.00274 B 7.0 6.0 29.0 54.0 B12 Diesel 65.0 R72

678013 rows × 12 columns

Data dictionary

  • IDpol: policy number (unique identifier)
  • ClaimNb: number of claims on the given policy
  • Exposure: total exposure in yearly units
  • Area: area code (categorical, ordinal)
  • VehPower: power of the car (categorical, ordinal)
  • VehAge: age of the car in years
  • DrivAge: age of the (most common) driver in years
  • BonusMalus: bonus-malus level between 50 and 230 (with reference level 100)
  • VehBrand: car brand (categorical, nominal)
  • VehGas: diesel or regular fuel car (binary)
  • Density: of inhabitants per km2 in the city of the living place of the driver
  • Region: regions in France (prior to 2016)

Our target variable is the number of claims, ClaimNb.

Source: Nell et al. (2020), Case Study: French Motor Third-Party Liability Claims, SSRN.

We have \{ (\mathbf{x}_i, y_i) \}_{i=1, \dots, n} for \mathbf{x}_i \in \mathbb{R}^{p} and y_i \in \mathbb{N}_0. Assume the distribution Y_i \sim \mathsf{Poisson}(\lambda(\mathbf{x}_i))

We have \mathbb{E} Y_i = \lambda(\mathbf{x}_i). The NN takes \mathbf{x}_i & predicts \mathbb{E} Y_i.

freq = freq.drop("IDpol", axis=1)

While IDpol is a useful tool for checking duplicates, we remove it before beginning the modelling process.

Split the data

1X_train_raw, X_test_raw, y_train, y_test = train_test_split(
  freq.drop("ClaimNb", axis=1), freq["ClaimNb"], random_state=2023)
2X_train_raw = X_train_raw.reset_index(drop=True)
X_test_raw = X_test_raw.reset_index(drop=True)
X_train_raw
1
Splits the dataset into train and test sets. By setting the random_state to a specific number, we ensure the consistency in the train-test split. freq.drop("ClaimNb", axis=1) removes the “ClaimNb” column.
2
Resets the index of train set, and drops the previous index column. Since the index column will get shuffled during the train-test split, we may want to reset the index to start from 0 again.
Exposure Area VehPower VehAge DrivAge BonusMalus VehBrand VehGas Density Region
0 0.01 A 4.0 0.0 70.0 50.0 B12 Regular 37.0 R72
1 1.00 C 6.0 11.0 36.0 50.0 B3 Regular 119.0 R82
2 0.08 D 7.0 9.0 35.0 50.0 B2 Diesel 1326.0 R93
... ... ... ... ... ... ... ... ... ... ...
508506 0.22 E 7.0 21.0 32.0 90.0 B5 Regular 4128.0 R52
508507 1.00 C 7.0 15.0 51.0 50.0 B1 Regular 461.0 R53
508508 0.42 D 6.0 1.0 37.0 54.0 B2 Diesel 1284.0 R25

508509 rows × 10 columns

What values do we see in the data?

X_train_raw["Area"].value_counts()
X_train_raw["VehBrand"].value_counts()
X_train_raw["VehGas"].value_counts()
X_train_raw["Region"].value_counts()
Area
C    144156
D    113532
E    102791
A     78017
B     56571
F     13442
Name: count, dtype: int64
VehBrand
B12    124490
B1     122200
B2     120155
        ...
B11     10218
B13      9160
B14      2998
Name: count, Length: 11, dtype: int64
VehGas
Regular    259422
Diesel     249087
Name: count, dtype: int64
Region
R24    120597
R82     63555
R93     59627
        ...
R21      2283
R42      1634
R43      1024
Name: count, Length: 22, dtype: int64

data["column_name"].value_counts() function provides counts of each category for a categorical variable. In this dataset, variables Area and VehGas are assumed to have natural orderings (ordinal categorical variables) whereas VehBrand and Region are not considered to have such natural orderings (nominal categorical variables). Therefore, the two sets of categorical variables will have to be treated differently.

Nominal categorical variables

These are categorical variables which you cannot order in a ‘default’ sensible way.

There are two options for dealing with a nominal categorical variable:

  • One-hot encoding: one column for each category (taking the value 1 if true, 0 if false). Using this method, one of the columns is redundant.
  • Dummy encoding: drop the first of the one-hot encoding categories.
gas = X_train_raw[["VehGas"]]

The original data:


gas.head()
VehGas
0 Regular
1 Regular
2 Diesel
3 Regular
4 Diesel

One-hot encoding

enc = OneHotEncoder(sparse_output=False)

X_train = enc.fit_transform(gas)
X_train.head()
VehGas_Diesel VehGas_Regular
0 0.0 1.0
1 0.0 1.0
2 1.0 0.0
3 0.0 1.0
4 1.0 0.0

Dummy encoding

enc = OneHotEncoder(
    drop="first",
    sparse_output=False)
X_train = enc.fit_transform(gas)
X_train.head()
VehGas_Regular
0 1.0
1 1.0
2 0.0
3 1.0
4 0.0
Warning

Collinearity is not a big deal for neural networks. However if you want to reuse the same X_train data for a (generalised) linear regression, then you probably want to dummy-encode here to avoid needing two different preprocessing regimes for the two competing models.

Ordinal categorical variables

These are categorical variables which have a natural order to them.

OrdinalEncoder can assign numerical values to each category of the ordinal variable. The nice thing about OrdinalEncoder is that it can preserve the information about ordinal relationships in the data. To actually convert the values in the ordinal columns, we must also apply the enc.transform method. The following lines of code show how we consistently apply the transform function to both train and test sets. To avoid inconsistencies in encoding, we use enc.fit function only to the train set.

1enc = OrdinalEncoder()
2enc.fit(X_train_raw[["Area"]])
3enc.categories_
1
Create an OrdinalEncoder object named enc
2
Selects the two columns with ordinal variables from X_train and fits the ordinal encoder
3
Gives out the number of unique categories in each ordinal variable
[array(['A', 'B', 'C', 'D', 'E', 'F'], dtype=object)]
for i, area in enumerate(enc.categories_[0]):
    print(f"The Area value {area} gets turned into {i}.")
The Area value A gets turned into 0.
The Area value B gets turned into 1.
The Area value C gets turned into 2.
The Area value D gets turned into 3.
The Area value E gets turned into 4.
The Area value F gets turned into 5.
print(f"In other words, {' < '.join(enc.categories_[0])}, and ")
print(" = ".join(f"{r} - {l}" for l, r in zip(enc.categories_[0][:-1], enc.categories_[0][1:])))
In other words, A < B < C < D < E < F, and
B - A = C - B = D - C = E - D = F - E

Ordinal encoded values

Note that fitting an ordinal encoder (enc.fit) only establishes the mapping between numerical values and ordinal variable levels. To actually convert the values in the ordinal columns, we must also apply the enc.transform function. The following lines of code show how we consistently apply the transform function to both train and test sets. To avoid inconsistencies in encoding, we use enc.fit function only to the train set.

X_train = enc.transform(X_train_raw[["Area"]])
X_test = enc.transform(X_test_raw[["Area"]])
X_train_raw[["Area"]].head()
Area
0 A
1 C
2 D
3 E
4 B
X_train.head()
Area
0 0.0
1 2.0
2 3.0
3 4.0
4 1.0

We could train on this X_train, or on the previous X_train, but each only contains one feature from the dataset. How do we add the continuous variables back in? Use a sklearn column transformer for that.

Transform all columns in one hit I

1ct = make_column_transformer(
2  (OneHotEncoder(sparse_output=False, drop="first"), ["VehGas", "VehBrand", "Region"]),
3  (OrdinalEncoder(), ["Area"]),
4  remainder=StandardScaler()
)

5X_train = ct.fit_transform(X_train_raw)
1
Starts defining the column transformer object
2
Apply dummy encoding to the nominal categorical columns
3
Apply ordinal encoding to the ordinal categorical column
4
Standardise the remaining columns (which are all numerical)
5
Fits and transforms the train set using this new column transformer
X_train_raw
Exposure Area VehPower VehAge DrivAge BonusMalus VehBrand VehGas Density Region
0 0.01 A 4.0 0.0 70.0 50.0 B12 Regular 37.0 R72
... ... ... ... ... ... ... ... ... ... ...
508508 0.42 D 6.0 1.0 37.0 54.0 B2 Diesel 1284.0 R25

508509 rows × 10 columns

X_train
onehotencoder__VehGas_Regular onehotencoder__VehBrand_B10 onehotencoder__VehBrand_B11 onehotencoder__VehBrand_B12 onehotencoder__VehBrand_B13 onehotencoder__VehBrand_B14 onehotencoder__VehBrand_B2 onehotencoder__VehBrand_B3 onehotencoder__VehBrand_B4 onehotencoder__VehBrand_B5 ... onehotencoder__Region_R91 onehotencoder__Region_R93 onehotencoder__Region_R94 ordinalencoder__Area remainder__Exposure remainder__VehPower remainder__VehAge remainder__DrivAge remainder__BonusMalus remainder__Density
0 1.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 -1.424715 -1.196660 -1.245210 1.732277 -0.623438 -0.442987
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
508508 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 3.0 -0.299951 -0.221191 -1.068474 -0.602450 -0.367372 -0.127782

508509 rows × 39 columns

The default column names of X_train that the column transformer adds are a bit obscure/verbose. We can add the verbose_feature_names_out=False flag to have a cleaner X_train dataframe.

Transform all columns in one hit II

ct = make_column_transformer(
  (OneHotEncoder(sparse_output=False, drop="first"), ["VehGas", "VehBrand", "Region"]),
  (OrdinalEncoder(), ["Area"]),
  remainder=StandardScaler(),
  verbose_feature_names_out=False
)
X_train = ct.fit_transform(X_train_raw)
X_train_raw
Exposure Area VehPower VehAge DrivAge BonusMalus VehBrand VehGas Density Region
0 0.01 A 4.0 0.0 70.0 50.0 B12 Regular 37.0 R72
... ... ... ... ... ... ... ... ... ... ...
508508 0.42 D 6.0 1.0 37.0 54.0 B2 Diesel 1284.0 R25

508509 rows × 10 columns

X_train
VehGas_Regular VehBrand_B10 VehBrand_B11 VehBrand_B12 VehBrand_B13 VehBrand_B14 VehBrand_B2 VehBrand_B3 VehBrand_B4 VehBrand_B5 ... Region_R91 Region_R93 Region_R94 Area Exposure VehPower VehAge DrivAge BonusMalus Density
0 1.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 -1.424715 -1.196660 -1.245210 1.732277 -0.623438 -0.442987
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
508508 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 3.0 -0.299951 -0.221191 -1.068474 -0.602450 -0.367372 -0.127782

508509 rows × 39 columns

An important thing to notice here is that the order of columns has changed. They are rearranged according to the order in which we specify the transformations inside the column transformer.

Aside: The order of the variables matters

Sometimes the ordinal categories are named with words, such as “Low”, “Medium”, “High” (rather than, for example, “A”, “B”, “C”). The ordinal encoder does not know how to read these and orders the categories based on alphabetical order.

X_train_raw["Area_In_Words"] = X_train_raw["Area"].map({
    "A": "Very low", "B": "Low", "C": "Medium",
    "D": "High", "E": "Very high", "F": "Extremely high"
})
enc_wrong = OrdinalEncoder()
enc_wrong.fit(X_train_raw[["Area_In_Words"]])
enc_wrong.categories_
[array(['Extremely high', 'High', 'Low', 'Medium', 'Very high', 'Very low'],
       dtype=object)]
for i, area in enumerate(enc_wrong.categories_[0]):
    print(f"The Area value {area} gets turned into {i}.")
The Area value Extremely high gets turned into 0.
The Area value High gets turned into 1.
The Area value Low gets turned into 2.
The Area value Medium gets turned into 3.
The Area value Very high gets turned into 4.
The Area value Very low gets turned into 5.
print(f"In other words, {' < '.join(enc_wrong.categories_[0])}.")
In other words, Extremely high < High < Low < Medium < Very high < Very low.

Aside: Manually set the order

To fix this issue, we need to manually set the order.

ordered = [["Very low", "Low", "Medium", "High", "Very high", "Extremely high"]]
enc_right = OrdinalEncoder(categories=ordered)
enc_right.fit(X_train_raw[["Area_In_Words"]])
enc_right.categories_
[array(['Very low', 'Low', 'Medium', 'High', 'Very high', 'Extremely high'],
       dtype=object)]
for i, area in enumerate(enc_right.categories_[0]):
    print(f"The Area value {area} gets turned into {i}.")
The Area value Very low gets turned into 0.
The Area value Low gets turned into 1.
The Area value Medium gets turned into 2.
The Area value High gets turned into 3.
The Area value Very high gets turned into 4.
The Area value Extremely high gets turned into 5.
print(f"In other words, {' < '.join(enc_right.categories_[0])}.")
In other words, Very low < Low < Medium < High < Very high < Extremely high.
X_train_raw = X_train_raw.drop("Area_In_Words", axis=1)

Missing Values and Rare Observations

Stroke prediction dataset

Dataset source: Kaggle Stroke Prediction Dataset.

RAW_DATA_DIR = Path("stroke/raw")
data = pd.read_csv(RAW_DATA_DIR / "stroke.csv")
data.head()
id gender age hypertension heart_disease ever_married work_type Residence_type avg_glucose_level bmi smoking_status stroke
0 9046 Male 67.0 0 1 Yes Private Urban 228.69 36.6 formerly smoked 1
1 51676 Female 61.0 0 0 Yes Self-employed Rural 202.21 NaN never smoked 1
2 31112 Male 80.0 0 1 Yes Private Rural 105.92 32.5 never smoked 1
3 60182 Female 49.0 0 0 Yes Private Urban 171.23 34.4 smokes 1
4 1665 Female 79.0 1 0 Yes Self-employed Rural 174.12 24.0 never smoked 1

Data description

  1. id: unique identifier
  2. gender: “Male”, “Female” or “Other”
  3. age: age of the patient
  4. hypertension: 0 or 1 if the patient has hypertension
  5. heart_disease: 0 or 1 if the patient has any heart disease
  6. ever_married: “No” or “Yes”
  7. work_type: “children”, “Govt_job”, “Never_worked”, “Private” or “Self-employed”
  1. Residence_type: “Rural” or “Urban”
  2. avg_glucose_level: average glucose level in blood
  3. bmi: body mass index
  4. smoking_status: “formerly smoked”, “never smoked”, “smokes” or “Unknown”
  5. stroke: 0 or 1 if the patient had a stroke

Target: stroke.

Source: Kaggle, Stroke Prediction Dataset.

Look for missing values and split the data

First, look for missing values.

number_missing = data.isna().sum()
number_missing[number_missing > 0]
bmi    201
dtype: int64
Tip

Always take a look at the missing data in, say, Excel. Sometimes pandas reads in a category like “None” and interprets that as a missing value, when it’s really a valid category. This happened to me just the other day.

features = data.drop(["id", "stroke"], axis=1)
target = data["stroke"]

X_main_raw, X_test_raw, y_main, y_test = train_test_split(
    features, target, test_size=0.2, random_state=7)
X_train_raw, X_val_raw, y_train, y_val = train_test_split(
    X_main_raw, y_main, test_size=0.25, random_state=12)

X_train_raw.shape, X_val_raw.shape, X_test_raw.shape
((3066, 10), (1022, 10), (1022, 10))

What values do we see in the data?

X_train_raw["gender"].value_counts()
gender
Female    1802
Male      1264
Name: count, dtype: int64
X_train_raw["ever_married"].value_counts()
ever_married
Yes    2007
No     1059
Name: count, dtype: int64
X_train_raw["Residence_type"].value_counts()
Residence_type
Urban    1536
Rural    1530
Name: count, dtype: int64
X_train_raw["work_type"].value_counts()
work_type
Private          1754
Self-employed     490
children          419
Govt_job          390
Never_worked       13
Name: count, dtype: int64
X_train_raw["smoking_status"].value_counts()
smoking_status
never smoked       1130
Unknown             944
formerly smoked     522
smokes              470
Name: count, dtype: int64

Group sparse categories

Look for sparse categories. One common trick is to lump together all the small categories (e.g. < 5% or 10% each) into a new combined ‘OTHER’ or ‘RARE’ category. The OneHotEncoder can group infrequent levels for us.

X_train_raw["work_type"].value_counts()
work_type
Private          1754
Self-employed     490
children          419
Govt_job          390
Never_worked       13
Name: count, dtype: int64

Lump together any level below 5% of the rows:

enc = OneHotEncoder(sparse_output=False,
    min_frequency=0.05)
ohe = enc.fit_transform(X_train_raw[["work_type"]])
enc.infrequent_categories_
[array(['Never_worked'], dtype=object)]
ohe.head(3)
work_type_Govt_job work_type_Private work_type_Self-employed work_type_children work_type_infrequent_sklearn
1914 0.0 1.0 0.0 0.0 0.0
1958 0.0 0.0 0.0 1.0 0.0
2920 0.0 1.0 0.0 0.0 0.0

Keep the most common levels, capping the column count:

enc = OneHotEncoder(sparse_output=False,
    max_categories=3)
ohe = enc.fit_transform(X_train_raw[["work_type"]])
enc.infrequent_categories_
[array(['Govt_job', 'Never_worked', 'children'], dtype=object)]
ohe.head(3)
work_type_Private work_type_Self-employed work_type_infrequent_sklearn
1914 1.0 0.0 0.0
1958 0.0 0.0 1.0
2920 1.0 0.0 0.0

The lumped levels are combined into a single work_type_infrequent_sklearn column, and the infrequent_categories_ attribute records exactly which levels were grouped. Use min_frequency to set the threshold below which a level is treated as infrequent (an integer count, or a float proportion of the rows), or max_categories to cap the total number of output columns. Because the encoder learns the rare levels from the training set only, this avoids the data leakage you could accidentally introduce by hand-coding the grouping yourself. It also composes with handle_unknown="infrequent_if_exist", which sends any unseen category at test time into the same infrequent column.

Make a plan for preprocessing each column

  1. Take categorical columns \hookrightarrow one-hot vectors
  2. binary columns \hookrightarrow do nothing (already 0 & 1)
  3. continuous columns \hookrightarrow impute NaNs & standardise.

Make the column transformer

1nom_vars =  ["gender", "ever_married", "Residence_type",
    "work_type", "smoking_status"]

ct = make_column_transformer(
2  (OneHotEncoder(sparse_output=False, handle_unknown="ignore"), nom_vars),
3  ("passthrough", ["hypertension", "heart_disease"]),
4  remainder=make_pipeline(SimpleImputer(), StandardScaler()),
  verbose_feature_names_out=False
)

X_train = ct.fit_transform(X_train_raw)
X_val = ct.transform(X_val_raw)
X_test = ct.transform(X_test_raw)

5for name, X in zip(("train", "val", "test"), (X_train, X_val, X_test)):
    num_na = pd.DataFrame(X).isna().sum().sum()
    print(f"The {name} set has shape {X.shape} & with {num_na} NAs.")
1
Stores categorical variables in nom_vars
2
Specifies the one-hot encoding for all categorical variables. We set the sparse_output=False, to return a dense array rather than a sparse matrix. handle_unknown specifies how the neural network should handle unseen categories. By setting handle_unknown="ignore", we instruct the neural network to ignore categories that were not seen during training. If we did not do this, it would interrupt the model’s operation after deployment
3
Passes through hypertension and heart_disease without any preprocessing
4
Makes a pipeline that first applies SimpleImputer() to replace missing values with the mean and then applies StandardScaler() to scale the numerical values
5
Prints out the missing values to ensure the SimpleImputer() has worked
The train set has shape (3066, 20) & with 0 NAs.
The val set has shape (1022, 20) & with 0 NAs.
The test set has shape (1022, 20) & with 0 NAs.

Handling unseen categories

X_train_raw["gender"].value_counts()
gender
Female    1802
Male      1264
Name: count, dtype: int64
X_val_raw["gender"].value_counts()
gender
Female    615
Male      406
Other       1
Name: count, dtype: int64

Because of the way the train and test sets were split, the one-hot encoder could not pick up on the third category. This could interrupt the model performance. To avoid such confusions, we could either give instructions manually on how to tackle unseen categories. An example is given below. In the second row, the values given for gender_Female and gender_Male are both 0, implying a third category.

ind = np.argmax(X_val_raw["gender"] == "Other")
X_val_raw.iloc[ind-1:ind+3][["gender"]]
gender
4970 Male
3116 Other
4140 Male
2505 Female
gender_cols = pd.DataFrame(X_val)[["gender_Female", "gender_Male"]]
gender_cols.iloc[ind-1:ind+3]
gender_Female gender_Male
4970 0.0 1.0
3116 0.0 0.0
4140 0.0 1.0
2505 1.0 0.0

However, to give such instructions on handling unseen categories, we would first have to know what those possible categories could be. We should also have specific knowledge on what value to assign in case they come up during model performance. One easy way to tackle it would be to use handle_unknown="ignore" during encoding, as mentioned before.

Handling unseen categories II

This was caused by fitting the encoder on the X_train which, by bad luck, didn’t have the “Other” category. Why not just read the entire dataset before splitting to collect all the values the categorical variables could take?

It’s a very mild form of data leakage, though it may be justifiable in some cases. If we made the datasets, we’d have a better idea of whether it makes sense on a case-by-case basis. We struggle here as we (in this course) are just analysing datasets which we didn’t collect.

Procedures to Keep Your Data Organised

Directory structure

A popular convention (from Cookiecutter Data Science) splits data/ by how far along the data is:

data/
├── raw/        # original, never edited
├── interim/    # cleaned, still readable
└── processed/  # final, model-ready
  • raw/ is immutable — never overwrite it, so the whole pipeline can always be rebuilt from scratch.
  • interim/ is data that can be recreated from raw & a preprocessing script.
  • processed/ is what the model loads: split, encoded and scaled.

interim/ holds data that is nearly model-ready but still human-readable — after cleaning, joining and splitting, but before rescaling strips the units and one-hot encoding turns everything into a wall of 0s and 1s.

  • You can open it and eyeball it: ages still look like ages, premiums still in dollars.
  • It caches slow steps (parsing, joining, geocoding) so tweaking the final features doesn’t re-run them.
  • It keeps processed/ unambiguous — one obvious file per train/validation/test split.

Save the preprocessed data to files

PROCESSED_DATA_DIR = Path("stroke/processed")
PROCESSED_DATA_DIR.mkdir(parents=True, exist_ok=True)

X_train.to_csv(PROCESSED_DATA_DIR / "x_train.csv", index=False)
X_val.to_csv(PROCESSED_DATA_DIR / "x_val.csv", index=False)
X_test.to_csv(PROCESSED_DATA_DIR / "x_test.csv", index=False)
y_train.to_csv(PROCESSED_DATA_DIR / "y_train.csv", index=False)
y_val.to_csv(PROCESSED_DATA_DIR / "y_val.csv", index=False)
y_test.to_csv(PROCESSED_DATA_DIR / "y_test.csv", index=False)

Keep the preprocessor around

Later want to make a prediction on some new data point. It has to go through the exact same preprocessing steps.

We can save the preprocessing column transformer and save it to a file to use later.

joblib.dump(ct, PROCESSED_DATA_DIR / "preprocessor.pkl")
preprocessor = joblib.load(PROCESSED_DATA_DIR / "preprocessor.pkl")
X_test_raw.head(1)
gender age hypertension heart_disease ever_married work_type Residence_type avg_glucose_level bmi smoking_status
2804 Female 69.0 0 0 Yes Govt_job Rural 70.98 30.0 Unknown
new_data = X_test_raw.head(1).copy()
new_data["ever_married"] = "No" # Let's pretend this is the new data point
ct.transform(new_data)
gender_Female gender_Male ever_married_No ever_married_Yes Residence_type_Rural Residence_type_Urban work_type_Govt_job work_type_Never_worked work_type_Private work_type_Self-employed work_type_children smoking_status_Unknown smoking_status_formerly smoked smoking_status_never smoked smoking_status_smokes hypertension heart_disease age avg_glucose_level bmi
2804 1.0 0.0 1.0 0.0 1.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0 0 1.154917 -0.778758 0.147508
preprocessor.transform(new_data)
gender_Female gender_Male ever_married_No ever_married_Yes Residence_type_Rural Residence_type_Urban work_type_Govt_job work_type_Never_worked work_type_Private work_type_Self-employed work_type_children smoking_status_Unknown smoking_status_formerly smoked smoking_status_never smoked smoking_status_smokes hypertension heart_disease age avg_glucose_level bmi
2804 1.0 0.0 1.0 0.0 1.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0 0 1.154917 -0.778758 0.147508

Glossary

  • column transformer
  • nominal variables
  • ordinal variables
  • one-hot encoding
  • missing values
  • imputation
  • raw / interim / processed data
  • standardisation
